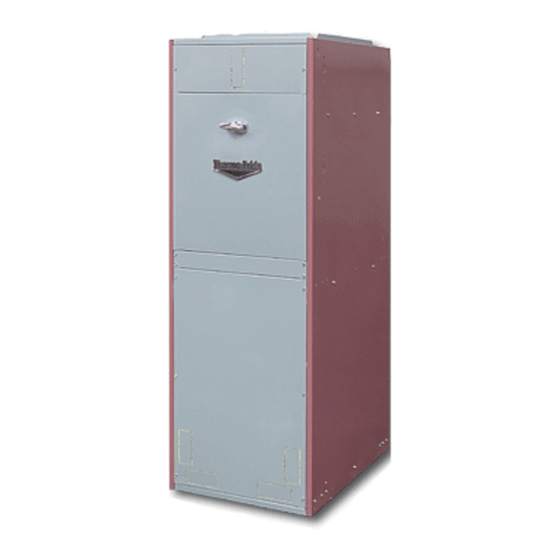

Thermo Pride AH2436AE1 Installation & Service Manual

13 & 14 seer air handler
Hide thumbs
Table of Contents

Advertisement

Quick Links

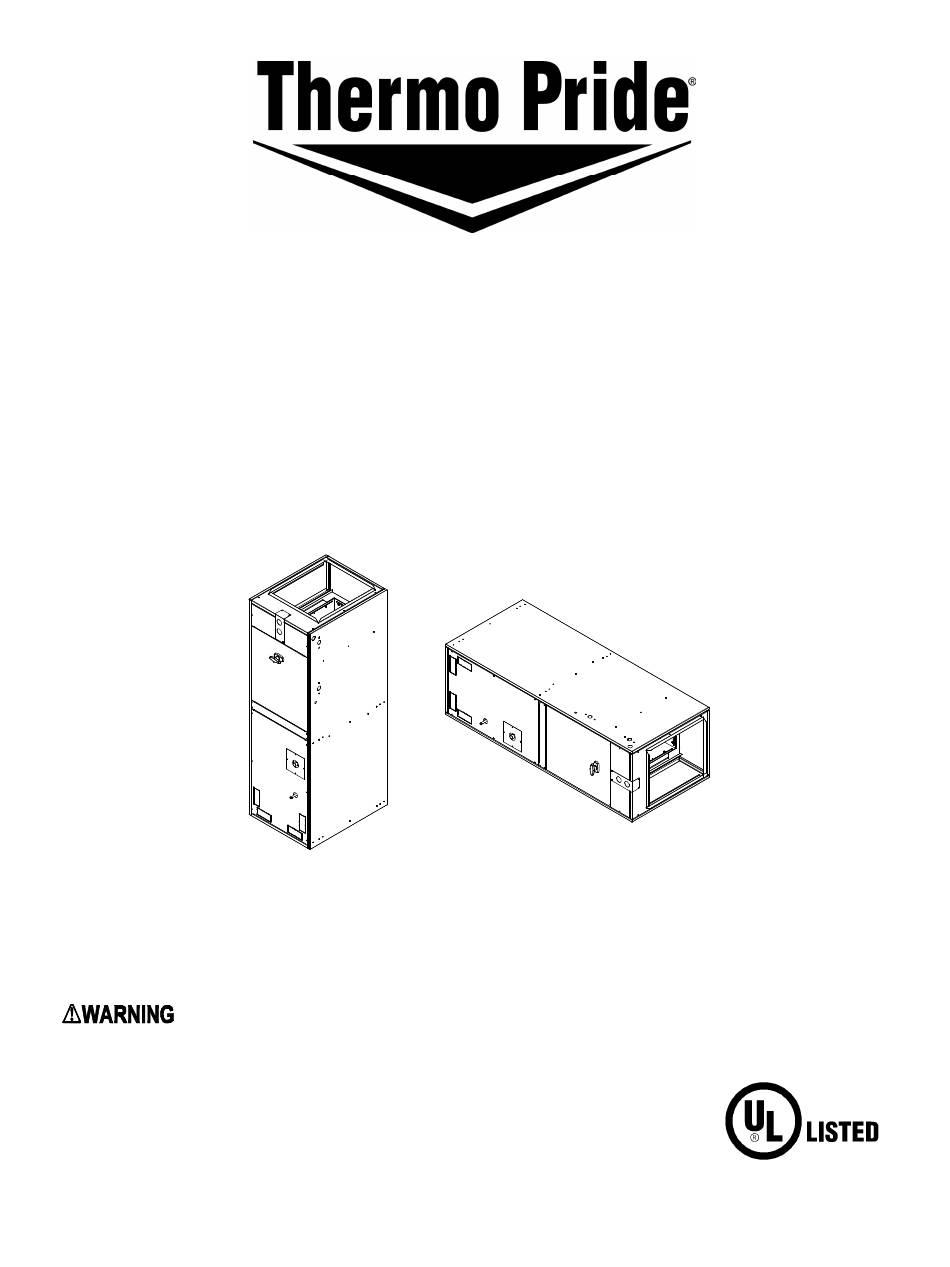

INSTALLATION & SERVICE MANUAL
PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND BEFORE
PERFORMING ANY SERVICE OR MAINTENANCE. THESE INSTRUCTIONS MUST
BE LEFT WITH THE USER AND SHOULD BE RETAINED FOR FUTURE
REFERENCE BY QUALIFIED SERVICE PERSONNEL.
: Improper installation, adjustment, alteration, service, or maintenance can
cause injury or property damage. Refer to this manual. For assistance or additional
information consult a qualified installer, service agency, or manufacturer listed below.
MAC-202
ECN 5577-MA 190924
13 & 14 SEER
AIR HANDLER
MODELS: AH2436AE1, AH4260AE1,
AH2436BE1, AH4260BE1
THERMO PRODUCTS, LLC.
BOX 237
DENTON, NC 27239
PHONE: 800-476-4328
MADE IN USA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AH2436AE1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Thermo Pride AH2436AE1

  • Page 1 13 & 14 SEER AIR HANDLER INSTALLATION & SERVICE MANUAL MODELS: AH2436AE1, AH4260AE1, AH2436BE1, AH4260BE1 PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND BEFORE PERFORMING ANY SERVICE OR MAINTENANCE. THESE INSTRUCTIONS MUST BE LEFT WITH THE USER AND SHOULD BE RETAINED FOR FUTURE REFERENCE BY QUALIFIED SERVICE PERSONNEL.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS SECTION BEGINNING PAGE SAFETY SECTION KNOCKDOWN OF AIR HANDLER REASSEMBLY OF AIR HANDLER SETTING UP THE A-COIL FOR AIR CONDITIONING COUNTERFLOW ORIENTATION INSTALLATION OF HOT WATER COIL BLOWER AIR ADJUSTMENT DUCT SYSTEM DUCT SIZING CHART INDOOR EVAPORATOR COIL TUBING LINE SETS HOW TO MEASURE LIQUID SUB-COOLING MEASURING TEMPERATURE DROP ACROSS THE “A”...

  • Page 4: Safety Section

    SAFETY SECTION This page contains various warnings and cautions found throughout this Service and Installation Manual. Please read and comply with the statements on the cover and the statements below. : Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage.

  • Page 5: Knockdown Of Air Handler

    AIR HANDLER Each air handler is shipped with an evaporator coil preinstalled. The AH2436A(B)E1 is shipped with a 13U2436AB14 evaporator coil for 2 to 3 ton operation. The AH4260A(B)E1is shipped with a 13U4848AH20 evaporator coil for 3 to 5 ton operation. The construction of the air handler permits easy knockdown and reassembly.

  • Page 6: Reassembly Of Air Handler

    8. Remove the screws that secure the blower assembly to the blower pan and pull blower sub-assembly out the front of the unit. 9. Remove screws that secure the blower pan to the side & rear casings. 10. Push the front edges of the side casings slightly apart and remove the blower pan. 11.

  • Page 7: Setting Up The A-Coil For Air Conditioning

    Figure B. FOLLOW THESE STEPS FOR KNOCKDOWN OF AH4260 1. Start with unit setting in a vertical position (Figure B). 2. Remove the blower access door and front A-coil access panel. 3. Remove front tie panel (four screws). 4. Remove four screws between left/right side blower module casings and left/right side coil module casings.
  • Page 8 For a right to left horizontal air flow the following steps 1-7 must be followed. Otherwise skip to step 8. Reversing the horizontal orientation 1. Remove the front a-coil access panel of the air handler. 2. Remove the front a-coil drain pan retainer. 3.

  • Page 9: Counterflow Orientation

    14. Make appropriate condensate drain connections and seal the access opening. For counterflow orientations: Figure D To convert AH2436 to counterflow: 1. Remove front A-coil access panel 2. Remove front a-coil drain pan retainer and the horizontal drain pan support shipping screws from the right side casing.
  • Page 10 Figure E To convert AH4260 to counterflow: 1. Remove the blower access door and front a-coil access panel. 2. Remove front tie panel (four screws). 3. Remove four screws between left/right side blower module casings and left/right side coil module casings.

  • Page 11: Installation Of Hot Water Coil

    INSTALLATION OF THE HOT WATER COIL: 1. Remove top door of air handler. 2. Slide hot water coil's side hanger brackets into coil channel (retaining channel) in the air handler. See Figure F. 3. Push coil into unit until the coil is stopped by the back casing. 4.

  • Page 12: Blower Air Adjustment

    Figure G NOTE: Drain lines must be pitched no less than 1/4" per foot away from the air handler. BLOWER AIR ADJUSTMENT The ECM blower control must be set in order to establish proper air movement. Use the following steps to do this: 1.
  • Page 13 BLOWER COOLING SPEEDS Refer Table C1 for setting switches 4, 5 & 6 for the A/C sizing. Table C1 COOLING SWITCH SETTINGS AH2436A/BE1 COOL AH4260A/BE1 COOL Settings (SW1) Settings (SW1) TONS 2-1/2 1000 1200 3-1/2 1400 1600 1800 2000 2200 Shaded cells represent the factory settings BLOWER HEATING SPEEDS WITH HYDRONIC COIL In the next two pages:...
  • Page 14 HYDRONIC COIL MODEL HC1-B AH2436*E1 Temperature & Heat Values at 140, 160 & 180 F and 3,4,5,6 & 7 gallons per minute at selected speeds Motor Speed (A,B,C etc.) 7gpm:180 6pgm 5gpm 4gpm 3gpm F Water 7gpm:160 6gpm 5gpm 4gpm 3gpm Water 7gpm:140...
  • Page 15 HYDRONIC COIL MODEL HC2-A AH4260*E1 Temperature & Heat Values at 140, 160 & 180°F and 7,8,9 & 10 gallons per minute at selected speeds Motor Speed (A,B,C etc.) F Water 10gpm:180 9gpm 8gpm 7gpm F Water 10gpm:160 9gpm 8gpm 7gpm 10gpm:140 9gpm Water...

  • Page 16: Duct System

    BLOWER TIME DELAY In cases where the yellow wires are used to start and stop the hydronic pump, SW2 may be used to delay when the blower is cycled on or off to increase comfort and efficiency. Use Table D1 to set the switches appropriately Table D1: Delays before blower cycles “ON or “OFF”...

  • Page 17: Duct Sizing Chart

    DUCT SIZES FOR HOMES Velocity Approximately 800 Feet Per Minute THE INDOOR EVAPORATOR COIL 1. EVAPORATOR COIL is a finned coil through which air in the home is circulated. Heat from the air is transferred to the liquid refrigerant inside the evaporator coil. The coils for use in AH air handlers are in an A-shaped configuration (A Models).
  • Page 18 2. LIQUID LINE is a single small tube connecting the outlet of the A/C condenser to the expansion valve inlet on the A/C evaporator coil. TUBING SIZE REFERENCE CHART Tube Diameter for Total Line Length 0-50’ 50-75’ 75-100’ MODEL Suction Liquid Suction Liquid...
  • Page 19 TUBING INSTALLATION The compressor oil is constantly pumped through the refrigerant lines in normal operation of an air conditioning system. To ensure proper lubrication of the compressor by avoiding oil accumulation at undesirable points in the system, follow the guidelines listed below: 1.
  • Page 20 NOTE: Multiple suction line traps are recommended for longer or multiple suction lines. See Figure J. An inverted trap should be installed on the horizontal suction line near the evaporator coil to prevent liquid flood back to the compressor (See Figure K.) if the indoor evaporator coil is located 10’ or more above the condensing unit.

  • Page 21: How To Measure Liquid Sub-Cooling

    HOW TO MEASURE LIQUID SUB-COOLING (NOTE: A good electronic thermometer and accurate liquid pressure gauge with a check valve in the Schraeder fitting are necessary). : Failure to use a liquid side hose fitting with a built in check valve may result in personal injury and significant refrigerant loss.

  • Page 22: Measuring Temperature Drop Across The "A" Coil

    A liquid sub-cooling of about 10 o F leaving the condenser is good over a wide range of operating conditions for a system with a TXV in the evaporator like the AH2436A/BE1 & AH4260A/BE1. MEASURING TEMPERATURE DROP ACROSS THE “A” COIL: The temperature drop across the coil should be around 18 o F to 23 o F difference between inlet and outlet air.
  • Page 23 Max fuse size for AH2436BE1 w\ EH104A 30A EH108A 45A Max fuse size for AH4260BE1 w\ EH208A 50A EH212A 70A EH216A 85A The following points must be checked by the installer and/or electrician before the air conditioning system is started: 1.

  • Page 25: Ua Adapter Cabinet

    UA ADAPTER CABINET The UA adapter cabinet is designed to be used in conjunction with the AH AIR HANDLER to allow a free standing (vertical discharge) installation. The UA cabinet is shipped completely assembled and ready for installation. The return air opening can face either left or right by exchanging the front filter door and rear filter block- off assemblies.

  • Page 26: Ecm Trouble Shooting

    ECM TROUBLE SHOOTING DIAGNOSTC FEATURES The control board is equipped with 4 green Input Status LEDs and 1 red Board Status LED. These are intended to provide a quick view into furnace performance without requiring a voltmeter. The green Input Status LEDs are driven by the “Y”, “W”, “G”, and “DEHUM” inputs and are located directly below those inputs.
  • Page 27 Perform motor/control replacement check  Stays at high CFM “R” missing/not connected at motor   Is fan in delay mode? – wait until delay time  complete Perform motor/control replacement check  Blower won’t shut off Current leakage from controls into G,Y or W? ...
  • Page 28 Comfort Check  Check proper airflow settings  Low static pressure for lowest noise  Set low continuous-fan CFM  T’stat in bad location? 120V or 240V 120V or 240V Figure N: ECM PIN CONNECTORS Troubleshooting table above and Figure N adapted from GE Industrial Systems publication GED-7161C, “Troubleshooting GE ECM –...

  • Page 29: Troubleshooting Charts

    TROUBLESHOOTING CHARTS THIS GUIDE SHOULD BE USED IN THE CASE OF A STOPPED OR MANFUNCTIONED ECM BLOWER MOTOR. THE FOLLOWING SHOULD HELP ESTABLISH THE TYPE OF MALFUNCTION OR DEVIATION FROM THE NORMAL BLOWER OPERATION. TO USE THIS DIAGRAM, YOU JUST NEED TO FOLLOW THE INSTRUCTIONS IN THE BOXES. CONFIRM IF EITHER BLOWER WHEEL IS RUBBING AGAINST DOES BLOWER SPIN FREELY?
  • Page 30 Sequence of Operation BLOWER Off- Delay Active? HEAT On-Delay LIMIT Mode On? Ended? Active? Active 1.BURNER Off BURNER On 2. HEAT mode Off 3. BLOWER Off-Delay Started 4. Status LED Off COOL On-Delay DEHUM BLOWER Mode On? Ended? Active? Active? = LOW 1.

  • Page 31: Sequence Of Operation

    LOW - The LOW Blower speed selected by positions 4, 5 & 6 of SW1 (CFM tables on page 10) ECM – PSC Replacement for AH2436AE1 or AH4260AE1 only In an emergency situation, a defective ECM motor can be replace with a PSC motor to provide temporary circulating air flow for heating or cooling.

  • Page 32: Replacement Parts List

    REPLACEMENT PARTS...
