Summary of Contents for Sports Authority BODYFIT XRB358

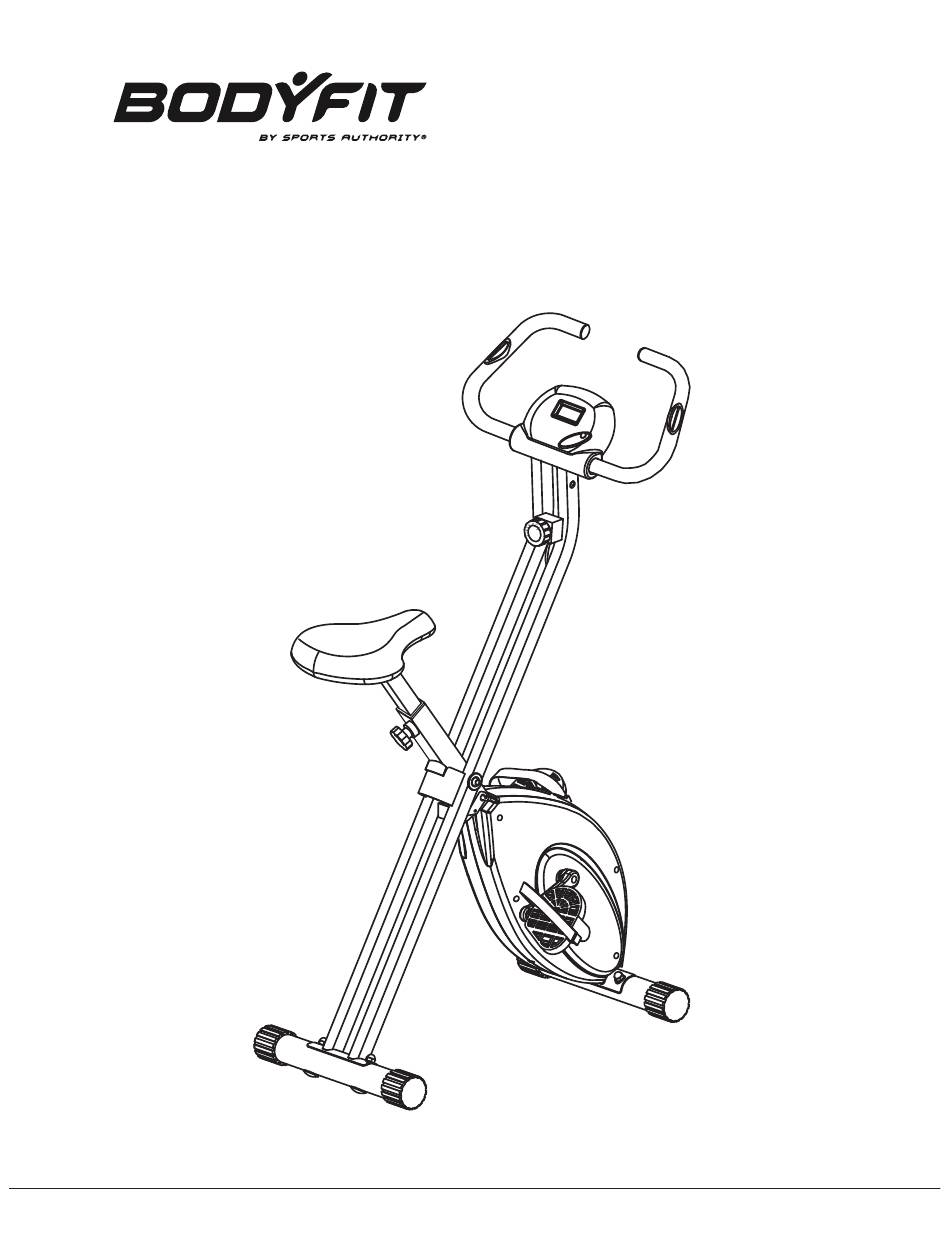

- Page 1 DELUXE FOLDING BIKE XRB358 * This item is for consumer use only and it is not meant for commercial use. OW NER’S MA NUAL...
-
Page 2: General Information
General Information Safety Storage and Use Before you undertake any exercise program, Your product is intended for use in clean please be sure to consult with your doctor. dry conditions. You should avoid storage in Frequent strenuous exercise should be excessively cold or damp places as this may approved by your doctor and proper use lead to corrosion and other related problems. -
Page 3: Hardware List
Hardware List The following hardware is used to assemble your unit. Please take a moment to familiarize yourself with these items. Please note some of this hardware is already pre-assembled on the machine. Do not be alarmed if you see parts on this page that are not included in your hardware packet Bolt #17. -
Page 4: Parts Listing
Parts Listing The following parts list describes all of the parts illustrated on the exploded diagram on the following page. Please note, most of these parts are already pre-assembled on your unit. Part# Description Part# Description Shroud Frame Arc Washer (M6) Main Frame Nylon Nut (M8) Seat Post... -
Page 5: Exploded Diagram
Exploded Diagram The following diagram is provided to help you familiarize yourself with the parts and hardware that will be used during the assembly process. Please note that not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. - Page 6 Assembly Instructions A s s e m b l y S t e p 1 A.) Remove the Pop Pin (#15) that is pre-assembled through the lower hole of the Shroud Frame (#01). Then, insert it into the upper hole located on the Shroud Frame (#01) until it passes through and clicks into place. For your safety, this Pop Pin (#15) MUST remain inserted whenever the unit is in use OR if it is left unfolded and/or unattended.
- Page 7 Assembly Instructions A s s e m b l y S t e p 2 A.Secure Left Pedal (#08) onto the Left Crank (#06) by turning it COUNTER-CLOCKWISE. You will need to use a Wrench to tighten if necessary. B.Secure Right Pedal (#09) onto the Right Crank (#07) by turning it CLOCKWISE. You will need to use a Wrench to tighten if necessary.
- Page 8 Assembly Instructions A s s e m b l y S t e p 3 Remove the three Washers (#25) and three Nylon Nuts (#29) that are pre-assembled on the back of the Seat (#11) and set them aside as they will be used later in this step. Attach the Seat (#11) to the Seat Post (#03) using a total of three Washers (25) and three Nylon Nuts (#29) that were previously removed and set aside.
- Page 9 Assembly Instructions A s s e m b l y S t e p 4 A.) Attach Handlebar (#04) to the Main Frame (#02), AND secure them together by using two Bolts (#17), two Spring Washers (#26) and two Washers (#22) from the sides, and two Bolts (#17), two Spring Washers (#26) and two Arc Washers (#28) from the front.
-
Page 10: Safety And Maintenance
Safety & Maintenance SAFETY & WARNINGS • Make sure all nuts, bolts, and screws are tightened prior to use. • Be sure that all adjustment locking devices and safety devices are properly engaged prior to use! • Never over-tighten the above-mentioned devices and parts to avoid damage to the unit. •... -
Page 11: Computer Operation
Computer Operation COMPUTER MONITOR INSTRUCTIONS MODE SPECIFICATIONS: TIME…………………………………………………………………………… 0:00 - 99:99 (Minutes) SPEED………………………………………………………………..………. - 99.9 (Miles Per Hour) DISTANCE…………………………..….……………………………..0 - 999.9 (Miles) CALORIES .……………...…….….....………………....- 9999 (Calories) PULSE ……………..……………………………………………………..40 - 240 (Beats Per Minute) OPERATION PROCEDURES:__________________________________________________ 1. Auto On/Off: ... -
Page 12: Troubleshooting
Troubleshooting (AFTER COMPLETE ASSEMBLY) Solution Troubleshoot Area If the computer is not picking up your hand pulse signal (or you are getting HAND PULSE SIGNAL inaccurate readings), please adjust the following: Slightly moisten/dampen the palms with water so the sensors can detect a pulse signal. - Page 13 PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE USE & REFERENCE. DO NOT DISCARD. WARNING: SERIOUS INJURIES AND EVEN DEATH CAN OCCUR IF THE PROPER SAFETY PRECAUTIONS ARE NOT FOLLOWED. The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit.
-
Page 14: Warm-Up Instructions
Warm-Up Instructions Before use, you must read and understand all instructions & warning stated in this Owner's Manual as well as posted on the equipment. The following flexibility exercises are provided to you as a means to prevent injury while you are exercising. A proper warm-up routine decreases the chance of injuring your muscles while you are exercising. - Page 15 Warm-Up Instructions Trunk Flexion, Prone 1. Assume the depicted position on your hands and knees. Stretch your hands out in front of you and then slowly start to pull them back in toward your body as you tuck your chin and arch your back upward. 2.
- Page 16 Thanks for choosing XRB358 Store Location: Hupa International hupa.net version: 07-31-2015 Main in China...
