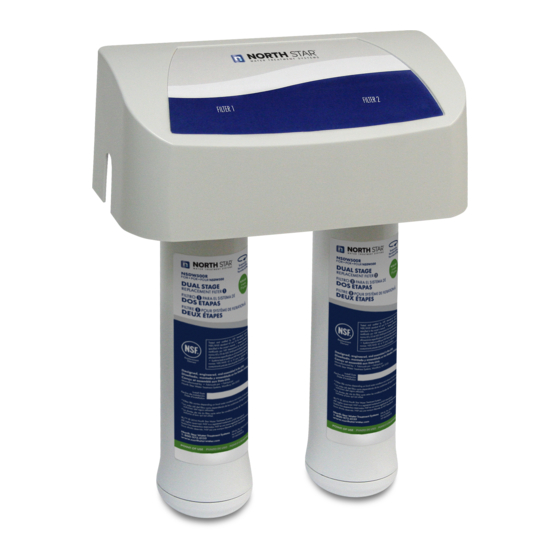

Model NSDW500
How to install, operate and
maintain your Undersink
Drinking Water Filter System
Do not return unit to store
If you have any questions or concerns when
installing, operating or maintaining your water
conditioner, call our toll free number:
1-800-972-0135
www.northstarwater.com
or visit
When you call, please be prepared to provide
the model, date code and serial number of your
product, found on the rating decal, located
inside the cover.
System tested and certified by NSF International
against NSF/ANSI Standards 42 & 53.
See performance data on page 12 for details.
Designed, Engineered &
Assembled in the U.S.A.
Manufactured and warranted by
Water Channel Partners
1890 Woodlane Drive
Woodbury, MN 55125
201-8404054 (Rev. 02 5/27/20)
Advertisement
Related Manuals for North Star NSDW500
Summary of Contents for North Star NSDW500
- Page 1 Model NSDW500 How to install, operate and maintain your Undersink Drinking Water Filter System Do not return unit to store If you have any questions or concerns when installing, operating or maintaining your water conditioner, call our toll free number: 1-800-972-0135 www.northstarwater.com...
-
Page 2: Table Of Contents
Table of Contents Parts of the System / Materials and Tools Needed / Typical Undersink Installation ....3 Installation Steps ..............4-6 Filter Cartridge Life / Filter Cartridge Replacement . -
Page 3: Parts Of The System / Materials And Tools Needed / Typical Undersink Installation
Parts of the System • filter system assembly • filtered water faucet for sink or countertop mounting • 3/8" tubing to make all needed connections Materials and Tools Needed NOTE: Gather the required tools before starting installation. Read and follow the instructions provided with any tools listed here. -
Page 4: Installation Steps
Installation Steps Step 1 - Cold Water Supply Fitting Check and comply with local plumbing codes as you plan, then install a cold water supply fitting. The fit- ting must provide a leak-tight connection to the water filter 3/8" tubing. A typical connection using the included water supply fitting is shown in Figure 2A. - Page 5 • Drill a hole in the sink top. • Drill a hole in the countertop next to the sink. 2. If drilling is needed make a 1-1/4" dia. (minimum) hole for the faucet. Step 3 - Install Faucet (not included - North Star faucet shown) faucet base...
- Page 6 Installation Steps Step 4 - Make Tubing Connections NOTE: Remove protective foam plugs before connecting tubes (See Fig. 4). Discard foam plugs. 1. Allowing some slack, measure and cut a length of 3/8" tubing to connect between the supply fitting and the filter system inlet, Figure 1.
-
Page 7: Filter Cartridge Life / Filter Cartridge Replacement
North Star Undersink Drinking Water Filter system model NSDW500 with replacement element pack 7358195 conforms to NSF/ANSI 42 and 53 for the specific performance claims as verified and substanti- ated by test data. -
Page 8: Exploded View / Repair Parts
Exploded View... - Page 9 Repair Parts List Key No. Part No. Description 7276262 Cover, order decal below – 107-8404138 Decal, Cover 119-8600088 Water Supply Fitting, 3/8” Q.C. 7168435 Tubing, 3/8” x 72” long, White 7280106 Head Assembly 7358195 Rep’l Filter Cartridge (2 pack) Ù Mounting Hardware Kit –...
-
Page 10: Troubleshooting The System
Troubleshooting the System Problem: Taste and/or Odor. Cause: Pre & Post filter expended. Correction: Replace the filter cartridges. Cause: System contaminated. Correction: Sanitize system. Call 1-800-972-0135 for instructions. Problem: Water leaks at push connect fittings. Cause: Tubing not pushed in all the way. Correction: Push tubing in all the way into fittings. Cause: Tubing not cut square. -
Page 11: Performance Data
