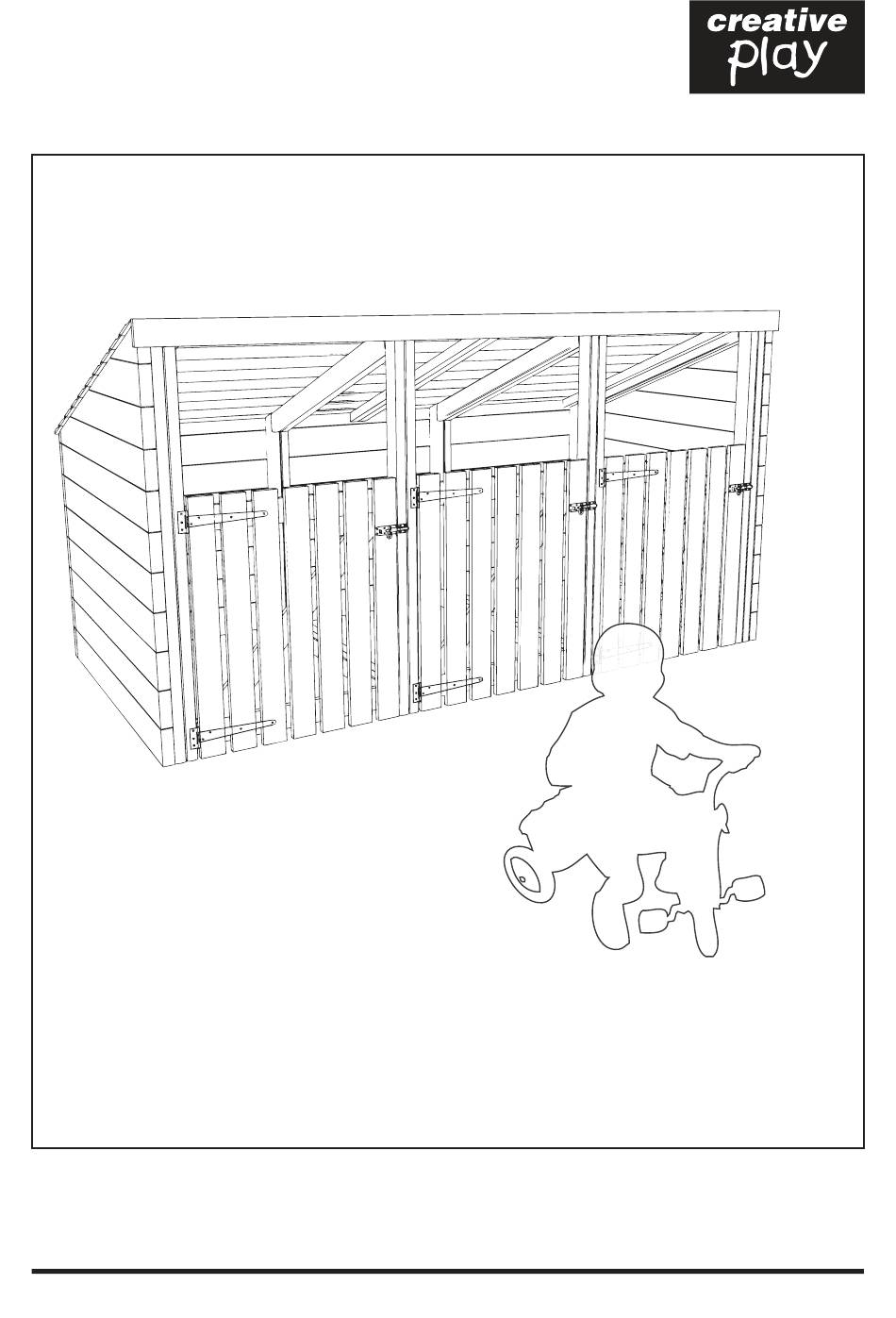

TRIKE STORE
Assembly + Installation Instructions
REF: TPH104 - TRIKE STORE
pg 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRIKE STORE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Creative Play TRIKE STORE

  • Page 1 TRIKE STORE Assembly + Installation Instructions REF: TPH104 - TRIKE STORE pg 1 of 9...
  • Page 2: Parts Required

    SIDE ASSEMBLY LEFT x 1 DOOR / GATE ASSEMBLY x 3 FASCIA BOARD x 1 inc HINGES + LOCKS SUPPLIED LOOSE NOT SHOWN ABOVE - x3 (DOOR STOPPERS - 2” x 2” timbers @ 920mm) pg 2 of 9 REF: TPH104 - TRIKE STORE...
  • Page 3: Tools Required

    PARTS required (FM80 ‘Brass screws’) (FM120 ‘Brass screws’) (TEE HINGE 305mm - WILL BE ATTACHED TO DOOR/GATE ASSEMBLY) (5x30mm WOOD SCREW) (LOCKABLE PAD BOLT) TOOLS required pg 3 of 9 REF: TPH104 - TRIKE STORE...
  • Page 4: Foundation Details

    Foundation Details DOES NOT REQUIRE CONCRETE FOUNDATIONS pg 4 of 9 REF: TPH104 - TRIKE STORE...
  • Page 5 Using FM120 ‘BRASS SCREWS’ - 8 per B2 TIMBER / 4 per B1 timber NOTE: - TIMBERS are screws to the CENTRE of the 90mm x 90mm SUPPORT FRAME TIMBERS - SCREW HOLES LOCATIONS SHOWN RED ABOVE pg 5 of 9 REF: TPH104 - TRIKE STORE...
  • Page 6 90mm x 90mm timber Repeat for the RIGHT ROOF ASSEMBLY Using 80mm brass screws - IN ADDITION ATTACH the CENTRE 2” x 2” TIMBERS together - RIGHT SIDE WILL OVERHANG 15mm CIRCLED RED pg 6 of 9 REF: TPH104 - TRIKE STORE...
  • Page 7 Assembly Instructions Screw through the SHIPLAP into the SUPPORT FRAMES Using 120mm brass screws USE 5 for each SUPPORT FRAME Attach the FASCIA board to the SUPPORT FRAMES Using 80mm brass screws pg 7 of 9 REF: TPH104 - TRIKE STORE...
  • Page 8 - THE DOOR should be positioned BETWEEN the 90mm x 90mm uprights with a 5mm GAP either SIDE Repeat for the 2 remaining DOORS ASSEMBLIES Using wood screws ATTACH THE 3 x PAD BOLTS pg 8 of 9 REF: TPH104 - TRIKE STORE...
  • Page 9: Additional Dimensions

    Additional Dimensions 3.0m 1.5m pg 9 of 9 REF: TPH104 - TRIKE STORE...
