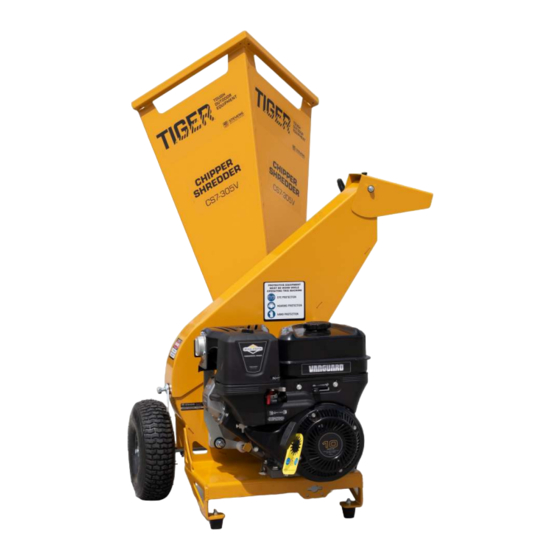

- Page 1 TIGER CS7-205V & CS7-305V Owners Manual Distributed in New Zealand by: STEVENS GROUP PH: +64 9 275 0443 EMAIL: sales@stevensgroup.co.nz WEBSITE: www.stevensgroup.co.nz TIGER Chipper Shredder CS7-205V & CS7-305V Owners Manual (P/N 1432) page 1...
-
Page 2: Table Of Contents
Table of Contents Receiving Your TIGER Chipper Shredder Page No. Fuelling your Chipper Shredder Tyre Pressure Engine Servicing Assembly Instructions Assembly Diagram Safety Intended uses of Machine Operator Competency Safe Operating Procedures Identifying Hazards & Risks Operation Starting Procedure Shutdown Procedure Operation Maintenance Service &... -
Page 3: Fuelling Your Chipper Shredder
This document contains information on how to safely operate your new machine, and is based on information available at the time of publication. Stevens Group continually research, develop and improve their equipment. In doing so, we reserve the right to add improvements or make changes to our product without notice, without obligation for equipment previously sold. -
Page 4: Assembly Instructions
CS7-205V & CS7-305V Assembly Diagram Discharge Chute Remove Discharge chute from box. Fasten to chipper body using hex bolt, washers and nyloc nut as attached. Infeed Chute Wheel & Axle Remove Infeed chute from box. Slide Infeed chute down into place then fix with nyloc nut as supplied on unit. -
Page 5: Safety
Safety Preventing accidents is the responsibility of every equipment owner. Ensure you have been instructed by your authorised dealer on all safety issues, both general and specific and the operation and maintenance of the chipper shredder before operating machinery. Intended uses of machine Do not use for any purpose other than for which the machine is designed. -
Page 6: Identifying Hazards & Risks
Identifying Hazards and Risks Identify hazards and risks, and take preventative steps to avoid accidents and minimise risk. Possible hazards include, but are not limited to, moving parts, thrown objects, weight of machine and components and the operating environment. Operation •... - Page 7 spark plug and proceed as follows: Inspect for damage. Replace or repair any damaged parts. Check for and tighten any loose parts. Do not attempt to repair the machine unless you are competent to do so. Avoid feeding short, stubby pieces of wood into the machine, as they tend to bounce and spin in the infeed chute. Feed these short pieces together with longer pieces.
-
Page 8: Maintenance
Maintenance When this equipment is stopped for servicing, inspection, or storage, make sure the spark plug wire is disconnected from the spark plug. Allow the machine to cool before making any inspections, adjustments, etc. Maintain the machine with care and keep it clean by blowing, brushing or wiping it down. DO NOT WASH OR USE WATER. Store the machine out of the reach of children and where fuel vapor will not reach an open flame or spark. -
Page 9: Shredder Knife Maintenance
of coolant used when grinding, to avoid softening of the material. The cutting angle is critical for the performance of the chipper and should be 45°. If you are unable to re-sharpen the blades yourself, either contact a professional saw doctor. Normally only a slight touch up is needed. In this way your blades should last for a long time. Remount the chipper blades including the blade shims, making sure that all mounting surfaces are cleaned beforehand. -
Page 10: Wear Parts
Wear parts Anvil Chipper Blade Part Number: 1419 Part Number: 70739 QTY per Unit: 1 QTY per Unit: 2 Shredder Blade Pulley Vee Belt Part Number: 070 007 060 Part Number: AX21 QTY per Unit: 6 QTY per Unit: CS7-205V x 1 CS7-305V x 2 TIGER Chipper Shredder CS7-205V &... -
Page 11: Specifications
Specifications MODEL CS7-205V CS7-305V Capabilities 2-in-1 Chipper Shredder 2-in-1 Chipper Shredder Chipping Capacity 70mm / 3" Chipping 70mm / 3" Chipping L x W x H L 1165mm x H 1325mm x W 830mm L 1165mm x H 1325mm x W 830mm Infeed chute opening 390mm x 390mm 390mm x 390mm... -
Page 12: Blade & Anvil Diagrams
CS7-205V & CS7-305V Blade & Anvil Diagrams Top View: Blade & Anvil Set Up Side View: Blade & Anvil Set Up 3D View: Blade & Anvil Set Up TIGER Chipper Shredder CS7-205V & CS7-305V Owners Manual (P/N 1432) page 12... -
Page 13: Belt Tension & Replacement
CS7-205V & CS7-305V Belt Tension & Replacement 3D View: Belt Tension Front View: Belt Tension 3D View: Belt Replacement TIGER Chipper Shredder CS7-205V & CS7-305V Owners Manual (P/N 1432) page 13... - Page 14 CS7-205V & CS7-305V Belt Tension & Replacement TIGER Chipper Shredder CS7-205V: Belt Replacement Remove top 2 hex bolt to remove belt cover Remove 4 hex bolts and nyloc nuts to remove Vanguard 6.5 HP Engine Once engine is unscrewed the pulley belt will be loose and be able to be removed TIGER Chipper Shredder CS7-305V: Belt Replacement Remove top 2 hex bolt to remove belt cover...
- Page 15 CS7-205V & CS7-305V Belt Tension & Replacement TIGER Chipper Shredder CS7-205V TIGER Chipper Shredder CS7-305V Once new belt is fitted, ensure all pulleys are inline by placing a straight edge across the face of them to make sure the top and bottom pulleys are aligned. Assembled Pulley System: CS7-205V Assembled Pulley System: CS7-305V Diagrams shows correct pulley assembly for both TIGER Chipper Shredder Models...
-
Page 16: Tiger Chipper Shredder Warranty
Stevens Group will recognise your statutory rights under the Consumers Guarantee Act 1993. Stevens Group warrants to the original owner, each new TIGER Chipper Shredder free from defect in material and workmanship, under normal use and routine servicing for the warranty period specified below and conditional to the limitations and exclusions outlined below. -
Page 17: Limitations
Non-Registered 12 Months Registered 24 Months (Conditional)* Stevens Group reserves the right to make design and / or specification changes at any time to its products without obligation to previous purchasers of its products. Contact Details Stevens Group PH: +64 9 275 0443 E: sales@stevensgroup.co.nz... -
Page 18: Commissioning Checklist & Registration
It is the retailers responsibility to ensure that this machine is correctly commissioned for use, and that the purchase is registered with Stevens Group, and the Engine is registered with the Vanguard Agency to provide the owner with the full benefit of the warranty policy. -
Page 19: Accessory Guide
Accessory Guide Optional Draw Bar Kit Optional Turntable & Walker Mower Catcher Door Kit CATCHER DOOR EXTENDED DISCHARGE CHUTE TURNTABLE TRAILER TIGER Chipper Shredder CS7-205V & CS7-305V Owners Manual (P/N 1432) page 19... - Page 20 Distributed in New Zealand by: STEVENS GROUP PH: +64 9 275 0443 EMAIL: sales@stevensgroup.co.nz WEBSITE: www.stevensgroup.co.nz TIGER Chipper Shredder CS7-205V & CS7-305V Owners Manual (P/N 1432) page 20...
