Handheld USB Digital Endoscope/Microscope

eheV2-USB-S

USER'S MANUAL

INTRODUCTION

FUNCTIONS AND APPLICATIONS

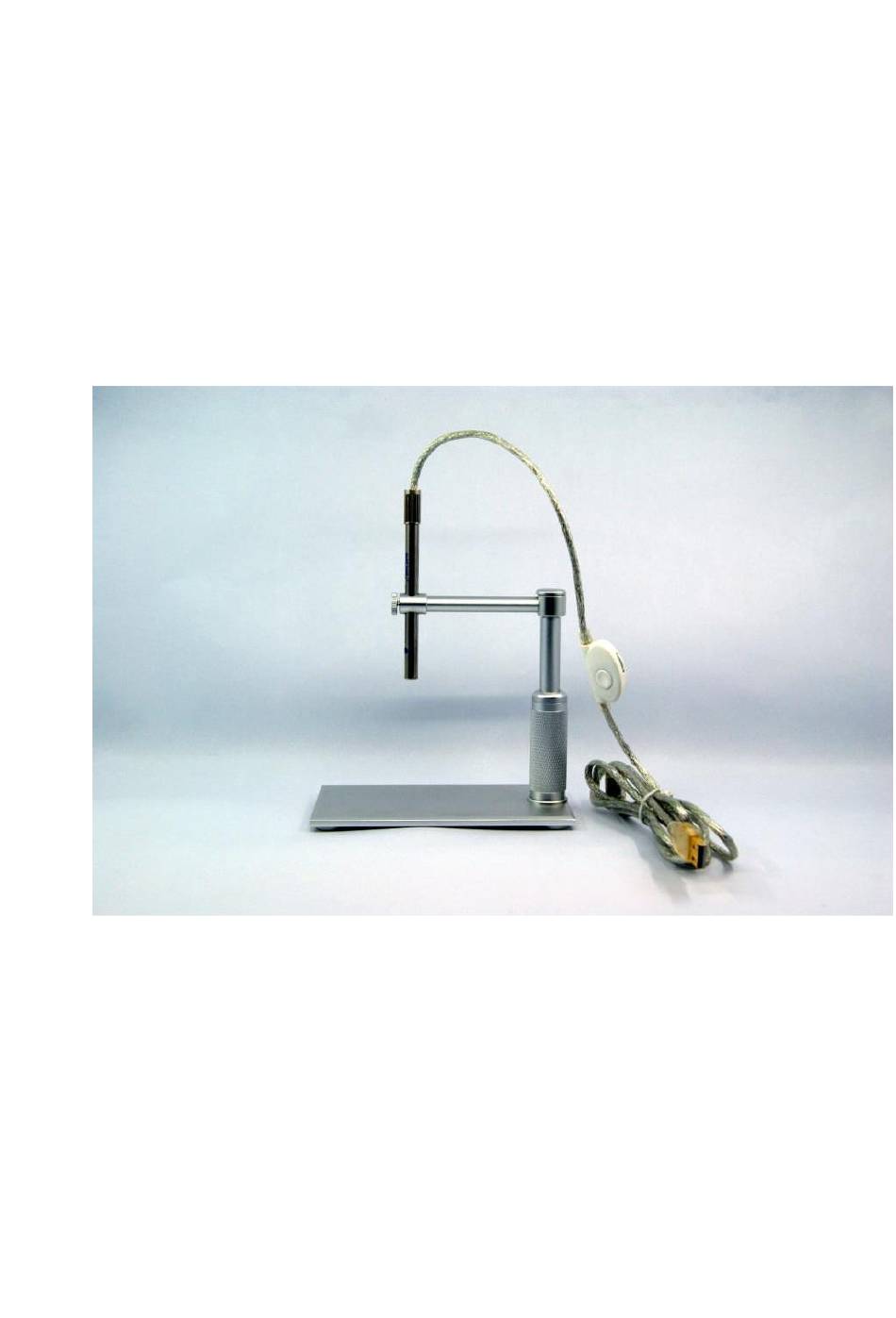

The USB Digital Endoscope/Microscope is a new electronic product for the

micro observations. It is a tubular imaging system consisting of an optical lens,

an image sensor, an illumination mechanism, and an image transfer control

circuit connected to a computer. You can display the images captured by the

Endoscope/Microscope on the computer screen, store them on the computer,

print them, or send them over the Internet.

Table of Contents

Need help?

Do you have a question about the eheV2-USB-S and is the answer not in the manual?

Questions and answers

Summary of Contents for HandHeld eheV2-USB-S

Page 1 Handheld USB Digital Endoscope/Microscope eheV2-USB-S USER’S MANUAL INTRODUCTION FUNCTIONS AND APPLICATIONS The USB Digital Endoscope/Microscope is a new electronic product for the micro observations. It is a tubular imaging system consisting of an optical lens, an image sensor, an illumination mechanism, and an image transfer control circuit connected to a computer.
Page 2 As a USB microscope, it can magnify stamps, coins, antiques, insects, electric circuits, machines, fabrics, food, decorations, etc. and can also help visually impaired patients magnify small text for reading. SYSTEM REQUIREMENTS Windows 7/Vista/XP TECHNICAL SPECIFICATIONS 1. DSP: High Quality Digital Image Monarch Processor. 2.
Page 3 PACKING LIST ITEM QTY. Endoscope/ Microscope Adjustable Aluminum Alloy Stand Reflector Tube Rubber Sleeve Curette Small Plastic Sleeve Big Plastic Sleeve INSTRUCTIONS FOR USE SET UP Take the stand parts out of the box and put it together according to right photo. Insert the endoscope into the holding hole on the stand and then slightly...
Page 4 the screen. After a few seconds the endoscope will begin to take images in the window. If the picture comes from your PC camera or any other device, please click on „Device‟ on the top line of the image window and open the pull down menu. Choose the proper USB camera and close the pull down menu.
Page 5 Rap the space bar again to activate the image window. TIMING SNAP Rap the F5 key to arouse a timing snap. The snap will be delayed 10 seconds after the key was rapped company with beep per second. If you could not get a clear photo by push down the snap button the timing snap may be a help.
Page 6 USE RUBBER SLEEVE First, focus the image at the proper distance that you feel the magnification is satisfied. Put the rubber sleeve on the top of camera and adjust the sleeve to a position that the focus point is at inner place of the sleeve.
Page 7 and clear the ear wax. The operation should be very careful and soft to avoid any injuries. Do not use the curette if the ear is suffering any ear disease. OTOSCOPE The endoscope can be used as an Otoscope. By using the endoscope user can look into ear and check the eardrum.
