COL-2201
Installation Guide
Version 1.0

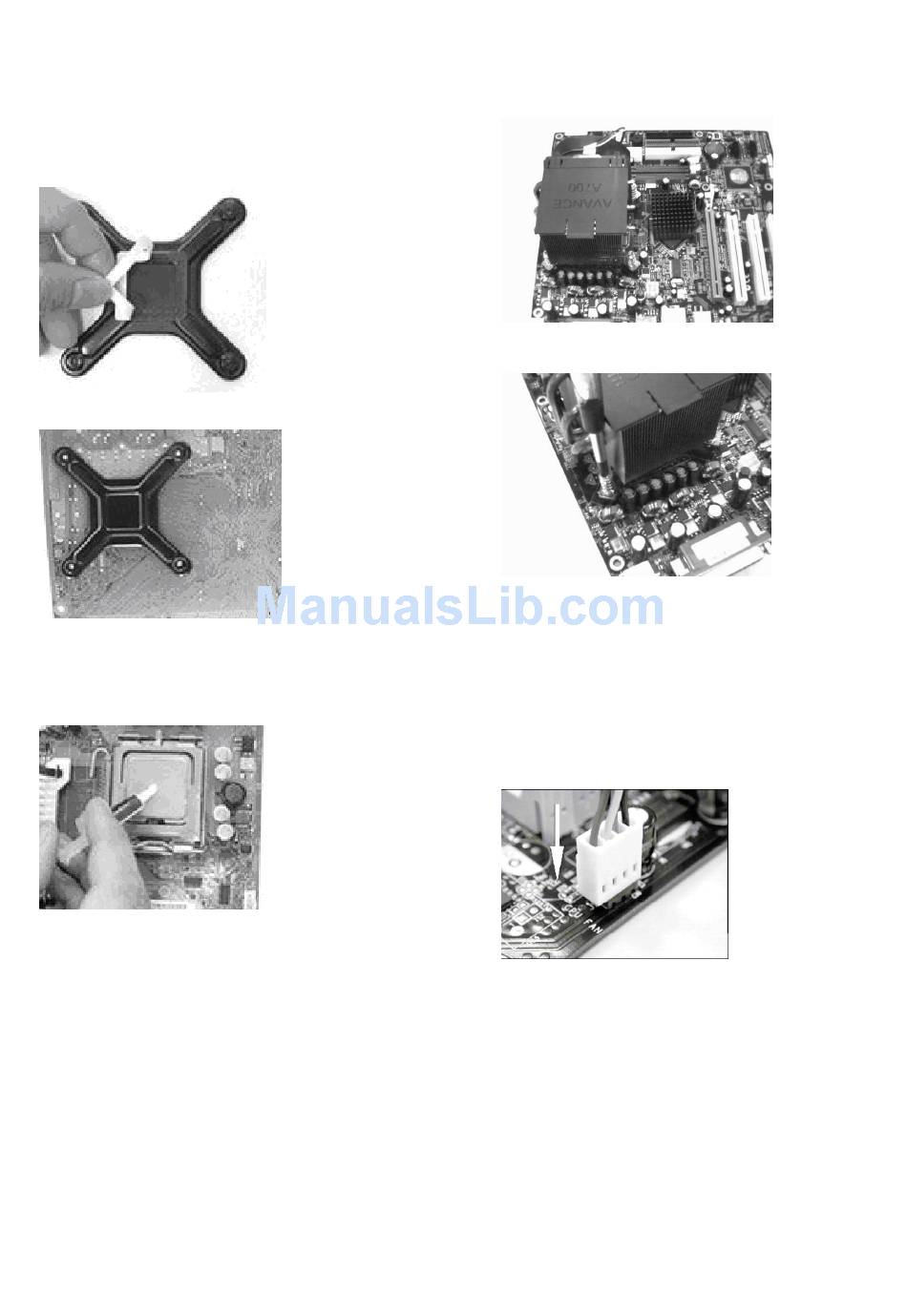

1.
Peel off and expose the adhensive part of the back plate
2.
Align the back plate with the pre-drilled holes holding
the back plate, and then firmly press it so the adhensive
part of the back plate stick to the motherboard's back
side
3.
Apply heatsink compound onto the surface of installed
CPU
4.
Place COL-2201 on top of CPU
5.
Align the retention bracket with the pre-drilled holes on
the CPU Socket tightening it to the COL-2201's back
plate using the hex wrench included in the accessory
pack(do not use excessive force when tightening the
screws), check and make sure the bottom of the cooler
sits closely fit on top of CPU
6.
Plug the cooler's power cord on the CPU Fan's power
connector
