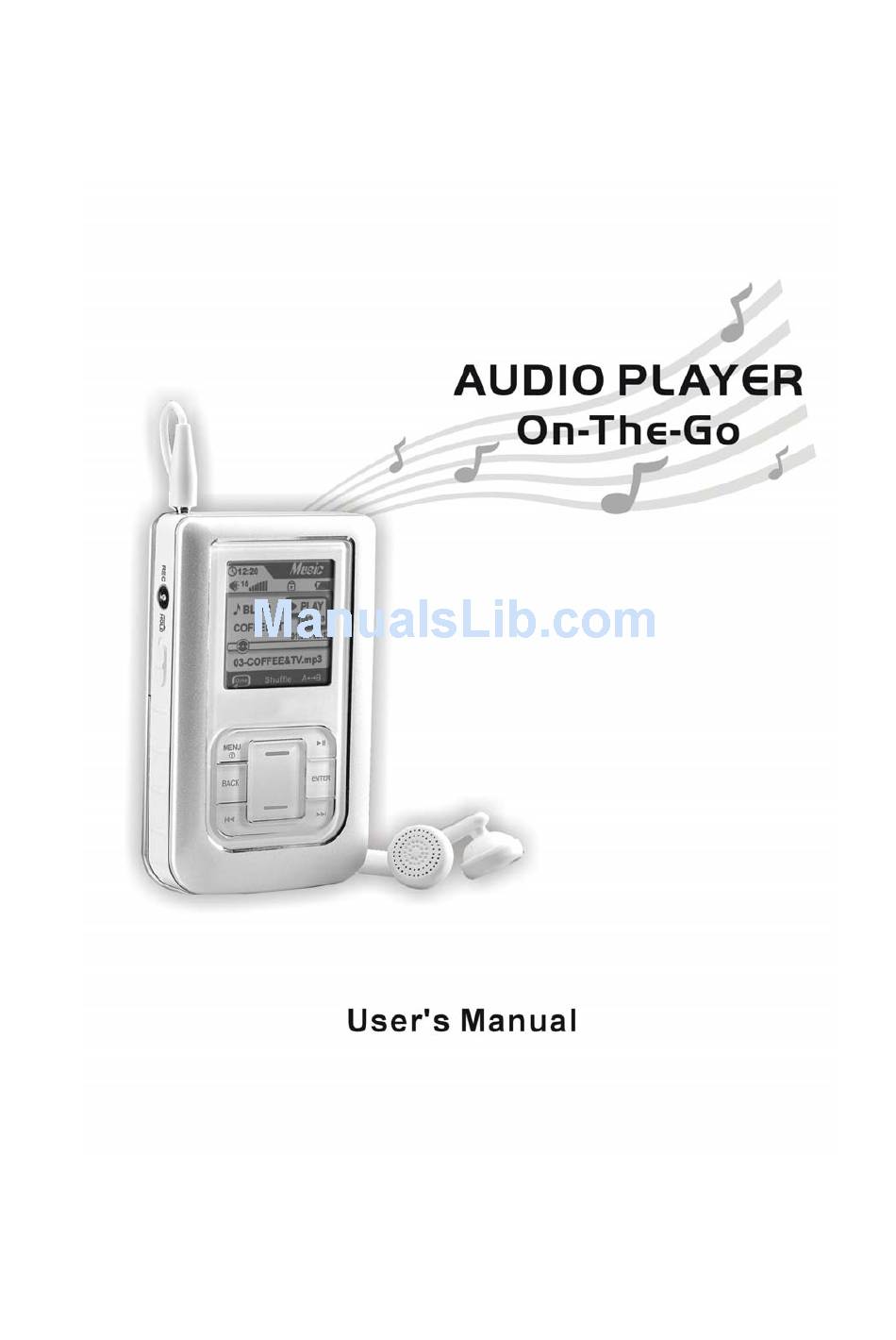

Emprex SG-106 User Manual

On-the-go audio player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SG-106 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Emprex SG-106

Summary of Contents for Emprex SG-106

  • Page 2: Fcc Certification

    FCC Certification This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference, received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15of the FCC Rules.
  • Page 3 WEEE LOGO Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other European countries with separate collection systems) This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
  • Page 4 SAFETY INSTRUCTIONS Caution Please read this page carefully before use. POWER AC adapter power rating must be checked before use. IMPORTANT NOTE Please note that there is a removable Lithium-ion battery. WARNING To prevent fire or shock hazard, do not expose the unit to rain or moisture.
  • Page 5 9. The unit should not be used near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc. 10. Avoid places where it is dusty or where the humidity is high. 11.

  • Page 6: Environmental Information

    Earphones Follow Traffic Safety Instructions • Do not use the earphones while driving an automobile or riding a bicycle. It is not only dangerous, but also against the law. • To avoid an accident, do not turn up the volume of the earphones too high while walking.

  • Page 7: Table Of Contents

    Table of Contents 1 INTRODUCTION VERVIEW ACKAGE ONTENT HARGING THE BATTERY 1.3.1 Connection 1.3.2 Caution 2 GETTING STARTED & O ONNECTION OWER 3 AUDIO PLAYER 3.1.1 Music Mode 3.1.2 FM Radio 3.1.3 Recording 3.1.4 Browser 3.1.5 Copy 3.1.6 Settings 4 DEVICE MODE ONNECT TO 5 DRIVER INSTALLATION (WIN98/98SE ONLY) 6 SAFE REMOVAL OF USB STORAGE DEVICE...

  • Page 8: Introduction

    1 INTRODUCTION 1.1 Overview First of all, we would like to thank you for the purchase of this OTG AUDIO Player. Welcome to a new solution for mobile interconnectivity: USB 2.0 OTG (On-The-Go) Enhanced with a USB OTG interface, this portable AUDIO Player combines versatility and quality.

  • Page 9: Package Content

    * USB On-The-Go (OTG) is a new supplement to the USB 2.0 specification that augments the capability of existing mobile devices and USB peripherals by adding host functionality for connection to USB peripherals. USB OTG defines a way for portable devices, through only one mini-connector, to connect to supported USB products in addition to the PC.

  • Page 10: Charging The Battery

    1.3 Charging the battery 1.3.1 Connection Plug one end of the AC adapter to the DC jack of the player. Connect the AC adapter to a power socket. AC adapter for this product is 100~240V, 50~60Hz Note: The first time the battery is charged, it will take approximately 3 hours.

  • Page 11: Caution

    1.3.2 Caution • To avoid the risk of fire, do not charge longer than 12 hours. • Do not plug several devices into the same outlet. • Do not use a rechargeable battery or charger that is defective. • When using the rechargeable battery for the first time or after several months of non-use, fully charge it first.

  • Page 12: Getting Started

    2 GETTING STARTED 2.1 Connection & Operation Front / Side View Note: HOLD switch is to disable all controls of the player. Push Hold switch up/down on the side to activate this function.

  • Page 13: Rear & Bottom View

    Rear / Bottom View...

  • Page 14: Power On/Off

    2.2 Power On/Off To turn on the AUDIO Player, press and hold To turn off the AUDIO Player, press and hold MENU for two seconds. MENU for two seconds.

  • Page 15: Audio Player

    3 AUDIO PLAYER 3.1 Main Menu Press UP & DOWN to select or hold down the top/bottom portion to scroll rapidly. Press ENTER to confirm and enter. Press BACK to return to the previous menu or screen. After powering on the OTG AUDIO Player, the main menu, which shows the major functions, will follow the greeting logo: Mode Music...

  • Page 16: Music Mode

    3.1.1 Music Mode Sound volume indicator File name Repeat Mode Icons Sound volume indicator Battery life indicator Playback indicator Clock Progression bar Hold Elapsed / Total Time Indicator Main function Title File name Repeat Mode Repeat AB Clock Hold Function description Sound volume control indicator.
  • Page 17 A. Operation Play Press to play music. Pause While in Play mode, press to pause playback of the current file. Pressing again will resume playback. Stop While in Play mode, press and hold for a moment to stop playback. Volume Press the top/bottom portion to increase/decrease the audio volume level.

  • Page 18: Other Setting

    B. Setting In Music Mode, press ENTER and there are following settings: Repeat A-B This function allows you to repeat a designated section of the file/track you choose. 1. In Play mode, press ENTER and choose Repeat A-B form the setting list.
  • Page 19 Repeat Mode Repeat None The default setting, all tracks are played in order. Repeat None Repeat One Repeats the current file/track. Repeat Album Repeats the current directory. Repeat All Repeats all the files on the disc.
  • Page 20 Shuffle By activating Shuffle, all tracks will be played in random order. EQ (Equalizer) Six EQ pre-sets are available: Flat, User define, Rock, Classic, Jazz and Ultra bass. In Flat mode, the natural sound of the music is maintained and no effects are added. User define enables a user defined 5-band equalizer which allow to define different levels for: 60Hz, 250 Hz, 1000 Hz, 4000 Hz, &...
  • Page 21 This is a patented technology that significantly enhances the quality of mono and stereo audio material. When SRS is activated, four kinds of SRS sound effects are available: SPK type, Focus, SRS and TruBass. SPK Type • Enhances audio quality of headphones. •...

  • Page 22: Fm Radio

    3.1.2 FM Radio Clock Sound volume indicator tation number Recording file Recording indication A. Operation Press VOL+ & VOL- to control the volume. Press Previous / Rewind or select FM frequency/channel. FM Recording A dedicated recording function in FM Radio. Press to start FM recording and press again to stop.
  • Page 23 B. Setting Press ENTER to view the setting list. Press UP & DOWN to select or hold down the top/bottom portion to scroll rapidly. Press ENTER to confirm. Press BACK to return to the previous screen. Memory channel Memory function of 20 preset FM channels Delete channel The preset channels can be deleted.

  • Page 24: Recording

    3.1.3 Recording Go to the Main Menu and select Recording. Press stop. Voice recording is also available in other modes by pressing Press to start FM recording in FM Radio mode. Press to start copy files in Copy mode. Clock Sound volume indicator Recording...

  • Page 25: Browser

    3.1.4 Browser Browser supports the file management of the AUDIO Player and there are two sub-functions: Play and Delete. Go to the Main Menu and select Browser. Press to select folder and press ENTER to view folder contents. Press Delete: Press file/folder deletion, and then press ENTER.

  • Page 26: Copy

    3.1.5 Copy Working as a stand-alone host, the OTG AUDIO Player can connect to other USB devices that are compliant to USB Mass Storage class. It supports the data and photo backup of digital cameras, MP3 Players, card readers or flash memory disk with one single touch, and without PC connection.
  • Page 27 Use the USB cable originally packed with your USB device to connect the USB convertor (Standard A-female to Standard A- female) and then to the OTG AUDIO Player. 3.1.5.2 USB Copy USB Copy supports data backup from USB Storage Device mentioned above to the OTG AUDIO Player.
  • Page 28 3.1.5.3 Error Message Disk Full • Appears when the disk capacity is full. • Press Menu / Back to make it disappear. Copy Error This may occur when 1. there is an operation failure. 2. the device is not properly connected. Note: Only one USB device is supported at any one time;...

  • Page 29: Settings

    3.1.6 Settings To set the basic system value for LCD Setting, Power Management, Language, Firmware Upgrade, and Time Setting. Go to the Main Menu and select Settings. Press UP & DOWN to select or hold down the top/bottom portion to scroll rapidly. Press ENTER to select setting and enter/confirm.
  • Page 30 2) Backlight Timer sets the time for backlight supply. Levels of 0-10 are available, and pushing to the end will always keep the light on. (one second as a unit) Power Management 1) Suspend Timer A system suspend timer which starts when the system enters suspend mode.
  • Page 31 Select the language by pressing Firmware Upgrade First of all, connect the AUDIO Player to the PC and copy firmware.sys to the AUDIO player. Note: Make sure that the battery is fully charged before upgrading. Select Firmware Upgrade and press ENTER. Press to upgrade?”...
  • Page 32 Time Setting a system which sets the correct time. Press to set hours, minutes and seconds. Press UP & DOWN to add/delete numbers.

  • Page 33: Device Mode

    4 DEVICE MODE Connect the OTG AUDIO Player to a PC/Notebook to transfer music/file and charge the battery. In this mode, the OTG AUDIO Player works as a USB2.0 high-speed device to the PC host and PC will see it as an external drive, allowing you to drag and drop files onto the player.

  • Page 34: Driver Installation (Win98/98Se Only)

    5 DRIVER INSTALLATION (WIN98/98SE ONLY) When you need to connect this Audio Player to the computer and use it as a USB storage device, please make sure what your operating system is. For the users of Windows 98/98SE, it’s required to install the USB storage driver.
  • Page 35 2. Installation begins and then click “Next”. Choose destination location and then click “Next”.
  • Page 36 4. Select a program folder and then click “Next”. 5. Setup is progressing.
  • Page 37 6. Driver installation is complete. Select “Yes, I want to restart my computer now.” and click “OK” to finish.

  • Page 38: Safe Removal Of Usb Storage Device

    6 SAFE REMOVAL OF USB STORAGE DEVICE Warning: To protect against damage to your computer or your data, it is strongly recommended that you follow the instructions below to remove the USB Storage Device. 6.1 Windows 2000/XP/ME (Example demonstrated under Windows 2000) 1.

  • Page 39: Mac Os Users

    When the message box below appears, click “OK.” You can now safely remove the device from the USB port of your computer. 6.2 Mac OS Users To unplug the USB OTG Storage Device, follow these steps: Drag the icon of the USB OTG device to the trash icon. You can now disconnect the USB OTG device.

  • Page 40: Technical Data

    4.0GB (1200 songs) 6.0GB (1500 songs) USB Mass Storage devices such as: Flash Memory Disk / Card Reader (Single or all-in-1) / MP3 Player / Digital Camera File support: FAT16/32 (Host mode) MP3, WMA, OGG, WAV USB 2.0 high speed interface port...
  • Page 41 3100552960 Version 1.0 July 2005...
