Summary of Contents for Advancing Alternatives AZATOM iRise

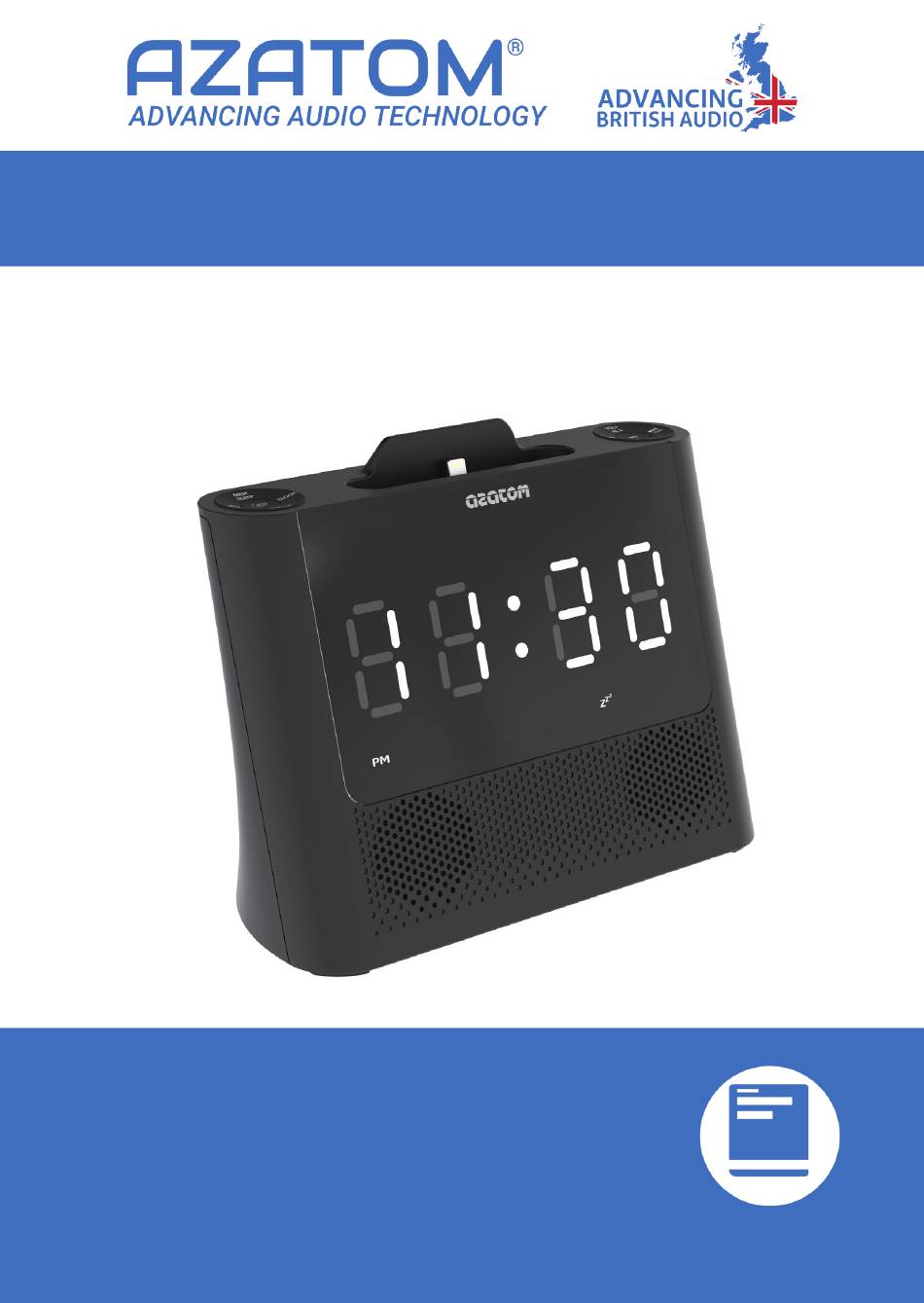

- Page 1 iRise AZATOM ® Lightning Alarm Docking Station User Manual This manual is available to download online at www.azatom.com...
- Page 3 Azatom is a UK-based high-tech company specialising in creating innovative speaker systems and high-end partner products for iPads, iPhones, iPods and other Tablets and Smartphones. We have a clear focus on improving sound performance for digital products. Azatom has unique, proprietary technology in the areas of Digital Signal Pro- cessing (DSP), Airflow, Passive and Active Driver Design and Wireless Technologies.
-
Page 4: Table Of Contents
Contents Contents Section: Page: What’s In The Box?..............Controls & Interface..............Using the iRise................Technical Specifications............Troubleshooting Guide............Important Safety Information.......... -
Page 5: What's In The Box
What’s in the box? Instruction Manual Adapter 3.5mm to 3.5mm audio cable Battery 3V (CR2032) -
Page 6: Controls & Interface
Controls & Interface... - Page 7 Front View: 1 Buttons • Turn on or turn off the unit. • Select a source. • CLOCK View the current radio frequency / Press and hold to set the time / View the source. • MEM / SLEEP Press and hold to preset stations manually / Set the sleep timer. •...
-
Page 8: Using The Irise
Using the iRise Connections: Connecting to an external device - Use a 3.5mm to 3.5mm audio cable (included) to connect the external audio device headphone socket to the LINE IN socket on the unit. Setting up the FM aerial - Unwind the coiled FM aerial at the back of the docking station. - Page 9 First-time use of the BACKUP Battery: Remove the protective tab to activate the backup battery. To Replace the BACKUP Battery: (1) Press down the flip on the left. (2) Pull out the battery tray and remove the old battery. (3) Place a new CR2032 battery into the battery tray with correct polarity (+/-) as indicated.
- Page 10 General Operation: Turn ON/OFF When you first connect the unit to the mains socket, the unit will be in STANDBY mode. • Press the button to turn on. • Press the button to turn off again. - Disconnect the mains plug from the mains socket if you want to switch the unit off completely.
- Page 11 Setting the alarm timer: You can set two alarms which wake up at different time. However the clock must be set correctly for the timer function to work. 1 In standby mode, press and hold the AL1 or AL2 button for several seconds, time indicator will blink.
- Page 12 iPod/iPhone Operation: You can enjoy audio from iPod/iPhone through this unit. Listening to your iPod/iPhone Note: This unit does not support apple 30-pin model. 1. Press the button to switch DOCK mode. 2. Place an iPod/iPhone into the dock. 3. Start to play the connected iPod/iPhone. - To pause/resume play, press the button.
- Page 13 Listening to FM Radio: Auto Scanning and Saving Preset Stations: - Ensure that you have connected and fully extended the FM aerial. 1 Press the button to switch FM mode. 2 Press and hold the button for few seconds to activate automatic programming. All available stations are programmed in the order of waveband reception strength.
-
Page 14: Technical Specifications
Technical Specifications Output Power: Total Harmonic Distortion: 1%(1kHz, 1W) Frequency Response: 250Hz - 14.5kHz Tuning Range: 87.5 - 108 MHz Audio input sensitivity: 500mV Impedance: 4Ωx2 Dimensions (W x D x H): 180 mm x 106 mm x 138 mm Adapter Input: AC100-240V~ 50/60Hz, 0.5A MAX Adapter Output:... -
Page 15: Troubleshooting Guide
Troubleshooting Guide To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this unit, check the following points before requesting service. No power: - Ensure that the AC cord of the apparatus is connected properly. - Ensure that there is power at the AC outlet. -
Page 16: Important Safety Information
IMPORTANT SAFETY INFORMATION ADDITIONAL WARNINGS 1. Read these instructions. 2. Keep these instructions. Instructions are also The apparatus shall not be exposed to dripping available for download at www.azatom.com or splashing and no objects filled with liquid, such as vases, shall be placed on apparatus. 3. - Page 18 Get to know us Azatom brand is a UK-based high-tech company owned by 4Cool Technology Ltd which specialises in creating innovative speaker systems and high-end partner products for iPads, iPhones, iPods and other Tablets and Smartphones. We have a clear focus on improving sound performance for digital products.
- Page 19 Technology put through its paces We use the latest software and equipment to tune our speakers and use studio space to create the best sounding systems at their respective prices: Our compact speaker systems produce the sound of larger, more expensive units. Whilst our larger speaker systems are competi- tive with units costing many times their price.
- Page 20 www.azatom.com @Azatom @Azatom @Azatom.Online...
