DF-SA910A – RV Shower Faucet and Shower Head

Table of Contents

Need help?

Do you have a question about the DF-SA910A and is the answer not in the manual?

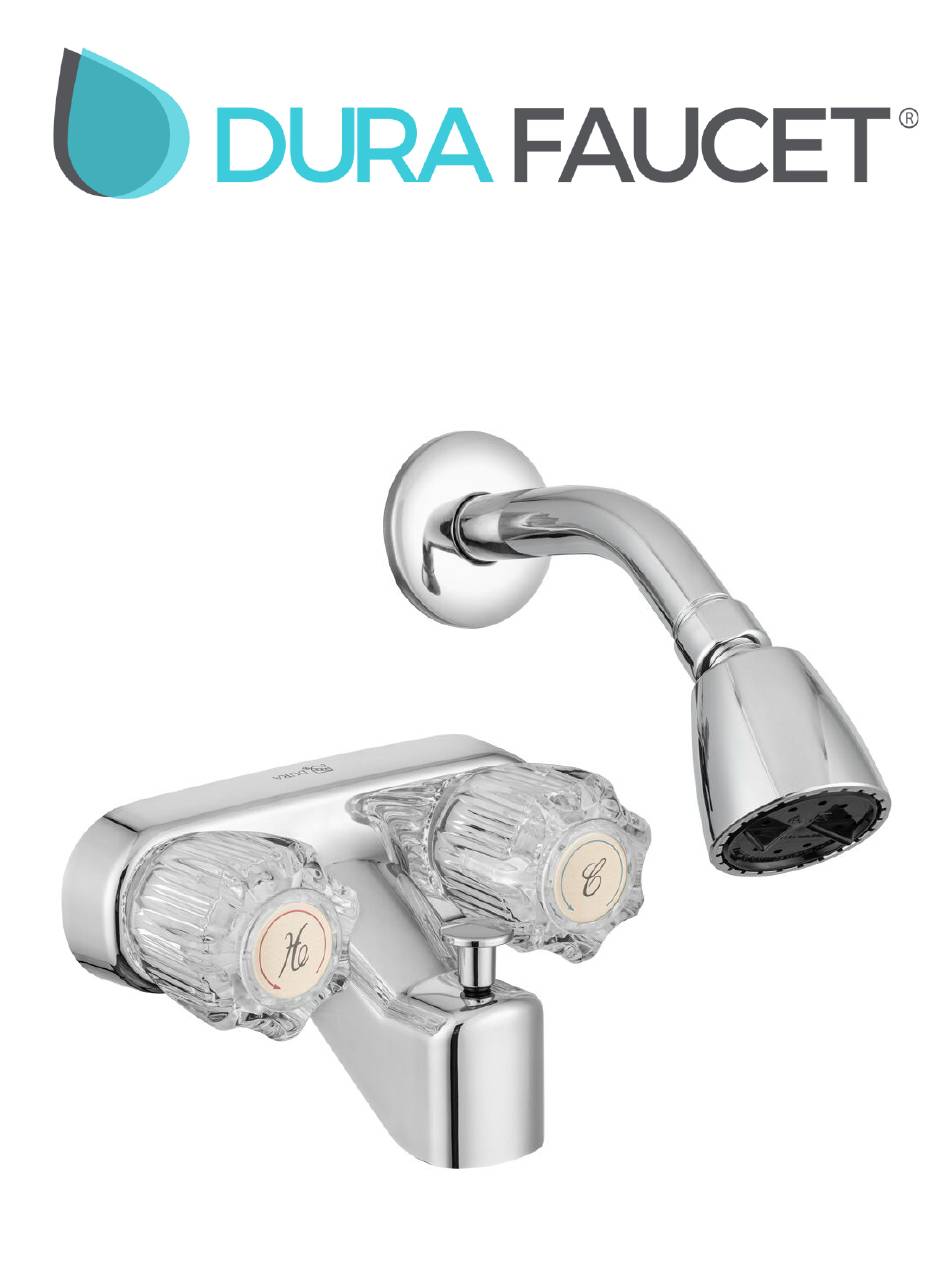

Page 1 DF-SA910A – RV Shower Faucet and Shower Head...
Page 2 ¨ Cover your drain to prevent loss of parts ¨ Observed any local plumbing codes ¨ Inspect fixture for damage - Replace as necessary * Dura Faucet reserves the right to make any revisions in the design of products without notice.
Page 3 INSTALLATION New Faucet Preparation Turn the water to the RV off before installing. Remove the existing fixture. Place the flat side of the sealing gasket against the wall, and then insert the faucet inlet tubes through the gasket into the wall. Position the faucet on the wall. You may need to remove an access panel to access the faucet mounting nuts.
Page 4 Apply Plumber’s Tape and Attach Shower Head Apply plumber’s tape, also known as thread seal tape, to the outlet side of the shower arm in a clockwise direction. Thread shower head by turning it is a clockwise direction. Tighten with an adjustable wrench.
Page 5 SPEC DRAWING / PARTS Acrylic/Ai H-Button (1) Acrylic/Ai C-Button (1) Stainless Steel Handle Screw (2) ABS Base (2) ABS Nut (2) Rubber Activity Plug (1) Acrylic/Ai H-Button (1) POM Activity Insert (1) Acrylic/Ai H-Button (1) Acrylic/Ai C-Button (1) Acrylic/Ai C-Button (1) Cu Perch (1) Stainless Steel Handle Screw (2) ABS Spout (2)
Page 6 Defects or damages caused by the use of other products or parts is not covered by this warranty. If repair or replacement is not practical, Dura Faucet may elect to refund the purchase price in exchange for the return of the product.
