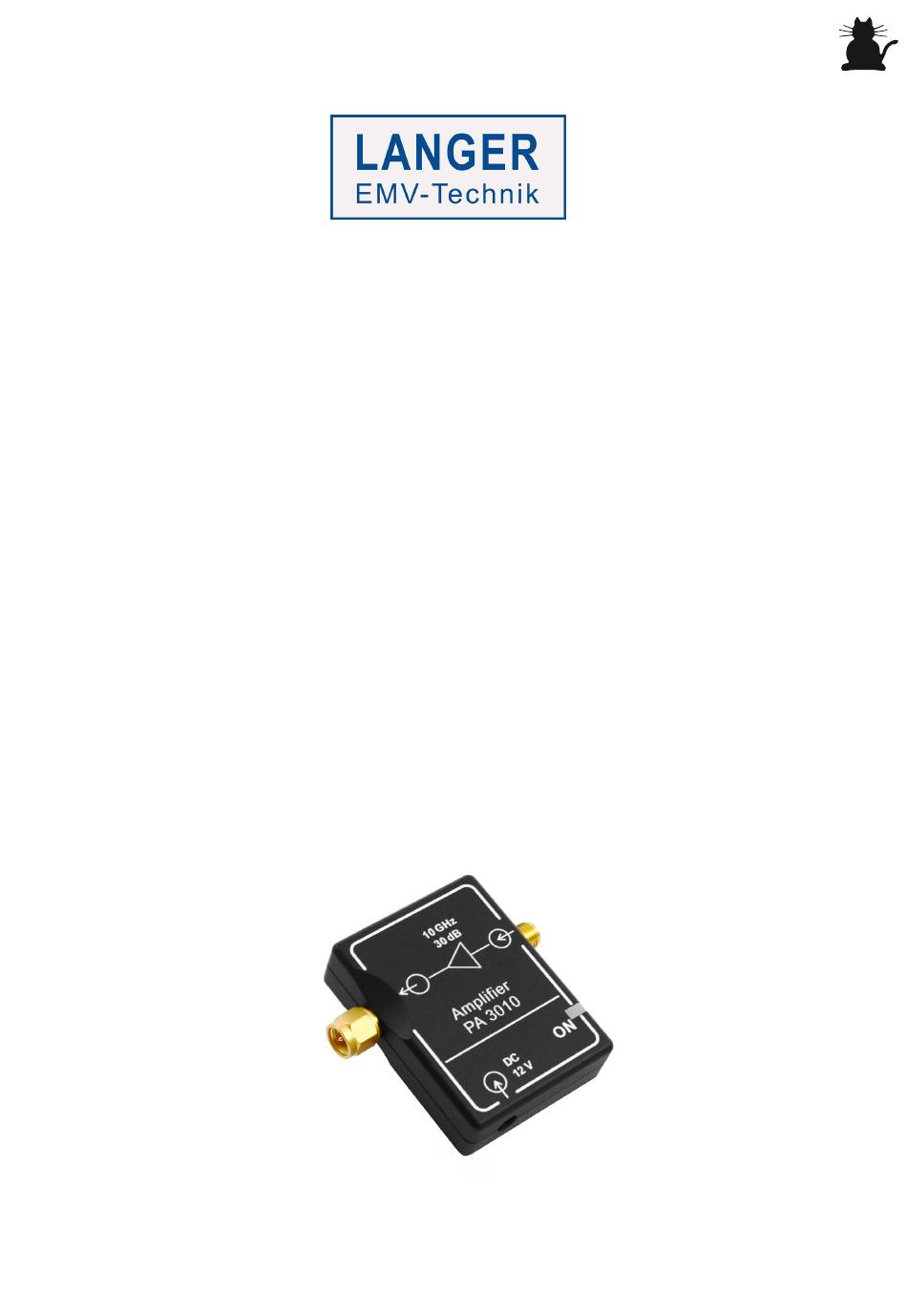

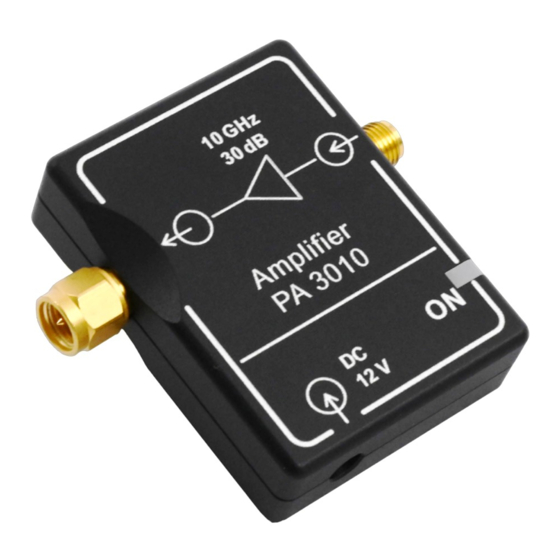

- Page 1 User Manual - Translation of the original - PA 3010 set Preamplifier 10 MHz up to 10 GHz Copyright © August 2021 LANGER EMV-Technik GmbH 2021.09.24 PA 3010 Bedienungsanleitung A5_DE_ENG_PS...
-
Page 2: Table Of Contents
PA 3010 set Content 1 Declaration of Conformity ..............3 2 General Information ................4 2.1 Storage of the User Manual ..............4 2.2 Reading and Understanding the User Manual ........4 2.3 Local Safety and Accident Prevention Regulations ......... 4 2.4 Images and Graphics ................4 2.3 Limitations of Liability ................ -
Page 3: Declaration Of Conformity
Nöthnitzer Hang 31 01728 Bannewitz Germany Langer EMV-Technik GmbH herewith declares, that the product PA 3010 set, Preamplifier 10 MHz up to 10 GHz with PA 3010 agrees with the regulations of EC guidelines: - Low Voltage Directive 2014/35/EU - EMC Directive 2014/30/EU... -
Page 4: General Information
- the instructions in this user manual were not followed, - the PA 3010 set was operated by staff not qualified in the field of EMC and who are not fit to work under the influence of disturbance voltages and electric and magnetic fields,... -
Page 5: Scope Of Delivery
NT FRI EU or NT FRI US System case Case A5 Quick guide User manual The scope of delivery may deviate depending on the respective order. Figure 1 - System case of PA 3010 set - 5 / 12 -... -
Page 6: Technical Parameters
PA 3010 set 4 Technical Parameters PA 3010 preamplifier (25°C, 12 V, 170 mA) Frequency range 10 MHz - 10 GHz Gain typ. 30 dB -1 dB compression point (output) typ. 18 dBm at 5 GHz Noise figure typ. 2.5 dB at 5 GHz Supply voltage 12 V DC Impedance 50 Ω... -
Page 7: Measurements And Characteristics
PA 3010 set 4.2 Measurements and Characteristics Average of 26 measurements T =25°C, I =170 mA, U =12 V) S11[dB] S22[dB] OP1dB Freq[GHz] S21[dB] NF[dB] (Voltage standing (Voltage standing (-1 dB compression (Frequency) (Gain) (Noise figure) wave ratio) wave ratio) point) 0.01... - Page 8 PA 3010 set Figure 4 - PA 3010 -1 dB compression point Figure 5 - PA 3010 noise figure - 8 / 12 -...
-
Page 9: Safety
The PA 3010 is powered by the provided power supply. 5.2 Reasonably Foreseeable Improper Use Improper use of the PA 3010 set may put the user at risk, damage the product and/or the technical equipment connected to the product. Examples of improper use: •... -
Page 10: Application
PA 3010 set 6 Application 6.1 Application Notes When the PA 3010 is supplied with voltage, the LED lights up red continuously. During normal operation, the PA 3010 heats up. This does not represent a malfunction. The housing reaches a temperature approx. 15 °C above room temperature. -
Page 11: Information On Recycling And Disposal
PA 3010 set 7 Information on Recycling and Disposal In accordance with the WEEE Directive 2012/19/EU (Waste of Electrical and Electronic Equipment), the following must be observed: At the end of its service life, this product should be taken to a suitable disposal facility for recycling and disposal. -
Page 12: Customer Service
Fax: +49 (0) 351-430093-22 9 Warranty Langer EMV-Technik GmbH will remedy any fault due to defective material or defective manufacture during the statutory warranty period either by repair or by delivery of spare parts. This warranty is only granted on condition that: - the information and instructions in the user manual have been observed.
