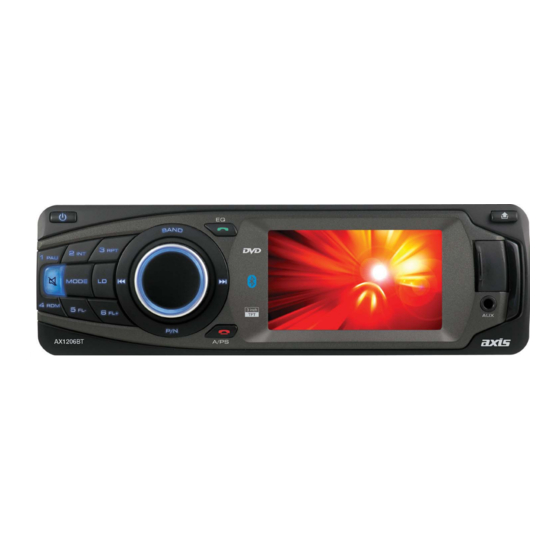

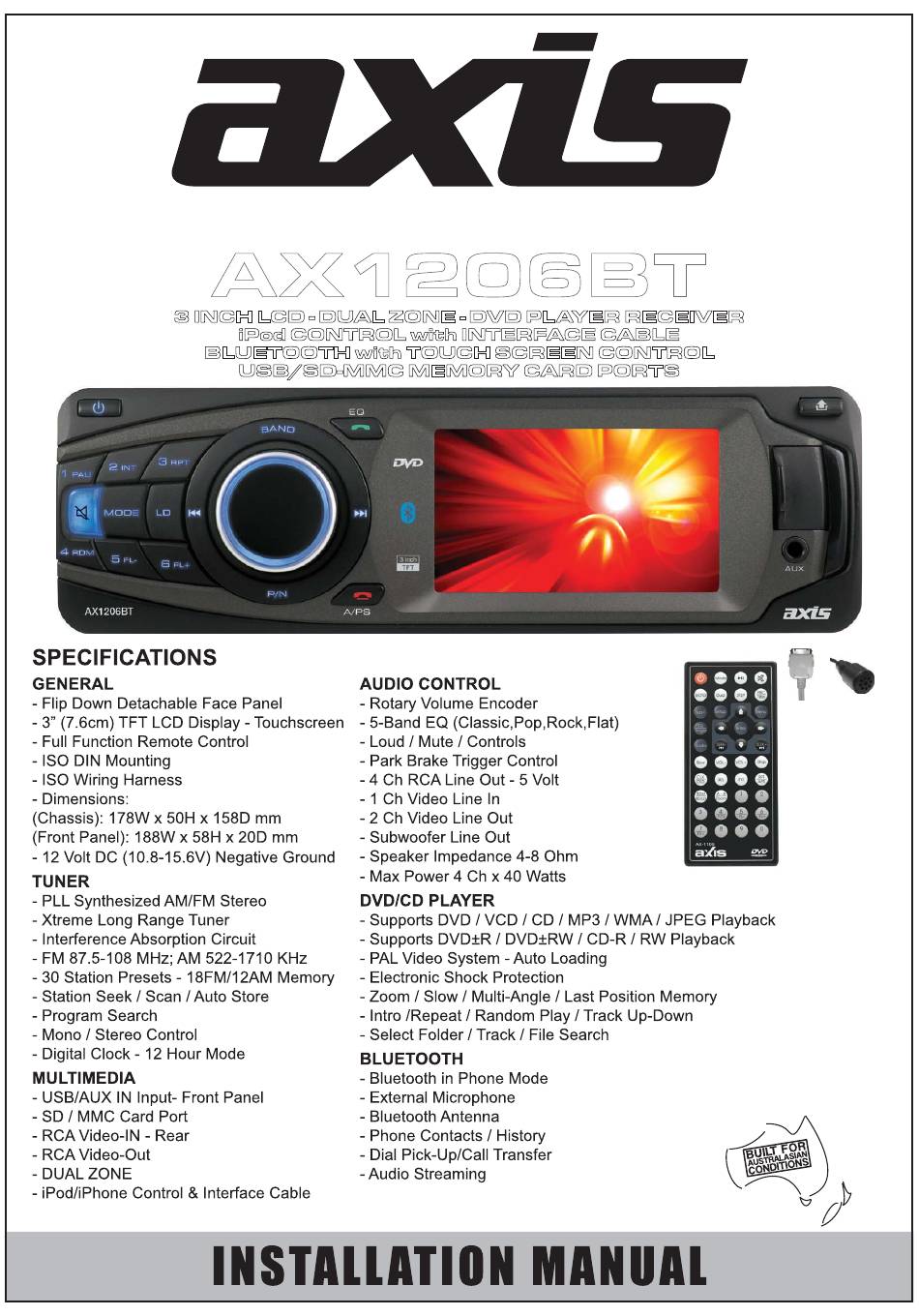

- Page 1 CAR AUDIO AX1206BT 3 INCH LCD - DUAL ZONE - DVD PLAYER RECEIVER iPod CONTROL with INTERFACE CABLE BLUETOOTH with TOUCH SCREEN CONTROL USB/SD-MMC MEMORY CARD PORTS YEAR WARRANTY...
-
Page 2: Installation
INSTALLATION PRECAUTIONS heater) or where it would be subject to dust, dirt or excessive vibration. Mounting angle adjustment Adjust the mounting angle to less than 20°. 182mm MOUNTING EXAMPLE 53mm Installation in the dashboard Release screw and bracket 182mm 53mm Bend these claws, if necessary Note: Keep the release keys in the safe place as you may need them in future to remove the unit. -
Page 3: To Support The Unit
TO SUPPORT THE UNIT 1. UNIT 2. RELEASE CASE Dashboard 3. DASH 4. HEX NUT 5. LOCK WASHER 6. PLAIN WASHER 7. CAR BODY 8. REAR SUPPORT STRAP 9. TAPPING SCREW 10. M5 X 15 HEX BOLT WIRE CONNECTION BLUETOOTH SUBWOOFER BACK GEAR ANTENNA... - Page 4 DRIVING WITHOUT VIDEO DISPLAY (Recommended Installation) Follow the wiring diagram below so when the vehicle is in motion, no video will display on the LCD screen. Only sound can be heard from the speaker system. Operation must comply with safety laws in all Australian & NZ States.
-
Page 5: Function Of Controls
FUNCTION OF CONTROLS 9 16 10 11 (1-6) LOCATIONS OF FUNCTIONS (Source Unit) 1. POWER ON/OFF ( 2. SELECT FUNCTION BUTTON 3. PRESET STATIONS (1,2,3,4,5,6) 4. EQUALIZER CONTROL (EQ) / ANSWER CALL ( 5. LOUDNESS BUTTON (LD) 6. PAL / NTSC SYSTEM (P/N) 7. - Page 6 LOCATION OF FUNCTIONS (Remote Control) 1. POWER ON/OFF 2. MODE 3. PLAY/PAUSE 4. TITLE / PLAYBACK CONTROL 5. SELECT 6. SEEK+/SEEK- / DVD/CD TRACK/SEARCH 7. VOL +/VOL- 8. GOTO 9. AUDIO 10. ENTER 11. NAVIGATION 12. AUTO SEEK / PRESET SCAN / REPEAT 13.
-
Page 7: General Operations
GENERAL OPERATIONS Turning the unit ON/OFF ( Press “ ” button to turn on unit. To turn off, press the button again. Main Menu Press and hold “Menu” on remote control, this is root of the screen hierarchy and you can simply access all features. Selecting a source (MODE) Press MODE repeatedly to switch between TUNER, DISC, USB, SD/MMC, iPOD, BLUETOOTH or AUX IN (if Bluetooth is connected). -
Page 8: Listening To Radio
2. Press and hold MODE. Select memory card or USB source. 3. Press the DUAL button on the remote control to select the desired mode. On the left side of the display you will see one these letters: T = TUNER, C = CARD, U = USB, D=DISC. Continue pressing the DUAL button to cycle through the functions. 4. -
Page 9: Listening To Cd/Mp3/Wma
Stopping Playback 1. Press Stop on remote control during play to stop playback. That position is stored in memory. 2. Press continue. Play starts from the position at which it was stopped. Note: Music playback has no stop function.Use button to pause playback. Fast Forward / Fast Reverse 1. -
Page 10: Playing Dvd/Video Cd/Mp4
PLAYING USB / SD/MMC MEMORY CARD & AUX IN FILES USB PORT AUX IN An external audio source (e.g. portable MP3 player) can be connected to the AUX IN socket to be played back by the vehicle loudspeakers. 1. Connect the AUX IN socket with the audio output of the external device. USB/SD/MMC Memory Card The device is equipped with a USB interface and a memory card reader for SD/MMC cards. - Page 11 Repeat Title – Repeat the current playback title. (Press and hold RPT button) Repeat Chapter – Repeat the current playback chapter. Repeat Off – Turn OFF repeat function. Searching for particular track using GOTO Use the GOTO function to search for a desired track number or particular point of a track to play. 1 Press GOTO on the remote control during playback.
-
Page 12: How To Use Bluetooth In Your Car Audio
HOW TO USE BLUETOOTH IN YOUR CAR AUDIO HOW TO PERFORM PAIRING Bluetooth devices together 1. On Main Menu, tap PHONE > Pairing. 2. Turn on Bluetooth feature of your mobile phone. Perform “Add Bluetooth device” from your mobile phone. The mobile will search for any Bluetooth devices within the range. -
Page 13: Customizing Audio / Video Settings
Car Stereo iPOD Functions Press VOL knob Press SELECT button Selecting a category/Play song Car Stereo and iPOD equivalent key function Note: Please refer to your iPOD user’s manual for operating instructions. CUSTOMIZING AUDIO / VIDEO SETTINGS AUDIO SETUP 1. Press SEL knob to enter AUDIO setup. Selected item will be highlighted. You can set BASS, TREBLE, BALANCE, FADER. 2. -
Page 14: Troubleshooting Guide
CAUTION & MAINTENANCE The detachable panel AM/FM car radio with DVD player is an example of superior design and craftsmanship. The following suggestions will help you care for the product and experience many years of enjoyment. 1. Do not touch the contacts on the front panel or the unit body. 2. -
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS CD/MP3/WMA PLAYER SECTION Signal to Noise Ratio > 60 dB Channel Separation > 50 dB (1kHz) Frequency Response 20Hz - 20 kHz TUNER (FM) Frequency range 87.5 - 108 MHz Sensitivity 2.8 μV Stereo separation 30 dB Signal to noise ratio 50 dB Channel step 100 kHz...
