Page 1

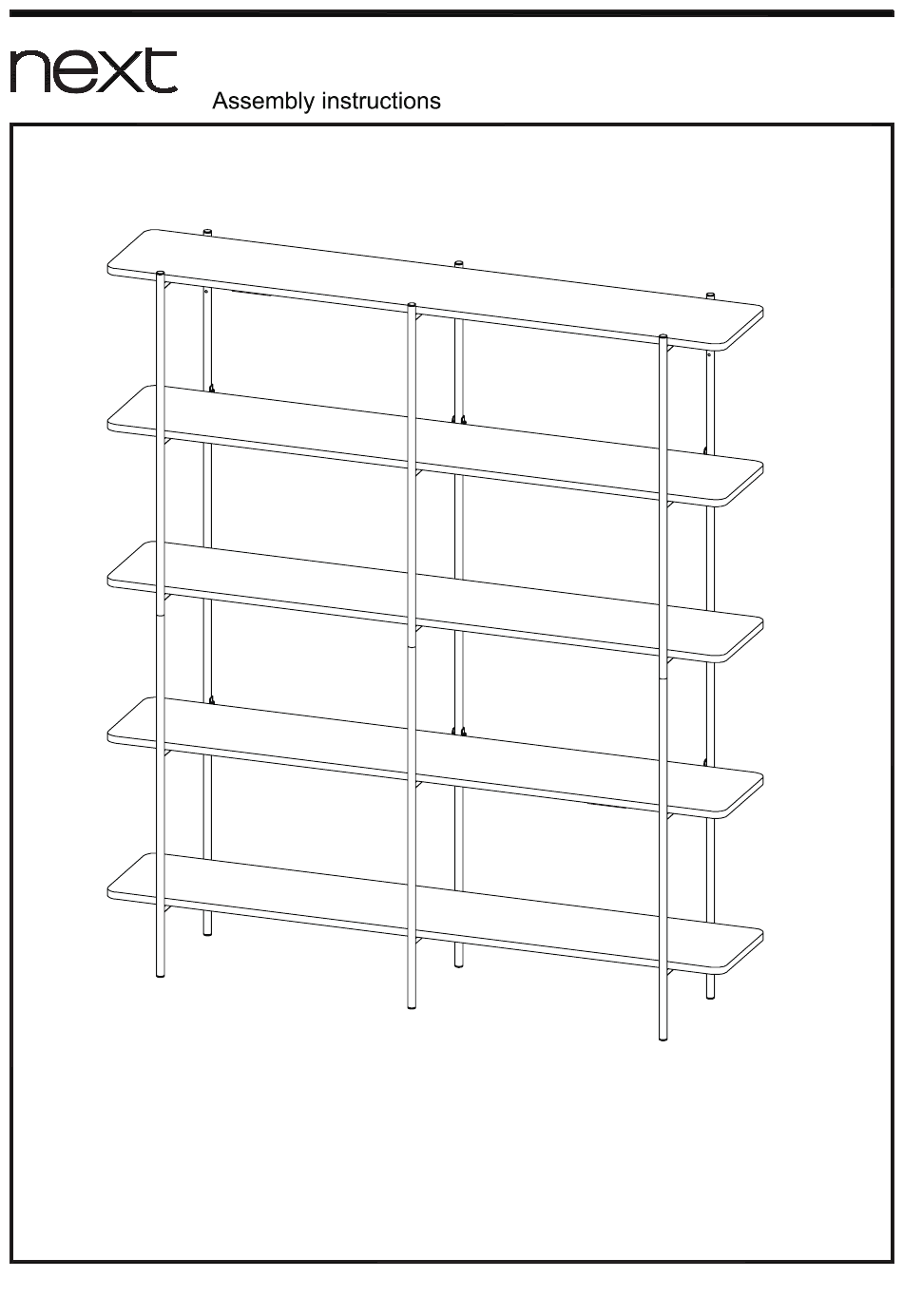

CARTER SHELF 462426 Actual product size H181.5 x D34.5 x W160 cm Need Help ? With: Assembly instruction Missing or damaged parts CALL: 0333 777 8999 IMPORTANT - RETAIN FOR FUTURE REFERENCE Produced in China for Next Retail Ltd. 462426-2019-V1.
Page 2
CARTER SHELF 462426 Warnings We suggest you retain these instructions for future reference Keep fittings out of children’s reach and keep children well away from construction area. This product should only be used on firm, level ground Please periodically check all fittings and re-tighten as necessary...
CARTER SHELF 462426 GETTING TO KNOW YOUR PRODUCT Produced in China for Next Retail Ltd. 462426-2019-V1.
Page 4
CARTER SHELF 462426 Components supplied. Please use this guide if you require replacement parts. Dimensions Visual 915x342mm 925x342mm 915x342mm 925x342mm 915x342mm 925x342mm 666x200mm 629x80mm 1600x299mm Produced in China for Next Retail Ltd. 333885-2019-V1.
Page 5
Extra Fittings M6 x 15 M6 x 28 Fixtures and fittings supplied ( not to scale) Visual Dimensions 70 x 70 x 20mm Produced in China for Next Retail Ltd. Extra Fittings included in case of loss or damage 462426-2019-V1.
Page 6
CARTER SHELF UNWRAP ALL PACKAGING MATERIALS AND PLACE THE COMPONENTS ON A CLEAN SURFACE TO PROTECT IT FROM DAMAGE. UNWRAP ALL PACKAGING MATERIALS AND PLACE THE COMPONENTS ON A CLEAN SURFACE TO PROTECT IT FROM DAMAGE.
Page 8
CARTER SHELF UNWRAP ALL PACKAGING MATERIALS AND PLACE THE COMPONENTS ON A CLEAN SURFACE TO PROTECT IT FROM DAMAGE. UNWRAP ALL PACKAGING MATERIALS AND PLACE THE COMPONENTS ON A CLEAN SURFACE TO PROTECT IT FROM DAMAGE. Please keep all arrows pointed to the front .
