Hatcher Office Drawers
Assembly Instructions
Thank you for your purchase.
Please follow the instructions below for correct assembly.

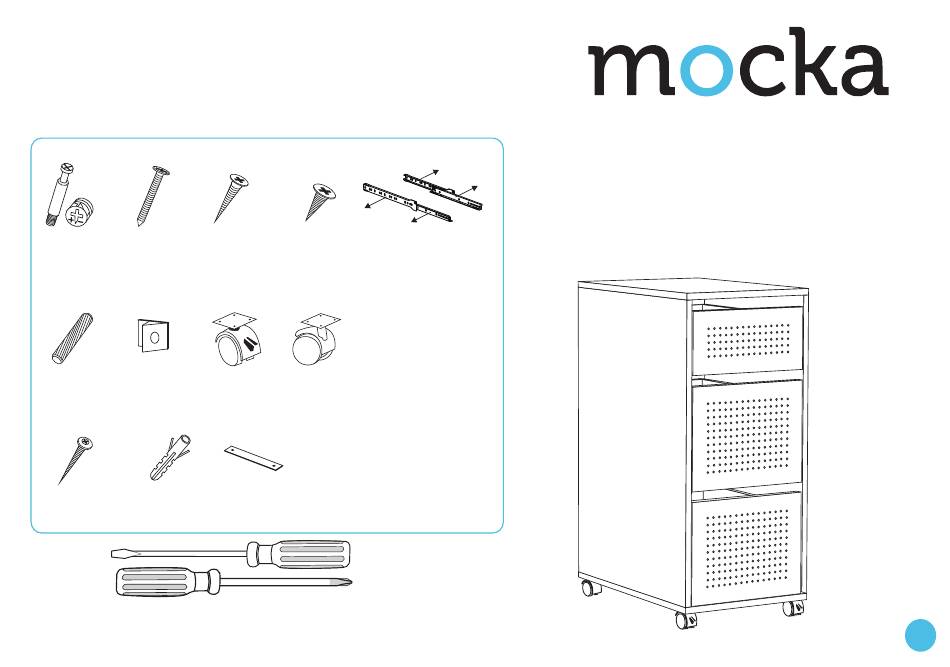

A
B
bolt &
large
medium
locking nut
screw
x24
x12
F
G
dowel
brace
x8
x6
J
K
25mm screw
wall plug
x 1
x 1
Phillips & Flathead screwdrivers required.
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558
C
D
E1
E2
small
screw
screw
x6
x41
H
I
wheel
wheel
x2
x2
L
safety strap
x 1
WARNING:
Any furniture that is not anchored to a wall has the
potential to tip over in certain circumstances, i.e. if a child
E
attempts to climb up on the furniture or in the event of an
E3
earthquake. Accordingly, we recommend that all furniture is
anchored to a wall. We supply a free safety wall anchor with all
E4
furniture sold and we recommend these are used to prevent
your product tipping. The fixing device provided should fit most
wall types, but please note that different wall materials may
rail
require different fixing devices from those supplied.
x6
1
Advertisement
Table of Contents
Summary of Contents for Mocka Hatcher Office Drawers
- Page 1 25mm screw wall plug safety strap Phillips & Flathead screwdrivers required. For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 2 Insert 4 x dowels (F) and 6 x bolts (A) into panel [2]. Attach panel [2] to with 12 x screws (D). Tighten with a screwdriver. panels [3] and [4] and secure with 6 x locking nuts (A) Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 3 Insert 4 x dowels (F) and 6 x bolts (A) into panels [3] and [4]. Attach panel [1] to panels [3] and [4] and secure with 6 x locking nuts (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 4 Slide panel [10] into position as shown. Attach 4 x bolts (A) to panels [7] and [8]. Attach panel [6] to assembled frame and secure with 4 x locking nuts (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 5 (B). Slide panel [10] into position as shown. Attach 4 x bolts (A) to panels [12] and [13]. Attach panel [11] to assembled frame and secure with 4 x locking nuts (A). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 6 Attach 1 x rail (E2) and 1 x rail (E4) to panels [12] and [13] and secure Slide drawers into position as shown, ensuring alignment with rails. with 4 x screws (D). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
- Page 7 Fasten to the wall using 1x wall anchor (K), 1x screw (J). Then attach the safety strap with the Panel with 1x Screw (D). Ensure unit is balanced and steady before use. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydire BC,QLD,4558...
- Page 8 Hatcher Office Drawers Assembly Instructions You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore BC, QLD, 4558...
