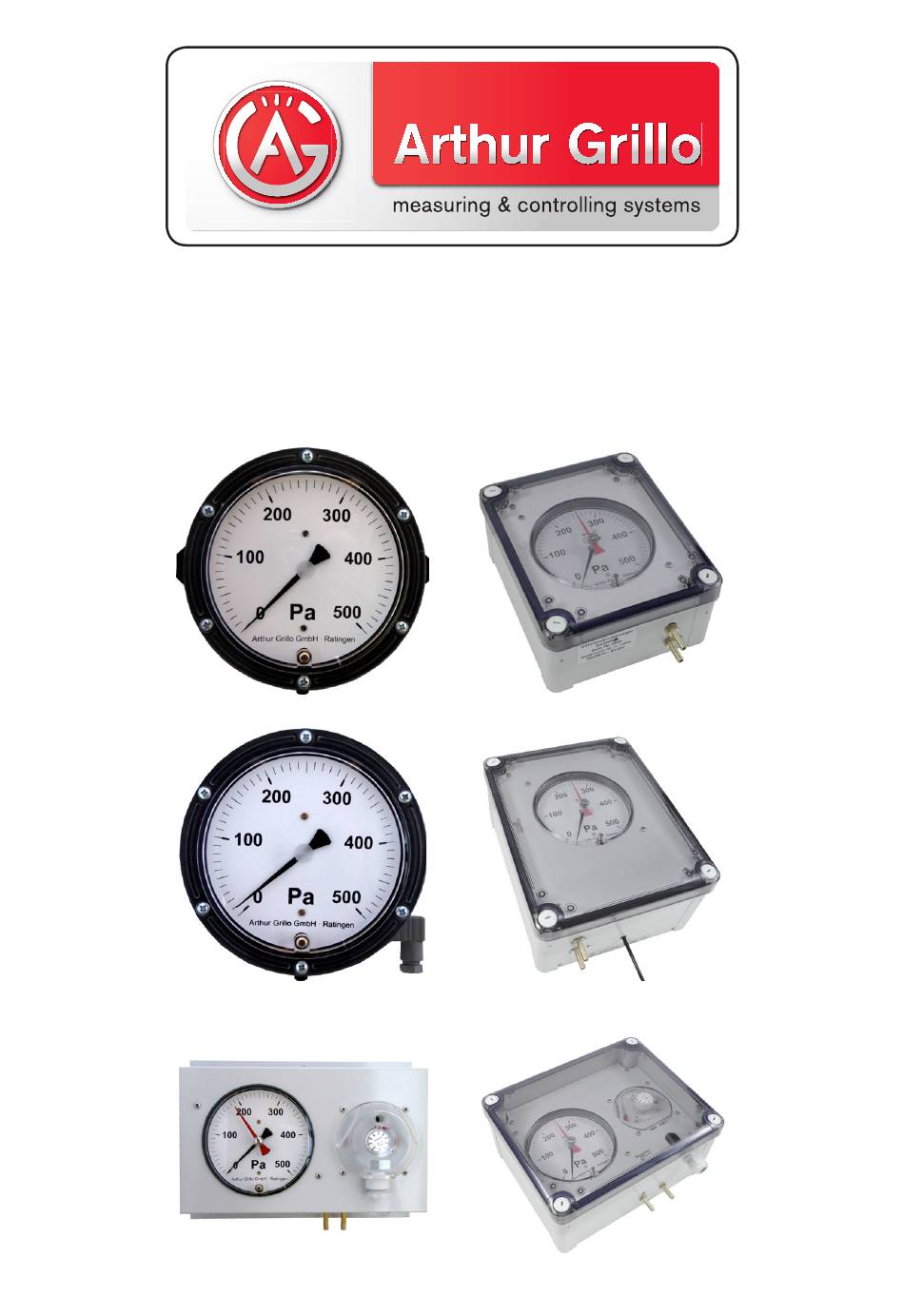

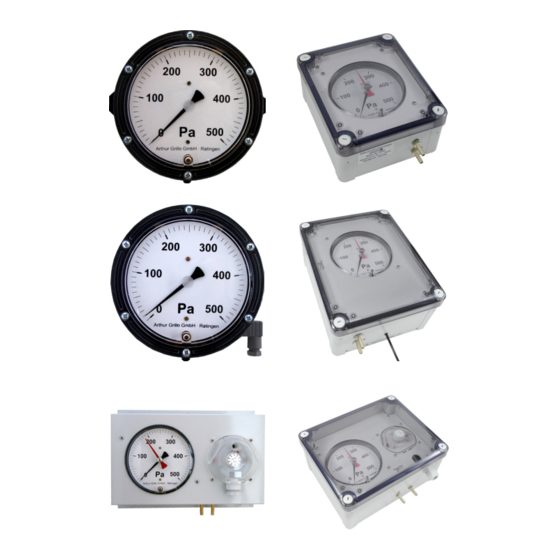

- Page 1 Installation and operation manual Differential pressure manometer - DA2000 series Doc.-no: DA2000-01 issue: 02/2016...
- Page 2 Arthur Grillo GmbH. This applies in particular to duplications, trans- lations, microfilming and storage and processing in electronic systems.
-
Page 3: Table Of Contents
Signal words for safety instructions Used pictograms and symbols General notes Product description Intended use Functional description Installation Dimensions 3.1.1 DA2000 & DA2000-A 3.1.2 DA2000-K 3.1.3 DA2000 series in IP66 protective housing Electrical connection Maintenance Warranty Disposal Specifications CE-labelling Doc.-no: DA2000-01 issue: 02/2016... -
Page 4: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS General safety instructions 1.1 Signal words for safety instructions The safety instructions in this operation manual are designed to prevent hazards. They can be found in the operation manual before an operation / task / activity is described, which can entail a possible hazard. -
Page 5: Product Description
PRODUCT DESCRIPTION Product description The differential pressure manometer of the DA2000 series are build to measures and display pressure, negative pressure or differential pressure of non-aggressive gases. 2.1 Intended use This device is primarily intended for use with air conditioning systems, room pressure control or filter control. -
Page 6: Installation
MONTAGE Installation The devices of the DA2000 series are intended for wall mounting or installation into a corresponding panel. When choosing your location, please note that: • The mounting surface must be solid enough and vibration-free. • The environment has to fulfil the ambient climatic conditions as given in the technical data. -
Page 7: Da2000-K
ABMESSUNGEN Panel mounting (in front of the panel) Panel mounting (behind the panel) Anschlussstutzen Anschlussstutzen HINTEN UNTEN 3.1.2 DA2000-K Wall mounting Doc.-no: DA2000-01 issue: 02/2016... - Page 8 MONTAGE 3.1.3 DA2000 series in IP66 protective housing Wall mounting DA2000-S Wall mounting DA2000-A-S Wall mounting DA2000-K-S Doc.-no: DA2000-01 issue: 02/2016...
-
Page 9: Electrical Connection
MONTAGE 4. Electrical connection DA2000-A Connection diagram two-wire circuit DA2000-A Connection diagram three-wire circuit DA2000-K Connection diagram pressure switch Doc.-no: DA2000-01 issue: 02/2016... -
Page 10: Maintenance
WARRANTY & SUPPORT Maintenance The DA2000 contains no wearing or consumable parts. Servicing is not required. On request, Arthur Grillo GmbH offers an annual calibration with factory certificate. For information, please contact: Arthur Grillo GmbH Phone: 0 21 02 - 47 10 22... -
Page 11: Specifications
TECHNICAL SPECIFICATIONS Specification Manometer Measurment range: 0...100 Pa, 0...200 Pa, 0...500 Pa, 0...1000 Pa, 0...2000 Pa, 0...5000 Pa Display: Scale length 270° = approx. 250 mm Overload protection: not less then 10-times measurment span Static pressure: max. 0,2 bar Pressure connection: hose nozzle 8 mm ø... -
Page 12: Ce-Labelling
DIN EN 61000-6-3:2011-09 standards - Emission standard for residential, commer- cial and light industrial environments You can order the Declaration of Conformity at: Arthur Grillo GmbH Am Sandbach 7 40878 Ratingen Phone: 0 21 02 - 47 10 22 Fax: 0 21 02 - 47 58 82 E-mail: info@grillo-messgeraete.de...
