Model 1102-02A
Strain Gage Load Cell
Installation and Operating Manual
For assistance with the operation of this product,contact:
PCB Load & Torque, Inc.
Toll-free: 866-684-7107
24-hour SensorLine™: 716-684-0001
Fax: 248-888-8266
E-mail: LTInfo@pcbloadtorque.com
Web: www.pcbLoadTorque.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCB LOAD & TORQUE 1102-02A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PCB Piezotronics PCB LOAD & TORQUE 1102-02A

Summary of Contents for PCB Piezotronics PCB LOAD & TORQUE 1102-02A

  • Page 1 Model 1102-02A Strain Gage Load Cell Installation and Operating Manual For assistance with the operation of this product,contact: PCB Load & Torque, Inc. Toll-free: 866-684-7107 24-hour SensorLine™: 716-684-0001 Fax: 248-888-8266 E-mail: LTInfo@pcbloadtorque.com Web: www.pcbLoadTorque.com...

  • Page 2: Repair And Maintenance

     Assistance is needed to safely operate equipment  PCB Piezotronics is an ISO-9001 certified company whose Damage is visible or suspected  calibration services are accredited by A2LA to ISO/IEC Equipment fails or malfunctions 17025, with full traceability to SI through N.I.S.T.
  • Page 3 CAUTION Refers to hazards that could damage the instrument. NOTE Indicates tips, recommendations and important information. The notes simplify processes and contain additional information on particular operating steps. The following symbols may be found on the equipment described in this manual: This symbol on the unit indicates that high voltage may be present.
  • Page 4 PCB工业监视和测量设备 - 中国RoHS2公布表 PCB Industrial Monitoring and Measuring Equipment - China RoHS 2 Disclosure Table 有害物质 镉 汞 铅 (Pb) 六价铬 (Cr(VI)) 多溴联苯 (PBB) 多溴二苯醚 (PBDE) 部件名称 (Hg) (Cd) 住房 PCB板 电气连接器 压电晶体 环氧 铁氟龙 电子 厚膜基板 电线 电缆 塑料 焊接...
  • Page 5 Component Name Hazardous Substances Lead (Pb) Mercury (Hg) Cadmium (Cd) Chromium VI Polybrominated Polybrominated Compounds Biphenyls (PBB) Diphenyl Ethers (Cr(VI)) (PBDE) Housing PCB Board Electrical Connectors Piezoelectric Crystals Epoxy Teflon Electronics Thick Film Substrate Wires Cables Plastic Solder Copper Alloy/Brass This table is prepared in accordance with the provisions of SJ/T 11364.
  • Page 6 CANISTER LOAD CELL OPERATION MANUAL TABLE OF CONTENTS 1.0 INTRODUCTION ........................2 2.0 SAFETY PRECAUTIONS ....................2 3.0 OVERVIEW .......................... 2 3.1 Dimensions ............................2 3.2 Optional Components ........................2 4.0 MECHANICAL INSTALLATION ..................2 5.0 ELECTRICAL INSTALLATION ................... 3 5.1 Electrical Drawing / Western Regional Std.

  • Page 7: Safety Precautions

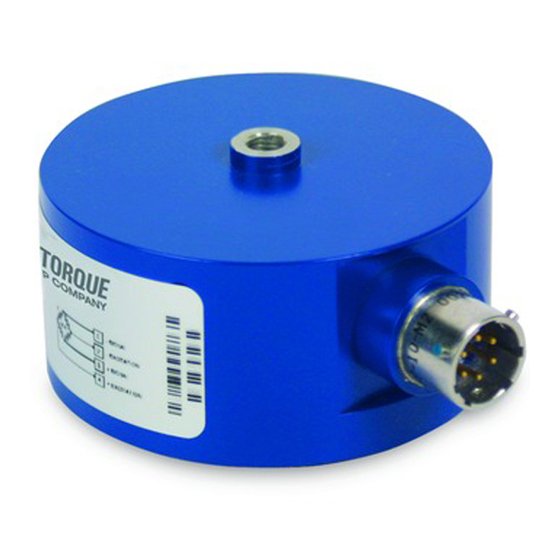

    CANISTER LOAD CELL OPERATION MANUAL 3.1 Dimensions 1.0 INTRODUCTION General purpose canister load cells manufactured by PCB Load & Torque are suitable for a wide range of general force measurement applications, including weighing, dynamometer use, and static material test machines. These load cells operate in tension and compression.

  • Page 8: Electrical Installation

    CANISTER LOAD CELL OPERATION MANUAL 5.3 Cable & Grounding Considerations 5.0 ELECTRICAL INSTALLATION Proper grounding and shielding is required to prevent Table 4 - Electrical Connections electrical noise in strain gage load cell measuring systems. Load Cell Receptacle: PT02E-10-6P The cable must be shielded twisted pairs with a drain wire. Mating Connector: PT02A-10-6S PCB Load &...
  • Page 9 CANISTER LOAD CELL OPERATION MANUAL 6.1.1 Measured Output 7.0 SHUNT CALIBRATION DESCRIPTION The applied load starting at zero is measured in five Shunt calibration is used to simulate a known tension or increments to full scale. Output (mV/V) is measured at each compression load on a load cell.

  • Page 10: Maintenance

    CANISTER LOAD CELL OPERATION MANUAL 8.0 MAINTENANCE 10. Keep a record of your observations, correct problems, or contact PCB factory for assistance. Routine maintenance of the canister style load cell should include cleaning the electrical connectors, housings, and mounting surfaces with solutions and techniques that will not 10.0 CALIBRATION / REPAIR SERVICES harm the physical material of construction.
  • Page 11 Model Number Revision: J STRAIN GAGE LOAD CELL 1102-02A ECN #: 43815 Performance ENGLISH OPTIONAL VERSIONS Measurement Range 100 lb 445 N Optional versions have identical specifications and accessories as listed for the standard Sensitivity(± 10 %) 2 mV/V 2 mV/V model except where noted below.
  • Page 12 PCB Load & Torque Inc. claims proprietary rights in REVISIONS the information disclosed hereon. Neither it nor any reproduction thereof will be disclosed to others without DESCRIPTION the written consent of PCB Load and Torque Inc. ADDED NOTE 1, WIRING CODE 38165 PT02E-10-6P RECEPTACLE WIRING CODE...
