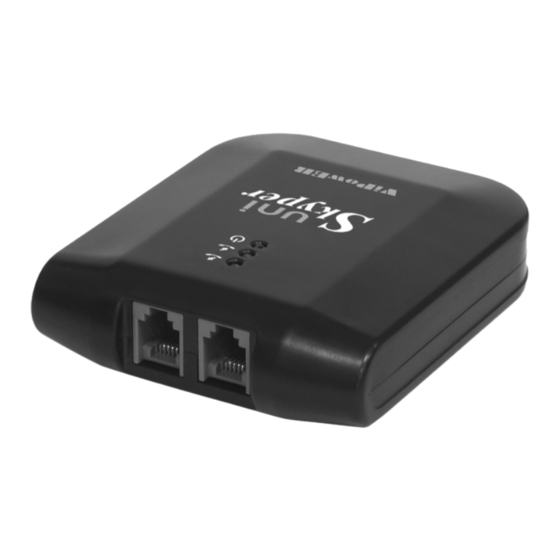

VIPowER Uni Skyper VPET-20 User Manual
  1. Manuals
  2. Brands
  3. VIPowER Manuals
  4. IP Phone
  5. Uni Skyper VPET-20
  6. User manual

VIPowER Uni Skyper VPET-20 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Uni Skyper VPET-20 and is the answer not in the manual?

Questions and answers

Summary of Contents for VIPowER Uni Skyper VPET-20

  • Page 2: Table Of Contents

    Table of Contents: 1. Indication Light………………………………………………………………………1 Software Installation 2. Software for Skype……………………………………………..1 3. Driver for VPET-20………………………………………………7 Hardware Installation 4. Connection Scheme…………………………………………..9 Making Calls 5. Preparation for Making Calls………………………………..10 6. How to Make a Call…………………………......13 Features 7. How to Receive Calls…………………………………………..16 8.

  • Page 3: Light

    ViPowER USB-VoIP Phone (Version:2005.11.16) User Manual for VPET-20 1. Indication Light WORK: it is steadily when standby; it is flashing when in use RCV: it is when receiving incoming calls; it is off when standby DIAL: it is when dialing out or receiving incoming calls; it is off when standby.
  • Page 4 ViPowER USB-VoIP Phone (Version:2005.11.16) You can continue to install Skype in your PC only after accepting the agreement. If you do not accept the agreement, you will exit the wizard. Now, Skype has been installed successfully in your PC. Click launch Skype.
  • Page 5 ViPowER USB-VoIP Phone (Version:2005.11.16) Log in to Skype: If this is your first time to log in to Skype, a box will popup: 2.3.1. If you already have a Skype account, click “Existing User - Log in to Skype”, and enter the “Skype Name” and “Password”: Then, click “Next”...
  • Page 6 ViPowER USB-VoIP Phone (Version:2005.11.16) 2.3.2. If you do not have a Skype account, please register as the wizard: Ignore the coming pages. The system will log in to Skype automatically. 2.4. Add Skype Names to your contacts list Like other IM software (MSN.QICQ.QQ), you should add your friends’ Skype Names on your contact list before you want to start making calls.
  • Page 7 ViPowER USB-VoIP Phone (Version:2005.11.16) 2.4.1 If you know your friend’s Skype Name, please do the followings: Left click , then a box will popup: Enter your friend’s Skype Name, and click . . For example, add ben. zhao (my friend’s Skype Name) to my contacts list.
  • Page 8 ViPowER USB-VoIP Phone (Version:2005.11.16) The result is marked with red line: Left click the correct Skype Name and click to add this Skype Name on your contacts list. Then you will see this Skype Name on your contacts list: www.vipower.com...

  • Page 9: Driver For Vpet-20

    ViPowER USB-VoIP Phone (Version:2005.11.16) 2.4.2 If someone sends a request to you, you can decide to accept or reject his or her request . For example, if Wang (Skype Name) sends a request to you: You can click to accept this request and add Wang on your contact list.
  • Page 10 ViPowER USB-VoIP Phone (Version:2005.11.16) You can continue to install the driver for VPET-20 only after accepting the terms in the license agreement. You will exit the wizard if you do not accept the agreement. www.vipower.com...

  • Page 11: Connection Scheme

    ViPowER USB-VoIP Phone (Version:2005.11.16) Now, the driver for VPET-20 has installed successfully in your PC. Then there is a figure like on the desktop. Check the version about this driver 3.2.1. Right click in the taskbar 3.2.2. Left click “ABOUT”...

  • Page 12: Preparation For Making Calls

    ViPowER USB-VoIP Phone (Version:2005.11.16) Connect VPET-20 with PC through the USB cable placed in the package. Note: If you use your USB Hub to increase your USB port, you will need an external power adapter when you want to use VPET-20 5.
  • Page 13 ViPowER USB-VoIP Phone (Version:2005.11.16) Please select “Allow this program to use Skype” 5.2. Make sure there is a figure like at the bottom of Skype. You can establish bidirectional communication with other Skype users only if that figure appears. www.vipower.com...
  • Page 14 ViPowER USB-VoIP Phone (Version:2005.11.16) 5.3. Make sure that Generic USB Audio Device is selected for the default Audio Device. Start Settings Control Panel Sounds and Audio Devices It is recommended to select “Use only default devices”. This setup will always enable you to play MP3 music while you are on Skype.

  • Page 15: How To Make A Call

    ViPowER USB-VoIP Phone (Version:2005.11.16) 6. How to Make a Call 6.1. To make a Skype call For example, if you want to make a call to John Smith (my friend’s Skype name). You should assign a speed-dial number for John Smith first. Since the regular phone only supports digital dialing plan, therefore they can only accept numbers from 0 to 9.
  • Page 16 ViPowER USB-VoIP Phone (Version:2005.11.16) 6.1.2 Choose Speed Dial Number, the range is from 00 to 99. For example, assign 99 to John Smith: Click OK buttom to save the setting. Note: the special service numbers in each country (such as 911 in the United States) are prohibited to be set as the Speed Dial Number.
  • Page 17 ViPowER USB-VoIP Phone (Version:2005.11.16) To make a PSTN or mobile phone number 6.2.1 To make a PSTN or mobile phone number through PSTN line Through the PSTN line connected with VPET-20, you can use any regular phone to make a PSTN or mobile phone number. For example, if you want to dial +86-755-11111111 6.2.1.1 Pick up the handset of the regular phone...

  • Page 18: How To Receive Calls

    ViPowER USB-VoIP Phone (Version:2005.11.16) 7. How to Receive Calls When someone calls your Skype or PSTN number, the regular phone will ring. Pick up the handset or press the Handfree to receive it. When the call is ended, please put down the handset or press the Handfree again.
  • Page 19 ViPowER USB-VoIP Phone (Version:2005.11.16) restriction. The status of PSTN line should be idle. For example, if you want to forward incoming Skype calls to 13811111111 (my mobile phone number), you need to go through the following steps: 8.1.1 Setup the Parameters 8.1.1.1 Right click...

  • Page 20: Trouble Shooting

    ViPowER USB-VoIP Phone (Version:2005.11.16) 8.1.2 Cancel Forwarding Function When you want to cancel forwarding function, you should go through the following steps: 8.1.2.1. Make “CALL FORWARDING - PSTN” inefficient, like 8.1.2.2. Make “ringtone” efficient, like When VPET-20 is connected with PBX as an extension In your PBX, you need to press 0 to catch the idle trunk line, then dial the mobile phone number, that is to say, there is an interval between 0 and the mobile phone number.

  • Page 21: Faq

    ViPowER USB-VoIP Phone (Version:2005.11.16) VPET-20 does not work well with my PBX a. The voltage of the extension interface in your PBX should be 48V b. The extension interface should be analog interface, not digital interface c. Simple PBX with less than 2-way co line and 4-way extension can not link with other device, such as VPET-20.
  • Page 22 ViPowER USB-VoIP Phone (Version:2005.11.16) to as land line. 10.2. What is PBX? PBX: Private Branch Exchange, a private telephone switching system that allows telephone extensions to connect to each other both inside and outside a telecommunication network. 10.2.1 Can VPET-20 function under PBX? Yes, VPET-20 is applicable under PBX, but please be advised that do not connect the PBX phone with VPET-20.
  • Page 23 ViPowER USB-VoIP Phone (Version:2005.11.16) Due to the difference in FSK, only the specially designed VPET-20 for Japan will be able to provide the Caller ID function. 10.5. What is the requirement for USB interface in your PC? The USB interface in your PC must be 1.1 or above.

  • Page 24: Cautions

    ViPowER USB-VoIP Phone (Version:2005.11.16) 10.10. The color of the VPET-20 icon in the task bar changes, why? Be advised that the color of the icon changes from red to yellow when Call orwarding function is being performed. 10.11 I could only use my cordless phone but not the microphone for Skype.
