TOOLS NEEDED:
3/16" ALLEN KEY
5/32" ALLEN KEY
PARTS INCLUDED:
RIGHT BED PANEL BRACKETS
2 PER PANEL
LEFT BED PANEL BRACKETS
2 PER PANEL
END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL
BED SYSTEM 144/170 WB 2006+ MB SPRINTER
5/16" TWIRL NUT
4 PER PANEL
1 AMPULE LOCTITE
5/16 RAIL NUT
16 FOR BED FRAME
8 PER PANEL
5/16"-18 X 5/8" FLANGED BUT-
TONHEAD CAP BOLT
12 PER PANEL
1/4"-20 X 3/4" FLANGED BUT-
TON HEAD CAP BOLT
12 PER PANEL

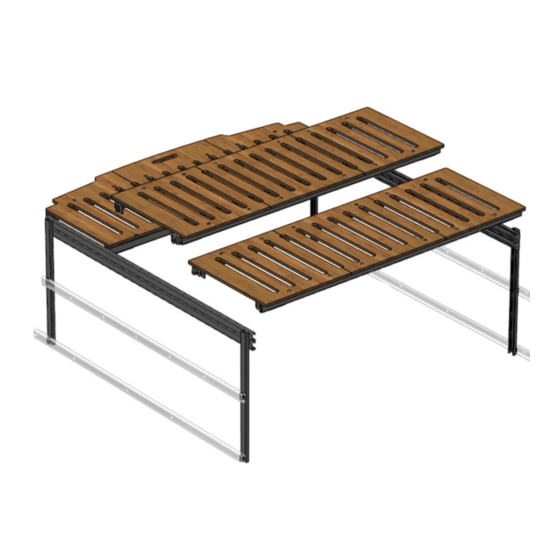

3 PANEL (QUEEN) BED SYSTEM SHOWN
WWW.ROOSTVANS.COM (971) 236-6684
PORTLAND, OREGON
PG.
1
Advertisement
Summary of Contents for Roost BED SYSTEM
- Page 1 2 PER PANEL 1/4”-20 X 3/4” FLANGED BUT- TON HEAD CAP BOLT 12 PER PANEL 3 PANEL (QUEEN) BED SYSTEM SHOWN END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON BED SYSTEM 144/170 WB 2006+ MB SPRINTER WWW.ROOSTVANS.COM (971) 236-6684...
- Page 2 PROPERLY ENGAGING RAILS AS SHOWN. NOTE ORIENTATION OF LEFT AND RIGHT BRACKETS ENSURE RAIL NUTS ARE PROPERLY ENGAGING INSIDE OF RAIL END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON WWW.ROOSTVANS.COM (971) 236-6684 BED SYSTEM 144/170 WB 2006+ MB SPRINTER...
- Page 3 ENSURE THAT RAIL NUTS ARE PROPERLY ENGAGING RAILS AS SHOWN. NOTE LEFT AND RIGHT BRACKETS ENSURE RAIL NUTS ARE PROPERLY ENGAGING INSIDE OF RAIL END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON BED SYSTEM 144/170 WB 2006+ MB SPRINTER WWW.ROOSTVANS.COM (971) 236-6684...
- Page 4 NOTE BED POST IS FLUSH WITH FRONT OF MOUNTING RAIL ON BOTH SIDES ENSURE RAIL NUTS ARE PROPERLY ENGAGING INSIDE OF RAIL END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON WWW.ROOSTVANS.COM (971) 236-6684 BED SYSTEM 144/170 WB 2006+ MB SPRINTER...
- Page 5 MOUNTING KIT, TIGHTENING ALL 8 BOLTS. SECURE ALL 8 BED POST BOLTS ENSURE RAIL NUTS ARE PROPERLY ENGAGING INSIDE OF RAIL END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON BED SYSTEM 144/170 WB 2006+ MB SPRINTER WWW.ROOSTVANS.COM (971) 236-6684...
- Page 6 LOOSEN AND ADJUST HEIGHT OF BED RAIL TO MATCH ON BOTH SIDES ENSURE RAIL NUTS ARE PROPERLY ENGAGING INSIDE OF RAIL END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON WWW.ROOSTVANS.COM (971) 236-6684 BED SYSTEM 144/170 WB 2006+ MB SPRINTER...
- Page 7 INSTALL INTO TWIRL NUTS LEAVING PLENTY OF THREAD EXPOSED. THESE WILL BE POSITIONED AND TIGHTENED LATER. SPRING NUT IS FULLY ENGAGED END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON BED SYSTEM 144/170 WB 2006+ MB SPRINTER WWW.ROOSTVANS.COM (971) 236-6684...
- Page 8 BUT THIS STEP CAN BENEFIT FROM TWO PEOPLE DURING INITIAL SETUP. BED BRACKET WRAPS AROUND BOLT AND BED BRACKET RESTS ON TOP OF BED RAIL END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON WWW.ROOSTVANS.COM (971) 236-6684 BED SYSTEM 144/170 WB 2006+ MB SPRINTER...
- Page 9 FINAL STEP - TIGHTEN THESE BOLTS TO BED BRACKETS AFTER PANELS ARE PROP- ERLY POSITIONED AND BED RAIL BOLTS ARE TIGHTENED END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON BED SYSTEM 144/170 WB 2006+ MB SPRINTER WWW.ROOSTVANS.COM (971) 236-6684...
- Page 10 INSTALL ONTO MOUNTING KIT IN THE SAME MANNER AS THE BED RAIL NOTED ABOVE. ADDITIONAL MOUNTING HARDWARE CAN BE PUR- CHASED IF NEEDED. END USER ASSEMBLY AND INSTALLATION INSTRUCTION MANUAL PORTLAND, OREGON WWW.ROOSTVANS.COM (971) 236-6684 BED SYSTEM 144/170 WB 2006+ MB SPRINTER...
