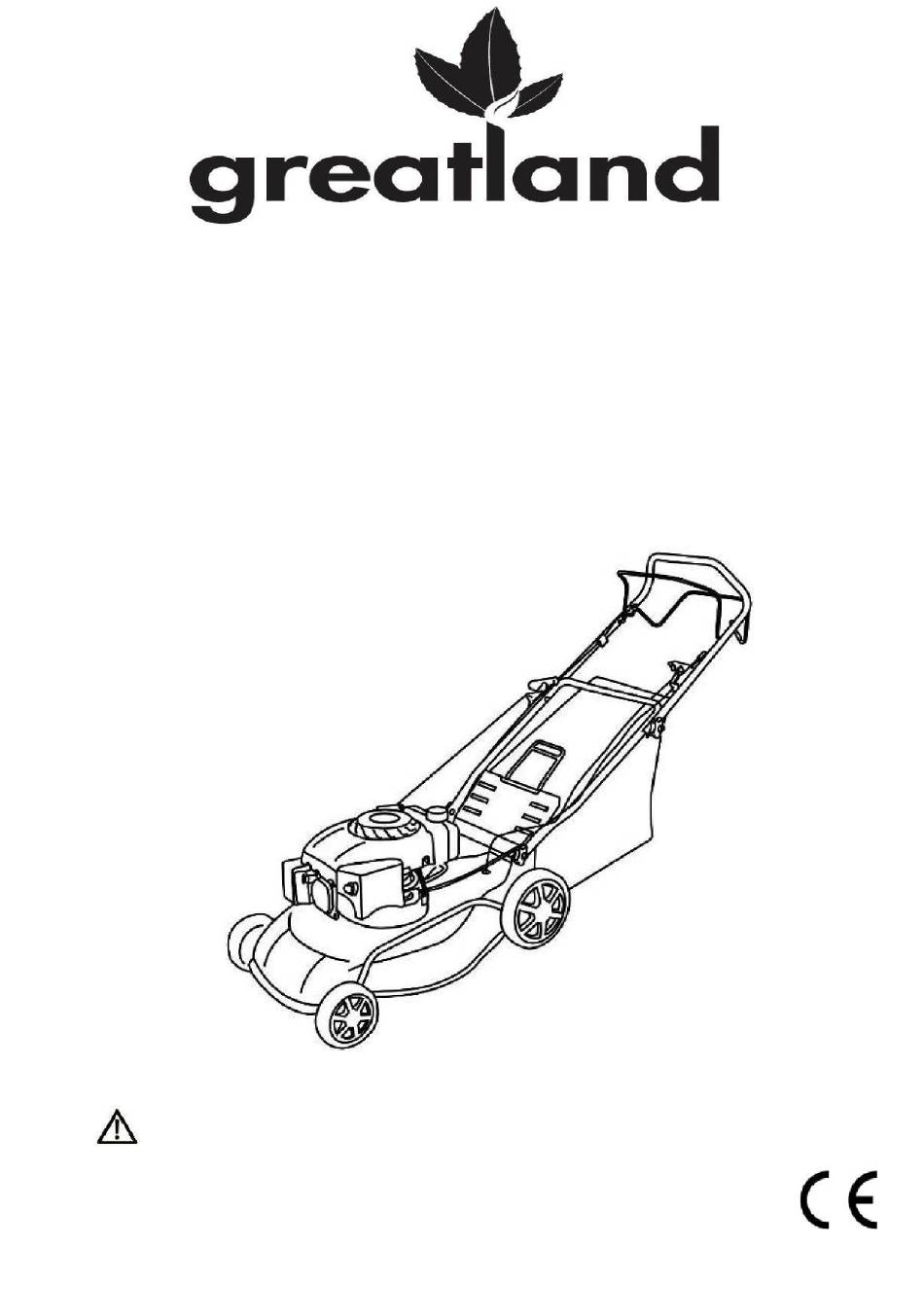

ORIGINAL INSTRUCTION MANUAL
PETROL LAWNMOWERS
GL / LK 41 99 cc OHV - GL 46 139 cc OHV - GL 46 SP 139 cc OHV-
GL / LK 46 SP B&S – GL 51 SP HW SM 173 cc OHV – GL / LK 51 SP HW SM B&S)
(mod. : TZ41PB-99, TZ46PB-139, TZ46SB-139, TZ46SB-BS450E, TZ51SF-173, TZ51SF-
BS625EX)
READ THIS MANUAL CAREFULLY BEFORE OPERATING THE
MACHINE KEEP THIS MANUAL FOR FUTURE USES
WARNING THIS SYMBOL INDICATES IMPORTANT SAFETY FEATURES
Serial number :
1
Advertisement
Table of Contents
Related Manuals for GREATLAND GL 41 99 cc OHV
Summary of Contents for GREATLAND GL 41 99 cc OHV
- Page 1 ORIGINAL INSTRUCTION MANUAL PETROL LAWNMOWERS GL / LK 41 99 cc OHV - GL 46 139 cc OHV - GL 46 SP 139 cc OHV- GL / LK 46 SP B&S – GL 51 SP HW SM 173 cc OHV – GL / LK 51 SP HW SM B&S) (mod.
-
Page 2: Table Of Contents
CONTENT Introduction ..................................Safety instructions ................................Training Preparation Operation Maintenance and storage Product specifications ..............................Definition of symbols ................................. Nomenclature ..................................Unpacking and set up instructions ..........................Removal from the carton Disconnect the spark plug Items required for assembly Assembly of the handle Cutting height adjustment Operating ..................................... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing the petrol lawnmower from GREATLAND. This manual explains how to use the machine correctly. Before using it, please read this operator’s manual carefully, to ensure correct and safe operation. Due to ongoing changes of specification, all the details of your machine may not agree with this manual. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS TRAINING Read the instructions carefully in its entirety before assembling this machine. Read, understand and follow all instructions on the machine and in the manual before the first operation. Be completely familiar with the controls and the proper use of the equipment. ... -
Page 5: Operation
WARNING ! DANGER ! Petrol is highly flammable !! Store fuel only in containers specifically designed and approved for this purpose ; Refuel outdoors only with the engine stopped and do not smoke while refueling ; Add fuel before starting the engine. Never remove the cap of the fuel tank or add petrol while the engine is running or when the engine is hot ;... -
Page 6: Maintenance And Storage
Do not mow excessively steep slopes; Use extreme caution when reversing or pulling the lawn mower towards you; Stop the blade(s) if the lawn mower has to be tilted for transportation when crossing surfaces other than grass, and when transporting the lawn mower to and from the area to be mowed; ... -
Page 7: Product Specifications
PRODUCT SPECIFICATIONS GL 51 SP GL / LK 51 GL 46 SP GL / LK 46 SP HW SM SP HW SM GL / LK 41 99 GL 46 139 139cc B&S 173 cc B&S TOT911333/ TOT911331/ Gardif model TOT911374 TOT911375 TOT911332 TOT911330 TOT911310... - Page 8 Measurement K=3dB(A) K=3dB(A) K=3dB(A) K=3dB(A) K=3dB(A) K=3dB(A) uncertainty A-weighted sound power level, determined in 92.3dB(A) 93.6dB(A) 93.6dB(A) 93.9dB(A) 95.6dB(A) 95.6dB(A) accordance with ISO 5395- 1:2013, Annex F Measurement 2.01dB(A) 1.85dB(A) 1.85dB(A) 2.05dB(A) 2.29dB(A) 2.17dB(A) uncertainty Guaranteed sound power 96dB(A) 96dB(A) 96dB(A) 96dB(A) 98dB(A)
-
Page 9: Definition Of Symbols
DEFINITION OF SYMBOLS 1 : DANGER ! WARNING ! ATTENTION 2 : Read the operating and service instruction manual carefully. Be thoroughly familiar with the controls and the proper use of the lawnmower. 3 : Projection hazard. Beware of thrown objects. 4 : Never mow while people, especially children or pets, are nearby. -
Page 10: Nomenclature
NOMENCLATURE 1 : Fly brake lever or Operators Presence Control (OPC) 2 : Upper handle GL 46 3 : Traction lever (not valid for model and GL / LK 41) 4 : Throttle control (not valid for GL/ LK 41) 5 : Accelerator (speed) cable (not valid for GL / LK 41) 6 : Bolts 7 : Lower handle... -
Page 11: Unpacking And Set Up Instructions
UNPACKING & SET UP INSTRUCTIONS Use of safety gloves is imperative while performing adjustment or repair of the machine A- Removal from the carton – WARNING Unpacking and completing the assembly should be done a flat, stable surface with enough space for machine handling and its packaging. -
Page 12: Items Required For Assembly
C- Items required for assembly Pliers (may be useful) 0.6 Litre SAE 30 Oil Fresh Petrol – IMPORTANT This lawnmower is shipped without fuel and oil. Ensure machine is oiled and fuelled as detailed in this manual before starting the engine. -
Page 13: Operating
OPERATING KEEP HANDS AND FEET AWAY FROM THE REAR DISCHARGE ON THE CUTTING DECK Grass box assembly Put the metal frame inside the grass collector. Fiw the bag onto the frame securely. Lift the rear flap / deflector and attach the grass collector in place, on rear of the mower. -
Page 14: Side Discharge
E- Side discharge (only on GL 51 SP HW SM) Lift the side discharge shutter on the cutting deck Attach the side discharge shutter in place, in the hooks provided for this purpose. Release the shutter so it also compresses the deflector against the deck. Caution: Leave the mulch plug in place to use the mower with the side discharge function. -
Page 15: Starting A Warmed Up Engine
4. The flywheel brake lever / operators presence control / OPC handle is located in the upper handle of the lawnmower. The handle must be depressed to allow the ignition and held against the upper handle. 5. The recoil starter handle is attached to the upper handle on the right hand side. When starting, always stand behind the lawnmower in the operating position. -
Page 16: Self Propelled Mower
D- Self propelled mower (not valid for mod. GL / LK 41 and GL 46 Once engine has been started, push the traction lever up against the upper handle and keep it in this position. The mower now starts to move. To stop the mower, release the lever. -
Page 17: Maintenance
MAINTENANCE Stop the engine and disconnect and earth the spark plug before any repairing or maintenance operations. Use of safety gloves is imperative while performing adjustment or repair of the machine Only use original spare parts – Complicated operations not listed here below - must be carried out by a specialized technical assistance centre. -
Page 18: Deck Housing
E- Deck housing Remove all grass debris from the underside of the cutting deck immediately after each use. If allowed to accumulate, it will cause rust and corrosion and may prevent proper collection. Fertilisers and top dressings are extremely corrosive. Thoroughly clean the cutting deck immediately after use on treated grass and store them well away from corrosive materials. -
Page 19: Ec Declaration Of Conformity
We,company, GARDIF 60 AVE DE BRUXELLES Z.A. DE L’EUROPE 77310 PONTHIERRY FRANCE The undersigner, Bruno VAN ELSLANDE, Managing Director, GREATLAND Declare that petrol mowers branded: models GL 46 SP 139 cc OHV equipped with engines 139cm TZ46SB-139 TOT911330 Factory models:... - Page 20 TZ46SB-139 For model Measured noise power level m : 93.6 dB(A) Guaranteed noise power level g : 96 dB(A) TZ46SB-BS450E For model Measured noise power level m : 93.9 dB(A) Guaranteed noise power level g : 96 dB(A) TZ51SF-173 For model Measured noise power level m : 95.6 dB(A) Guaranteed noise power level...
