Grove - Slide Potentiometer

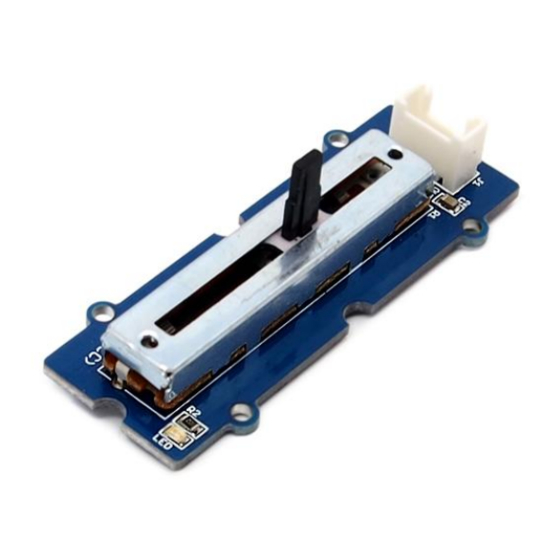

The Grove - Slide Potentiometer module incorporates a linear variable resistor with
a maximum resistance of 10KΩ. When you move the slider from one side to the
other, its output voltage will range from 0 V to the Vcc you apply. It connects to the
other Grove modules through a standard 4-Pin
connected to OUT (Pin 1), Vcc (Pin 3) and GND (Pin 4), while the fourth pin (Pin 2) is
connected to a on-board green indicator LED. The LED is used to visually represent
the resistance change on the potentiometer.
Features
30 mm long slide length
o
Linear resistance taper
o
Grove compatible
o
Specifications
Item
Voltage (DC)
Current
Dimension
Net Weight
Rotational life
Min
Typical
3.3V
5.0V
-
-
24mm x60mm
8.6g
>15,000 cycles
Grove
Cable. Three of the pins are
Max
30V
30mA
