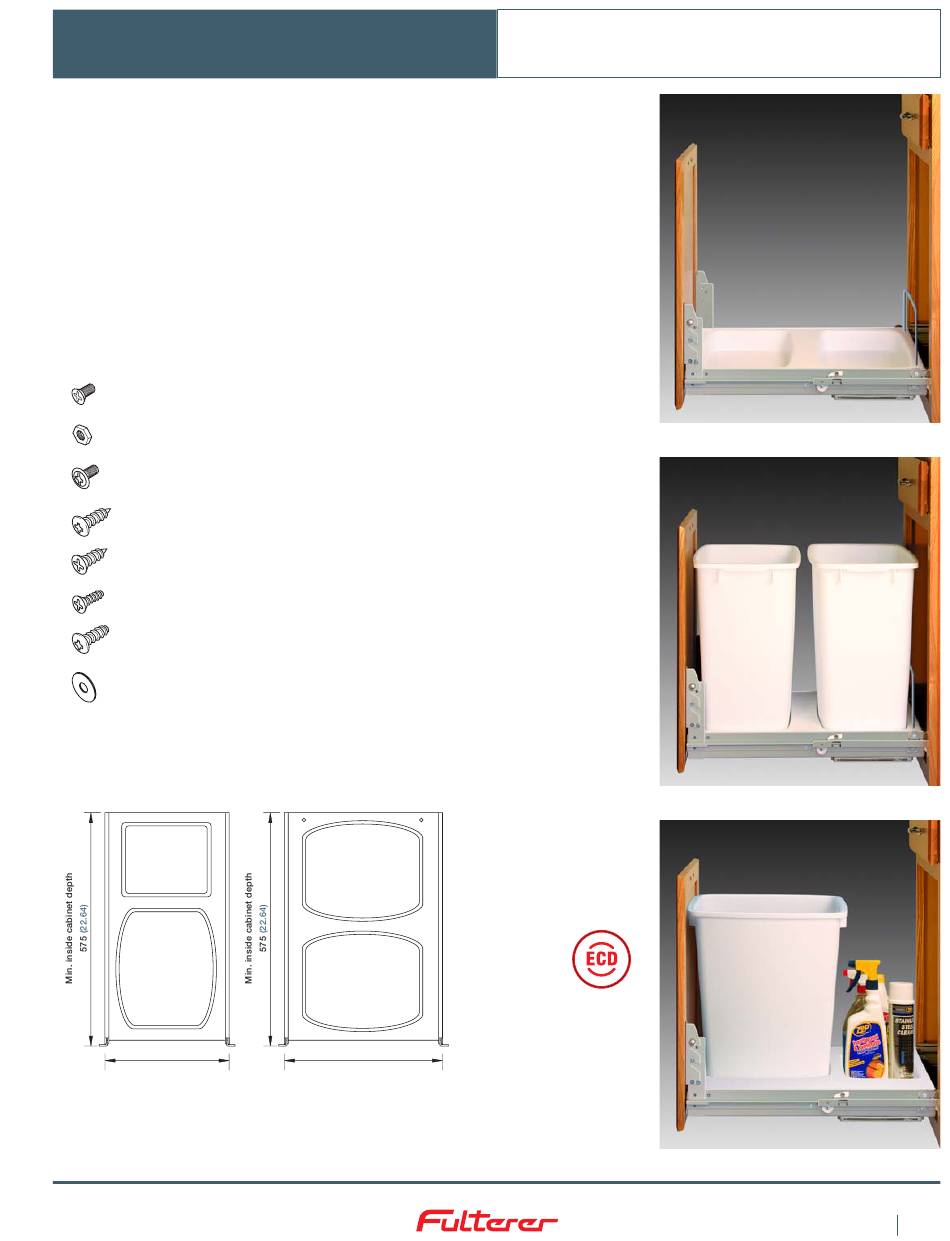

Fulterer FR 3610 Mounting Instructions

FR 3610 & FR 3609
Step 1. Identify all parts.
Supplied Parts List
A Drawer Slide, left (cabinet, middle and drawer profile) with door front brackets.
B Drawer Slide, right (cabinet, middle and drawer profile) with door front brackets.
C Bottom Mount Brackets (4 pieces).
D1 Connecting Bracket (3 pieces).
D2 Connecting Bracket with slot (3 pieces).
E E-Z-Close Package: 2 activators (L and R), 2 strikes, screws.
F Tray (1 piece).
G Wire Support (1piece).
Screw Package:
(g) M4 x 8mm, zinc (24 pieces).
(h) M4 Nut, zinc (8 pieces).
( i ) M4 x 8mm, zinc (11 pieces).
( j ) No. 8 x 5/8 in., zinc (10 pieces).
( k) No. 8 x 5/8 in., zinc (4 pieces).
( l ) No. 6 x 1/2 in., self-tapping, zinc (4 pieces).
( m) No. 8 x 1/2 in., self-tapping, zinc (4 pieces).
( n) Washer (2 pieces)
FR 3609 Single
Storage Bin
34L (36 qt.)
Waste Basket
Inside cabinet width
292–475
(11.5 –18.75)
mm (in.)
FR 3610 Double
34L (36 qt.)
Waste Basket
34L (36 qt.)
Waste Basket
Inside cabinet width
375–475
(14.75 –18.75)
mm (in.)
Mounting Instructions
FR 3610
FR 3610
FR 3609
(0708#145) 1 of 4
