SOARNEX EWA-210 Quick Installation Manual
  1. Manuals
  2. Brands
  3. SOARNEX Manuals
  4. Wireless Access Point
  5. EWA-210
  6. Quick installation manual

SOARNEX EWA-210 Quick Installation Manual

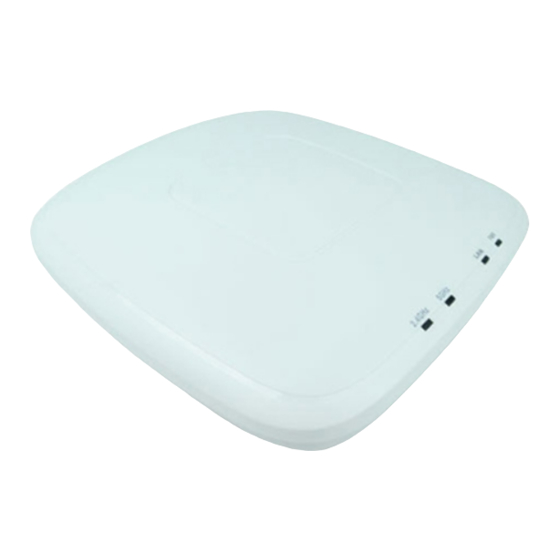

Wireless ceiling mount poe ap
Hide thumbs

Advertisement

Quick Links

Download this manual
吸頂式無線
EWA-210 N300
EWA-212 AC1200
EWA-217 AC1750
快速安裝指南
EWA-210, 212,217 QIG_29072466EWA2100.indd 1
PoE AP
PoE AP
吸頂式無線
吸頂式雙頻開發無線
吸頂式雙頻開發無線
PoE AP
PoE AP
Rev. 1.0 Feb. 2018
2018/3/2
05:29:49

Advertisement

loading
Need help?

Need help?

Do you have a question about the EWA-210 and is the answer not in the manual?

Questions and answers

Related Manuals for SOARNEX EWA-210

Summary of Contents for SOARNEX EWA-210

  • Page 1 PoE AP 吸頂式無線 EWA-210 N300 PoE AP 吸頂式無線 EWA-212 AC1200 PoE AP 吸頂式雙頻開發無線 EWA-217 AC1750 PoE AP 吸頂式雙頻開發無線 快速安裝指南 Rev. 1.0 Feb. 2018 EWA-210, 212,217 QIG_29072466EWA2100.indd 1 2018/3/2 05:29:49...
  • Page 2 EWA-210 (N300 吸頂式無線PoE AP) 或 EWA-212(AC1200 吸頂式雙頻開發無線PoE AP) 或 EWA-217(AC1750 吸頂式雙頻開發無線PoE AP) 2. 1* 5 英尺(1.5M) 网線 x1 3. 快速安裝指南x 1 4. 電源适配器(12V DC, 1A) x1(選配) 适用于EWA-210, EWA-212; 電源适配器(12V DC, 1.5A) ×1 (選配) 适用于EWA-217 5. 安裝包x 1 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 2...
  • Page 3 初始接入点設置 1. 无線PoE AP与路由器或交換机鏈接。您也可以將設備设 通過网絡端口直接鏈接到你的計算机上。如果你連接到路 由器或交換机，請确保您的計算机連接到同一网絡。 2. 電源適配器插入無線PoE AP。 3. 等待60 秒，然后确認設備前面的 LED 狀態指示燈亮 起，該无線 PoE AP啟動完成。 4.每台無線PoE AP 都預設各自的WiFi名稱(SSID) 和 WiFi 密 碼。你可以在設備的白色標籤上找到該設備默認的WiFi 名 稱(SSID) 和WiFi密碼以此來登錄管理設備。 如果 EWA无線PoE AP被复位設置，則設備的WiFi 名稱 (SSID)和 WiFi密碼將恢复到默認設置。 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 3 2018/3/2 05:29:49...
  • Page 4 硬件安裝 1. 拆下无線PoE AP上的安裝板。 2. 在牆上或者天花板上，定位安裝板到 AP 規划的安裝位 置，標記出螺絲孔位置。确保設備有足夠的空間滑動和滑 出安裝板。 3. 鑽出標記的螺絲孔，然后將塑料牆板錨定錨入螺絲孔。 4. 使用該設備附帶的螺絲，固定安裝板。 5. 將无線PoE AP 滑動安裝到安裝板，并連接网線。 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 4 2018/3/2 05:29:50...
  • Page 5 軟件控制 1. 从网站www.soarnex.com 下載管理軟件 。 "SOARNEX AP Utility" 2. 運行程序。該程序會嘗試自動檢測您的設備。如果沒 有，点擊搜尋按鈕。 3. 選擇需要設置的設備，并單擊設備設置。 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 5 2018/3/2 05:29:50...
  • Page 6 4. 設置設備頁面會顯示基本的WiFi 网絡設置。如果您的网 絡需要一个靜態IP 地址，選擇靜態配置，並輸入靜態IP。 如果你不确定，IP 默認動態配置模式。 5. 要配置您的无線网絡，从下拉菜單中選擇頻帶，并輸 入您的設置。如果您使用的是 2.4GHz 和 5GHz 的网絡， 必須將它們單獨配置。密碼是你當前的 WiFi 密碼。默認 WiFi 密碼位于的无線PoE AP底部的白色標籤上。 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 6 2018/3/2 05:29:50...
  • Page 7 6. 當您完成后，輸入无線PoE AP登錄密碼，然后單擊确定 保存更改。 該實用程序將保存設置。 7. 如果這是您第一次訪問該設備，或者設備已經被重置， 默認密碼為 admin。各自重复步驟2到6來完成配置。 8. 无線网絡配置結束后，可以通過登錄无線PoE AP WiFi 网絡确認連接。 如果可以成功連接，則配置完成。 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 7 2018/3/2 05:29:50...
  • Page 8 9. 要訪問設備的高級設置，啟動軟件控制工具，找到您的 无線PoE AP，点擊 IP地址，并選擇"Yes"來配置設備。 10. 這將啟動默認的Web瀏覽器，并自動進入无線PoE AP 高級設置。 11. 在登錄界面，輸入用戶名和密碼。如果這是您第一次 訪問該設備，或者如果无線PoE AP已复位，將使用默認的 登錄凭据。(用戶名： admin，密碼：admin) 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 8 2018/3/2 05:29:50...
  • Page 9 12. 選擇所需的語言，然后單擊登錄繼續。 13. 狀態屏幕將顯示无線PoE AP的信息，和設備的无線网絡。 14. 有關高級設置和功能的詳細信息，請參閱用戶手冊。 中 EWA-210, 212,217 QIG_29072466EWA2100.indd 9 2018/3/2 05:29:51...

  • Page 10: Declaration Of Conformity

    EN 301 489-1 V2.1.1(2017-02) EN 301 489-17 V3.1.1(2017-02) EN 55032:2012+AC:2013 EN 55024:2010 Radio Spectrum & Health: EN 300 328 V2.1.1 (2016-11) EN 62311:2008 Energy Efficiency: Regulation (EC) No. 1275/2008, Regulation, No. 278/2009, No. 801/2013 EWA-210, 212,217 QIG_29072466EWA2100.indd 10 2018/3/2 05:29:51...
  • Page 11 Low Voltage Directive 2014/35/EU R&TTE Directive 1999/5/EC EMF Directive 1999/519/EC Eco design Directive 2009/125/EC Person is responsible for this declaration. Place of Issue: TAIPEI, TAIWAN (R.O.C) Date: Feb. 1, 2018 Name: Li, Yi Wu Signature: Title: Director EWA-210, 212,217 QIG_29072466EWA2100.indd 11 2018/3/2 05:29:51...
  • Page 12 Wireless Ceiling Mount PoE AP EWA-210 N300 Wireless Ceiling Mount PoE AP EWA-212 AC1200 Dual Band Concurrent Wirless Ceiling Mount PoE AP EWA-217 AC1750 Dual Band Concurrent Wirless Ceiling Mount PoE AP Quick Installation Guide Rev. 1.0 Feb. 2018 EWA-210, 212,217 QIG_29072466EWA2100.indd 12...

  • Page 13: Contents Of Packing

    Ceiling Mount PoE+ Access Point) 2. 5ft (1.5m) Network Cable x 1 3. Quick Installation Guide x 1 4. Power Adapter (12V DC,1A) x 1 for EWA-210,EWA-212 Power Adapter (12VDC, 1.5A) x1 for EWA-217 5. Mounting Kit x 1 EWA-210, 212,217 QIG_29072466EWA2100.indd 13...
  • Page 14 Use this information to connect to the wireless access point. If the wireless access point is reset, the SSID and WiFi Key will also be reset to the default login credentials located on the white lables. EWA-210, 212,217 QIG_29072466EWA2100.indd 14 2018/3/2 05:29:51...

  • Page 15: Hardware Installation

    4. Secure the mounting plate, using the screws that came with the device. 5. Place the wireless access point on the mounting plate, and attach the network cable. EWA-210, 212,217 QIG_29072466EWA2100.indd 15 2018/3/2 05:29:51...
  • Page 16 Software Controller Management 1. Download Software Controller “SOARNEX AP Utility” 2. Run the utility. The utility will attempt to detect your device automatically. If it does not, click on the Discover button. 3. Select your device by checking the box next to your wireless access point, and click on Device Settings.
  • Page 17 2.4 GHz and 5 GHz networks, they must be configured individually. The Key is your current WiFi password. The default key is located on the white sticker on the bottom of the wireless access point device. EWA-210, 212,217 QIG_29072466EWA2100.indd 17 2018/3/2 05:29:52...
  • Page 18 Repeat steps 2 to 6 to configure your other networks. 8. Once your wireless networks are configured, confirm connectivity by logging into wireless access point WiFi network. If you can successfully connect, your configuration is complete. EWA-210, 212,217 QIG_29072466EWA2100.indd 18 2018/3/2 05:29:52...
  • Page 19 11. On the Login screen, enter the username and password. If this is your first time accessing the device, or if the wireless access pint has been reset, the default login credentials are. (Username: admin, Password : admin) EWA-210, 212,217 QIG_29072466EWA2100.indd 19 2018/3/2 05:29:52...
  • Page 20 12. Select the desired Language, and then click Login to continue. 13. The status screen will display information about the wireless access point, and the unit’s wireless networks. 14. For detailed information on advanced settings and features, please refer to User’s Manual. EWA-210, 212,217 QIG_29072466EWA2100.indd 20 2018/3/2 05:29:52...
  • Page 21 Please recycle where facilities exist. Check with your Local Authority for recycling advice Copyright © 2018 SOARNEX Technology Corp. Contents are subject to change without prior notice. Document is also available on SOARNEX Website EWA-210, 212,217 QIG_29072466EWA2100.indd 21 2018/3/2 05:29:52...
  • Page 22 29072466EWA2100 www.soarnex.com EWA-210, 212,217 QIG_29072466EWA2100.indd 22 2018/3/2 05:29:52...
