Sundance Spas EV3-X Manual

3 Channel Constant Voltage Power Repeater
Model No.: EV3-X
3 Channel/PWM signal input/Constant voltage output/3KV optoelectronic isolation

Features

● 12-36V constant voltage power repeater.
● 3 channel , 10A per channel .
● To receive PWM signal control.
● Power repeater in series or in parallel to expand output unlimitedly.
● Apply to single color or RGB constant voltage LED strip or module.

Technical Parameters

Input and Output

Input voltage
12-36VDC
Input current
30.5A
Input signal
PWM
Output voltage
3 x (12-36)VDC
Output current 3CH,10A/CH
Output power
3 x (120-360)W
Output type
Constant voltage

Environment

O O
Operation temperature Ta: -30 C ~ +55 C
Case temperature Max.
( ) T c: +85 O
C
IP rating
IP20
User Manual Ver 1.0.3
LVD

Safety and EMC

EMC standard (EMC) EN301 489,EN 62479
Safety standard(LVD)
EN60950
CE,EMC,LVD
Certification

Warranty and Protection

Warranty 5 years
Protection Reverse Polarity
Weight
Net weight 0 . 256k g
Gross weight
0 . 270k g

Mechanical Structures and Installations

Power indicator
PWM input + POWER
CH1/R PWM input -
CH2/G PWM input -
CH3/B PWM input -
Installation rack

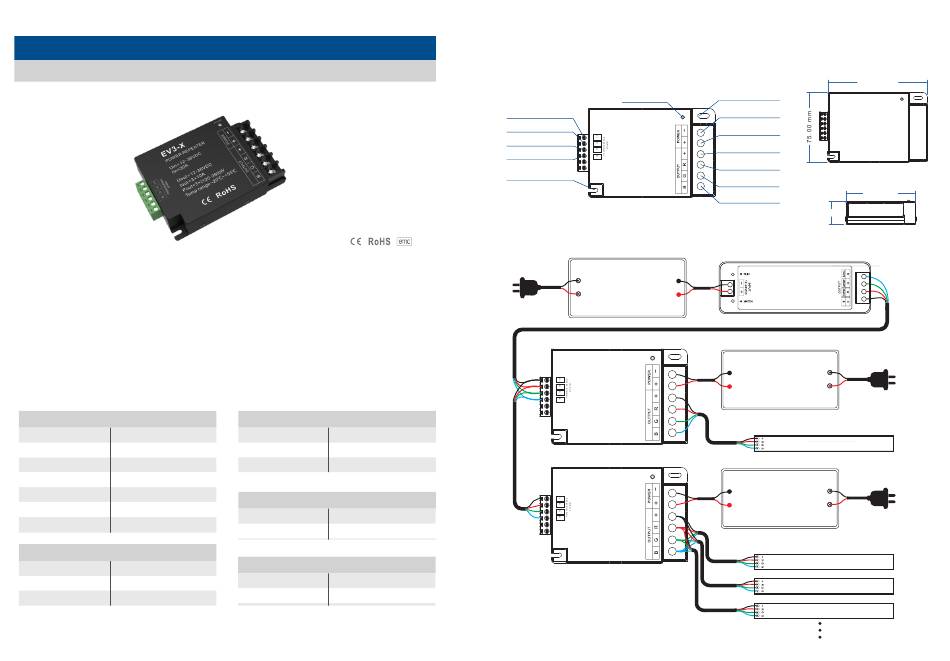

Wiring Diagram

AC100-240V
Power Supply
12-24VDC
Constant Voltage
POWER
EV3-X
POWER
EV3-X
EV 3-X 3 Channel Constant Voltage Power Repeater
107.00 mm
Installation rack
Power input -
Power input +
LED output +
CH1/R LED output -
CH2/G LED output -
75.00 mm
CH3/B LED output -
24.50 mm
V3
Power Supply
12-36VDC
Constant Voltage
AC100-240V
RGB LED strip
Power Supply
12-36VDC
Constant Voltage
AC100-240V
RGB LED strip
RGB LED strip
RGB LED strip
