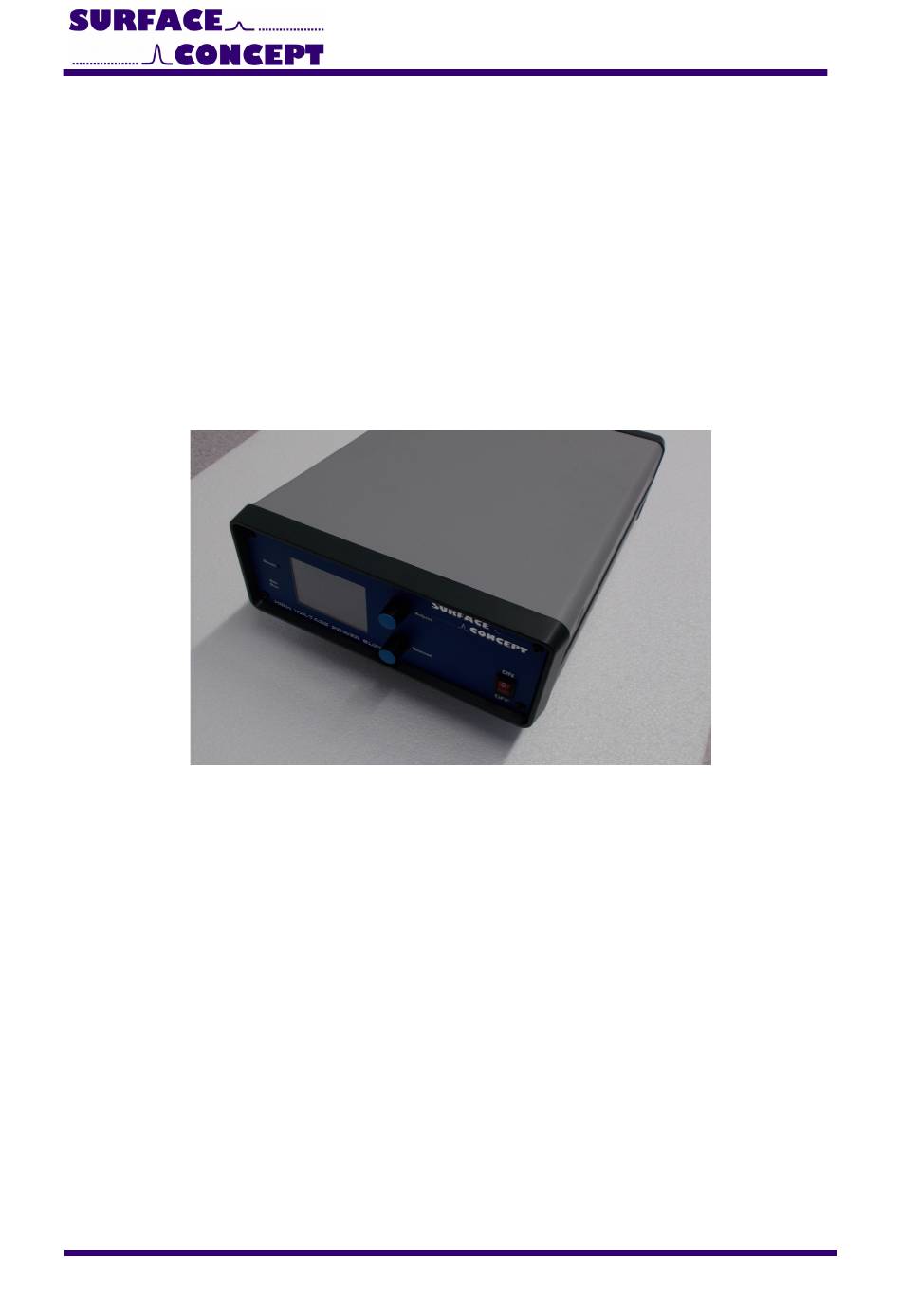

HVPS Economy Series - Manual High Voltage Power Supply Economy Series (Release 041) Manual...
Page 2
HVPS Economy Series - Manual All rights reserved. No part of this manual may be reproduced without the prior permission of Surface Concept GmbH. Surface Concept GmbH Am Sägewerk 23a 55124 Mainz Germany Tel. ++49 6131 627160 Fax: ++49 6131 6271629 www.surface-concept.com,...
This manual is intended to assist users in the installation, operation and maintenance of Release Version 041 of the High Voltage Power Supply Economy Series (HVPS Eco). It is divided into 8 chapters. 2.2 Safety Instructions Please read this manual carefully before performing any electrical or electronic operations and strictly follow the safety rules given within this manual.
2.3 General Overview The Surface Concept HVPS Eco is a HV supply in a stand-alone housing with up to 4 independent HV channels. Each channel holds two SHV connectors, which allow to select the polarity of the output voltage of each channel individually by connecting either to the one or to the other output channel.
Visual inspection of the system is required to ensure that no damage has occurred during shipping. If there are any signs of damage, please contact SURFACE CONCEPT immediately. Please check the delivery according to the packing list (see Table 1) for completeness.
Page 7
HVPS Economy Series - Manual Figure 2: Exemplary cabling of the HVPS Eco for the use of the negative output polarity of CH 1. First, use the " Ground” connector (M4 screw) to ground the device. High voltage output for each channel CH 1 to CH 4 (number of channels is device dependent), is provided selectively to the SHV socket named “HV +”...
HVPS Economy Series - Manual Device Layout & Operation 4.1 Device Layout The layout of the HVPS Eco is given below in Figure 3: 1. Hardware reset button 2. Status LEDs for Power (lightens up when device is switched on) and...
15. Power socket 4.2 General Device Operation After switching on the device (14), the display (3) shows the “Surface Concept” animated logo, while the device is scanning for internal available HV modules and their specific settings. This can take up to several seconds.
HVPS Economy Series - Manual The “Adjust” control knob is used to adjust the output voltage. Turn “Adjust” control knob clockwise/counterclockwise increase/ decrease the value of the output voltage in a step width as defined in the line “edit step”.
HVPS Economy Series - Manual 4.4 Schematic layout of the HVPS Eco Figure 8 shows the schematic layout of the HVPS Eco and especially the layout of the HV outputs. An internal controller measures the output voltage and regulates it to the nominal value entered by the user or set as default value within the device.
5.1 Special Function Check The sub-menu “Special Function Check” in the device options display the different special functions currently available for the Surface Concept HVPS D Series. Not all listed functions are available for each single device layout. The “HV Master Tracking” allows the HVPS to track...
HVPS Economy Series - Manual 5.2 Contact Surface Concept The sub-menu “Contact Surface Concept” in the device options displays the Surface Concept contact information. Press the “Exit” button to leave this sub-menu. Figure 11: “Contact Surface Concept” sub-menu.
HVPS Economy Series - Manual Error states Error states of the device are indicated by error messages in the display. Err – Interlock The device interlock is active and is blocking the HV output. Please terminate the interlock to ground using either...
HVPS Economy Series - Manual Technical Data High Voltage Power Supply Eco Series HV Output Channels: 1 – 4 (number of output channels are device dependent) HV Output Connector: SHV5 Output voltage range (channel CH-1 to CH-4): see specification sheet...
Figure 8: Schematic layout of the HVPS Eco showing also the internal load and measuring resistors....11 Figure 9: “Device Options” sub-menu..............................12 Figure 10: “Special Functions Check” sub-menu........................... 12 Figure 11: “Contact Surface Concept” sub-menu......................... 13 Figure 12: Error code – Interlock................................ 14...
Page 17
Generic standards - Emission standard for industrial environments EN 61010-1: 2010 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use For and on behalf of Surface Concept GmbH Mainz,……01.04.2013………. Legal signature…………………………………………. (Date) (Dr. Andreas Oelsner) This declaration does not represent a commitment to features or capabilities of the instrument.
