GINEERS WM-BUS Series Instruction Manual

3. Electrical connections

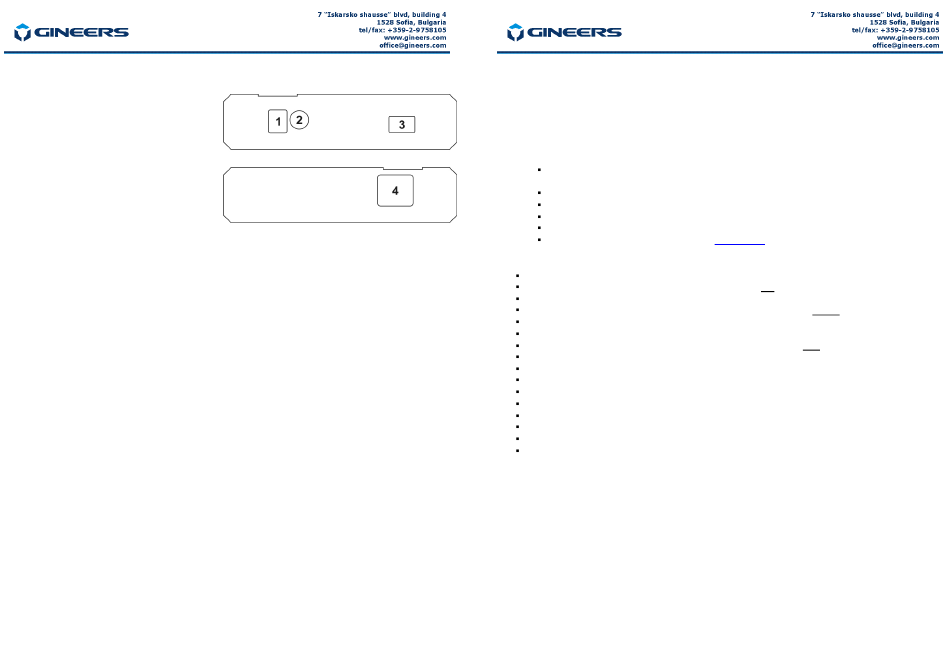

All connectors of WRM-TS are shown on the figure on the right:
1 – Power inlet: adapter 6-9 Vac/200 mA
or 5-12 Vdc/200 mA (polarity does not
matter)
2 – SMA antenna connector
3 – Wire m-bus slave interface, 2-pin
terminal block
4 – RJ45 connector (RS-232 interface) -
for connection to PC, external
controller/converter or m-bus converter
(MBRS-xx)
The cable for connecting WRM-TS to external device (PC, controller, etc.) is RS-232
<-> RJ45 and is part of the package. Same cable is used on MBRS-xx type converters.
Software for setting WRM-TS can be freely downloaded from Gineers website or contact us.

4. Warranty

The warranty of the device is limited to 2 years from the date of sale. If the device
shows any defect or malfunctions during that period, the manufacturer is obligated to repair
the device in its own service for manufacturer's expense, or, if the repair is impossible, to
replace the device with new one. The transportation costs to the manufacturer's service are
due to the client. The warranty voids if this manual' instructions are not met, warranty seals
are removed or the device was opened by unauthorized by the manufacturer personnel.
Serial number:....................

5. The package contains

- WRM-TS - 1 pc.
- Data cable for connection to PC, 1m. – 1 pc.
- Power adapter - 1pc.
- 868MHz RF antenna
- Instruction manual - 1 pc.

6. Manufacturer

Gineers Ltd.
7 "Iskarsko shausse" blvd, TCE, building 7
1528 Sofia, Bulgaria
tel./fax (+359-2) 9758105
URL: http://www.gineers.com
e-mail: office@gineers.com
Date of sale:........................
Signature:........................
Wireless m-bus receiver WRM-TS
Instruction manual
WRM-TS is a wireless m-bus receiver, intended to collect data from various devices,
working in modes T or S according to wireless m-bus standard (EN13757-4). WRM-TS have
the following main features and characteristics:
Serial RS-232C interface for communicating with external device (computer,
communication device/controller, etc.)
wired m-bus interface, slave device in a m-bus network
memory for saving data for up to 450 devices
real time clock
several LEDs for work state information
external power supply (adapter 12V@0.5A), included

1. General technical data

RF band
Wireless m-bus modes
M-bus slave interface
M-bus interface parameters
Maximum devices allowed
AES-128 encryption/decryption
serial port baud rate
power supply
max. power consumption @ 12Vdc
ambient temperature, operating
ambient temperature, storage
air humidity, operating & storage
dimensions (L/W/H)
protection class
display
weight

2. WRM-TS operation

WRM-TS is powered by external adapter 5-12 Vdc/200mA. The central pin of the power
connector is 2mm thick. We recommend adapter with power rating 6-12 Vdc/5W. Power
supply voltage should not exceed 20 Vdc/ 15 Vac.
WRM-TS begin operation immediately after power-up. After initialization (about 1s),
WRM-TS enters in normal work mode.
This device has simple function – collect data from every wireless meter which is told to,
and convert this data to normal m-bus telegram. This telegram can be read both through PC
interface and/or m-bus interface by external controller. It is ideal for mixed type networks
(wire and wireless m-bus) because it can read wireless devices and send needed data
through standard m-bus interface. Supports Primary addressing of attached devices from 1
to 250 (defined by user), but total devices can be up to 450. Addresses above 252 can be
read through m-bus only by secondary addressing.
WM-BUS Series
– 868Mhz, 12 channels
- T1, T2, S1, S2, C
- 1.5 mA
- 300/1200/2400/4800
- up to 450
- Mode 5, individual or one key for all
– 0.3/1.2/2.4/4.8/9.6/19.2/38.4 kbps
– 6-12 Vdc/0.5 A, adapter 2 mm
– < 5W
– -20÷+50 °C
– -50÷+85 °C
– 40÷90 %
– 125/70/30 mm (without antenna)
- IP30
- 3 leds (on/RF, RS-232 comm, m-bus)
– 170 g
