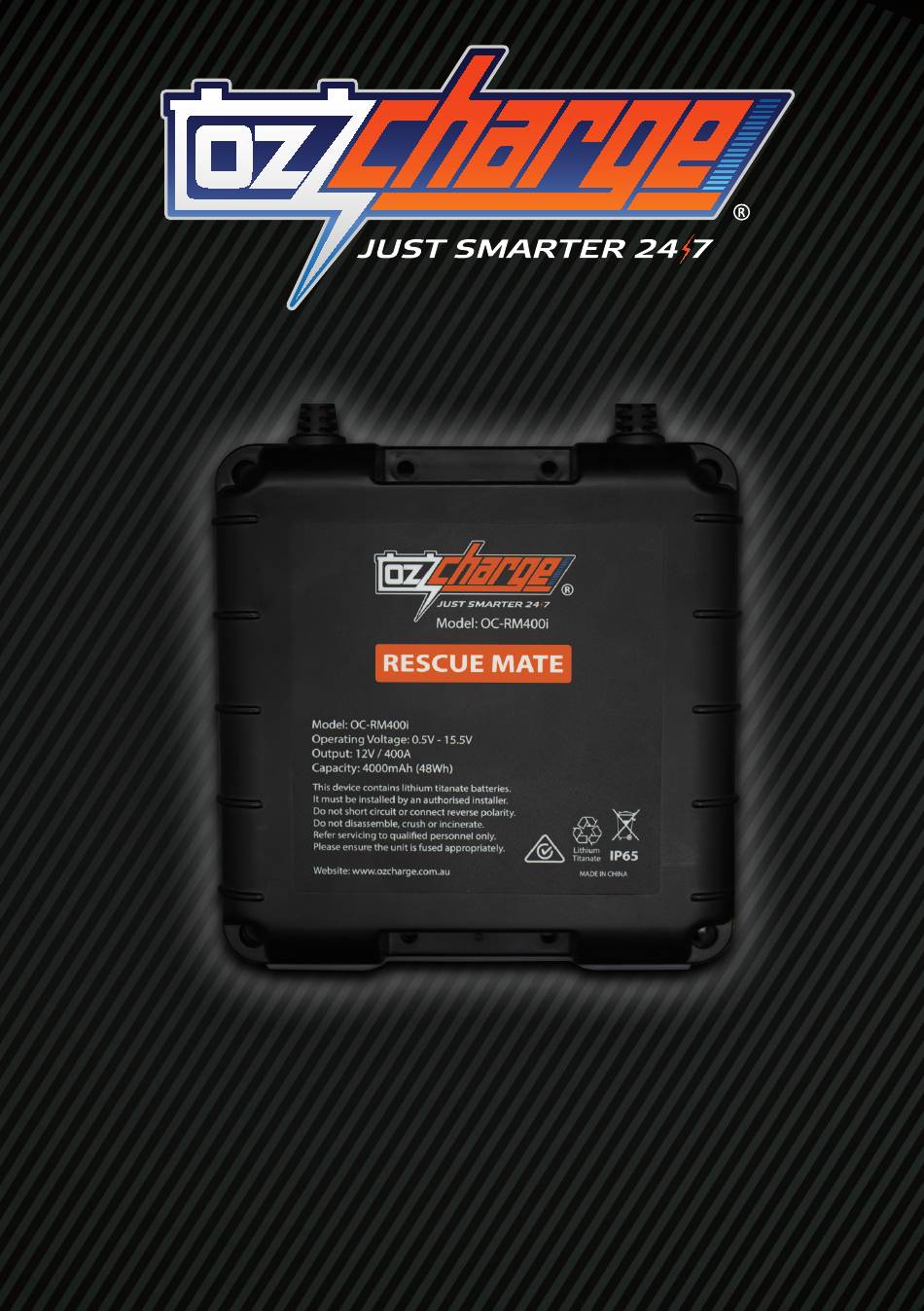

- Page 1 Model: OC-RM400i On-Board Emergency Starter OWNER’S MANUAL...
- Page 2 IP65 ENGINE TYPES & CAPACITY: The OC-RM400i has been designed for use in automotive and marine applications with Petrol/ Gasoline engines up to 4.0 litres and Diesel engines up to 2.0 litres. This should be used as a general guide only as all vehicles are different and require different amounts of starting current to start.
- Page 3 1) LED/Switch - Push Button LED. Activates the On-board Emergency Starter Output. 2) Remote Switch/LED Input - The Remote Switch/LED connects here. Activates the On- board Emergency Starter Output. 3) Battery Connection - Connect to main starter battery. 2 • OzCharge manual www.ozcharge.com.au...

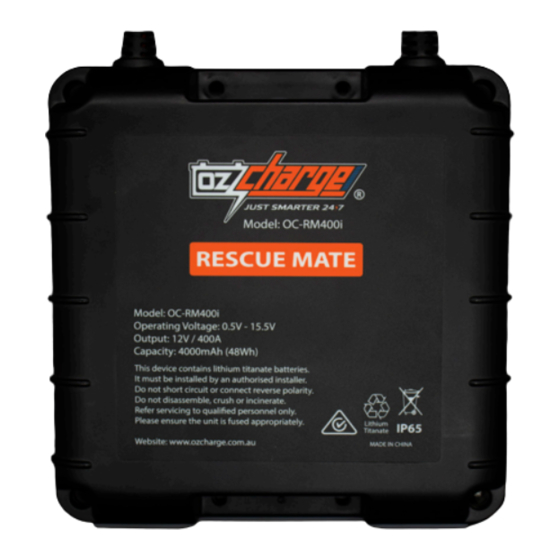

- Page 4 HOW IT WORKS? The OzCharge On-Board Rescue Mate has been designed to be permanently mounted next to your starter battery. It connects directly to your battery and provides power for starting your engine / jump starting your vehicle when required.
- Page 5 0.5V for the Emergency Start feature to activate. Check and make sure all Accessories, lights, loads are switched off and try pressing the Emergency Start switch again. - Vehicle battery most likely needs replacing. Consult a battery specialist for testing. 4 • OzCharge manual www.ozcharge.com.au...
- Page 6 UNIT DIAGRAM / MEASUREMENTS 180mm 37mm 157mm (+) Positive connection must be fused. The RM400i contains an inline automotive time delay 150A fuse. Hole Size for LED/Switch: 12mm 5 • OzCharge manual www.ozcharge.com.au...
- Page 7 Zylux Distribution Pty. Ltd. (ABN 66 101 378 009) of 166 Christmas Street, Fairfield, Victoria, 3078, Australia and OzCharge America LLC warrants to the Customer that this product is substantially free from defects in materials and workmanship under normal use for a period of Two (2) Years from the Date of Purchase.
- Page 8 OC-RM400i - Owner’s Manual: Rev 1.0 - 12/19 - Specifications subject to change without notice.
