Summary of Contents for Omega Altise OP40C

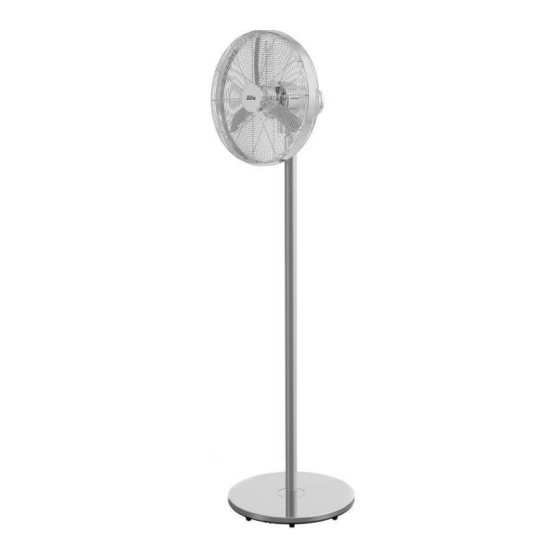

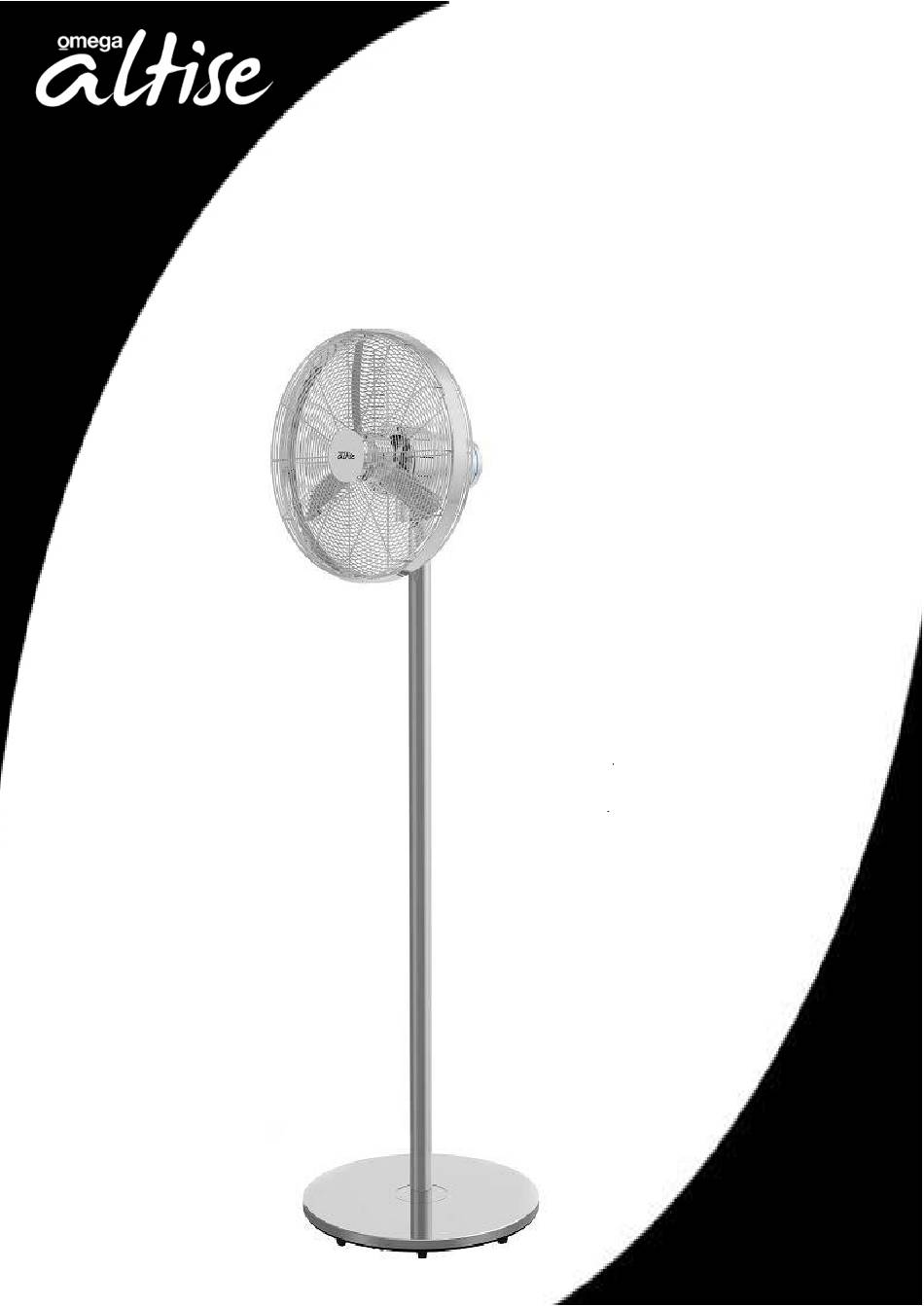

- Page 1 OP40C 40CM BRUSHED CHROME PEDESTAL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Important Safety Instructions..................1 Technical Details and Parts................... 2 Getting Started......................2 Appliance Components....................3 Assembly........................4 How To Use........................8 Cleaning and Maintenance................... 8 OMEGA ALTISE... -
Page 3: Important Safety Instructions
Failure to comply with instructions could result in personal injury and/or property damage. If you are unsure about anything regarding your pedestal fan or these instructions, please contact Omega Altise on 1300795572in Australia or (09) 415 6000 in New Zealand before operating your appliance Read all instructions carefully before using the pedestal fan. -
Page 4: Technical Details And Parts
TECHNICAL DETAILS AND PARTS Model: OP40C Pedestal fan Power: 220-240V 50Hz, 60W. Gross Weight: 14.5kg. Dimensions 130–170 H(max) x 45.5 W x 45.5 D Carefully remove the parts of the appliance from the plastic bags and the carton, and unwind the cord to its full length. -
Page 5: Appliance Components
APPLIANCE COMPONENTS Grid Off/Speed control knob Blades Blue LED rotary controller Upper tube Base Middle tube Weight for the base Lower tube Power cord Motor OMEGA ALTISE... -
Page 6: Assembly
C onnect the middle tube (4) to the lower tube (5) by screwing them together. C onnect the upper tube (3) to the middle tube (4) by screwing them together. The upper tube has 2 holes on the top. OMEGA ALTISE... - Page 7 The connector of the power cord should come of the upper tube. Link the connector coming out from the upper tube (3)to the connector coming out from the head (6) of the fan and fix them by rotating the plastic nut. OMEGA ALTISE...
- Page 8 Fix the head (6) of the fan to the upper tube (3) by using the 2 screws provided. Fix the power cord (11) under the base (9) by using the cable holder and the 2 screws provided.
- Page 9 If the smaller size is needed please avoid the steps 2 and 3 of assembly and proceed to connect the upper tube to the lower tube by screwing them together. ATTENTION: do not connect the fan to electrical supply until the unit is fully assembled. OMEGA ALTISE...
-
Page 10: How To Use
STORAGE: Store the pedestal fan with these instructions, in a cool, dry place with a cover over it A division of Shriro Australia Pty Ltd 104 Vanessa St Kingsgrove NSW2208 In Australia: 1300 795 572 In New Zealand: (09) 415 6000 www.omegaaltise.com OMEGA ALTISE...
