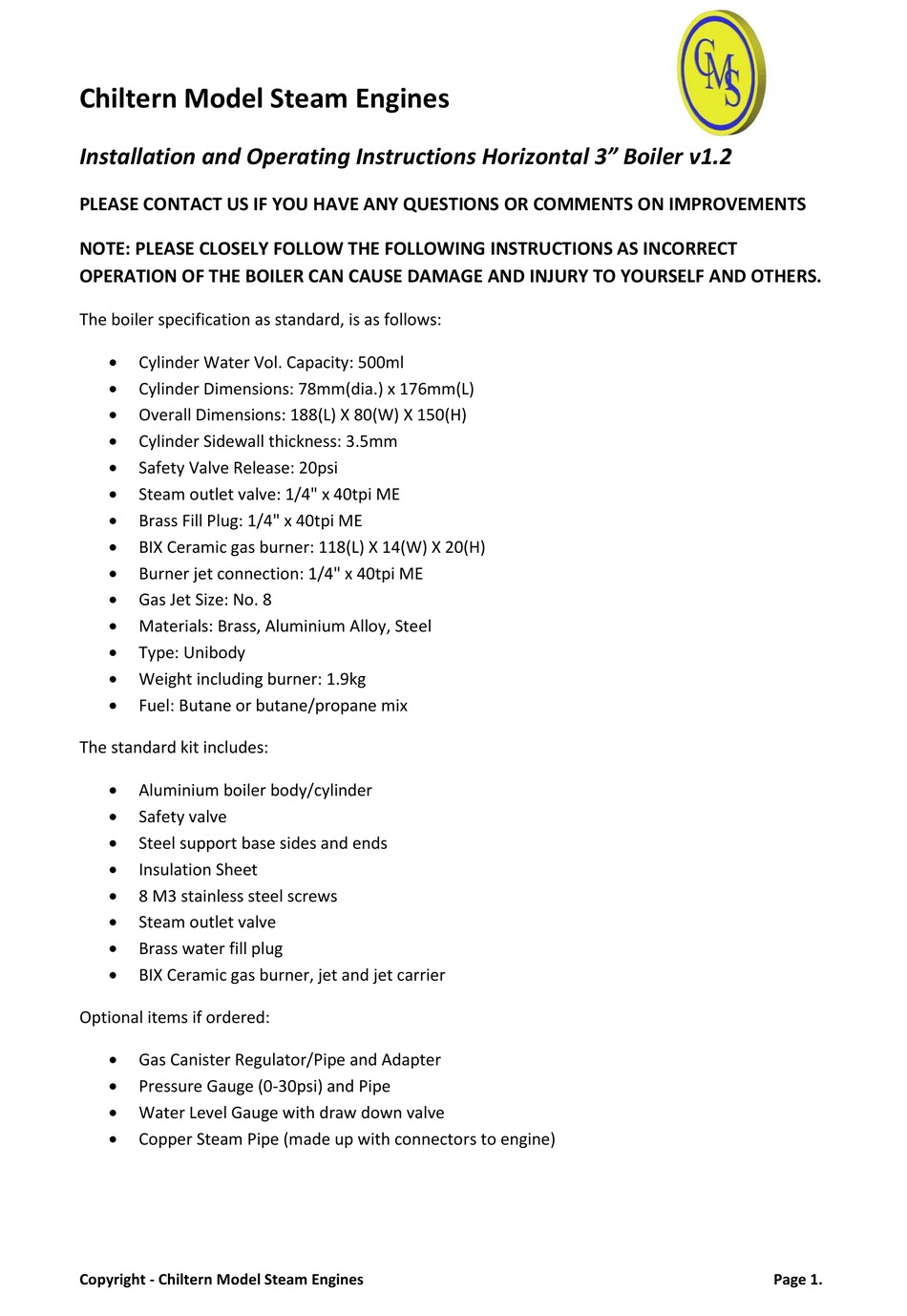

Installation and Operating Instructions Horizontal 3" Boiler v1.2
PLEASE CONTACT US IF YOU HAVE ANY QUESTIONS OR COMMENTS ON IMPROVEMENTS
NOTE: PLEASE CLOSELY FOLLOW THE FOLLOWING INSTRUCTIONS AS INCORRECT
OPERATION OF THE BOILER CAN CAUSE DAMAGE AND INJURY TO YOURSELF AND OTHERS.
The boiler specification as standard, is as follows:

Cylinder Water Vol. Capacity: 500ml

Cylinder Dimensions: 78mm(dia.) x 176mm(L)

Overall Dimensions: 188(L) X 80(W) X 150(H)

Cylinder Sidewall thickness: 3.5mm

Safety Valve Release: 20psi

Steam outlet valve: 1/4" x 40tpi ME

Brass Fill Plug: 1/4" x 40tpi ME

BIX Ceramic gas burner: 118(L) X 14(W) X 20(H)

Burner jet connection: 1/4" x 40tpi ME

Gas Jet Size: No. 8

Materials: Brass, Aluminium Alloy, Steel

Type: Unibody

Weight including burner: 1.9kg

Fuel: Butane or butane/propane mix
The standard kit includes:

Aluminium boiler body/cylinder

Safety valve

Steel support base sides and ends

Insulation Sheet

8 M3 stainless steel screws

Steam outlet valve

Brass water fill plug

BIX Ceramic gas burner, jet and jet carrier
Optional items if ordered:

Gas Canister Regulator/Pipe and Adapter

Pressure Gauge (0-30psi) and Pipe

Water Level Gauge with draw down valve

Copper Steam Pipe (made up with connectors to engine)
Copyright - Chiltern Model Steam Engines Page 1.
