Bob's Card Models
www.bobscardmodels.altervista.org
According to www.airliners.net, EC-AHA is a DC3 which had been abandoned on a
glacier in Iceland in 1950, salvaged by the founders of Loftleidir, operated as TF-
RVP, sold via England to Iberia who were still using it in 1973 to link Malaga to
Melila. Info from Danish Dakota Association and Spanish enthusiasts.

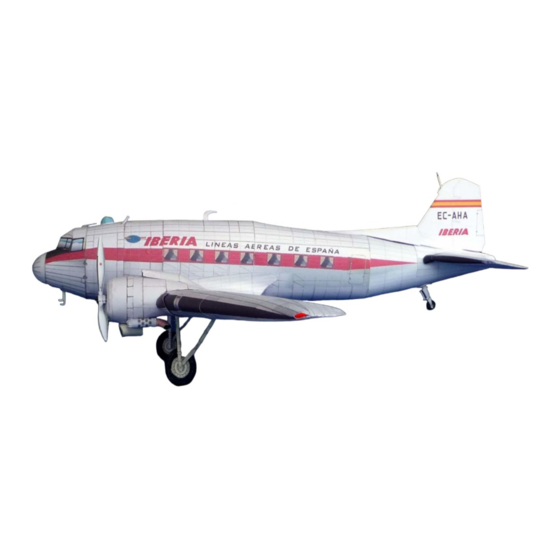

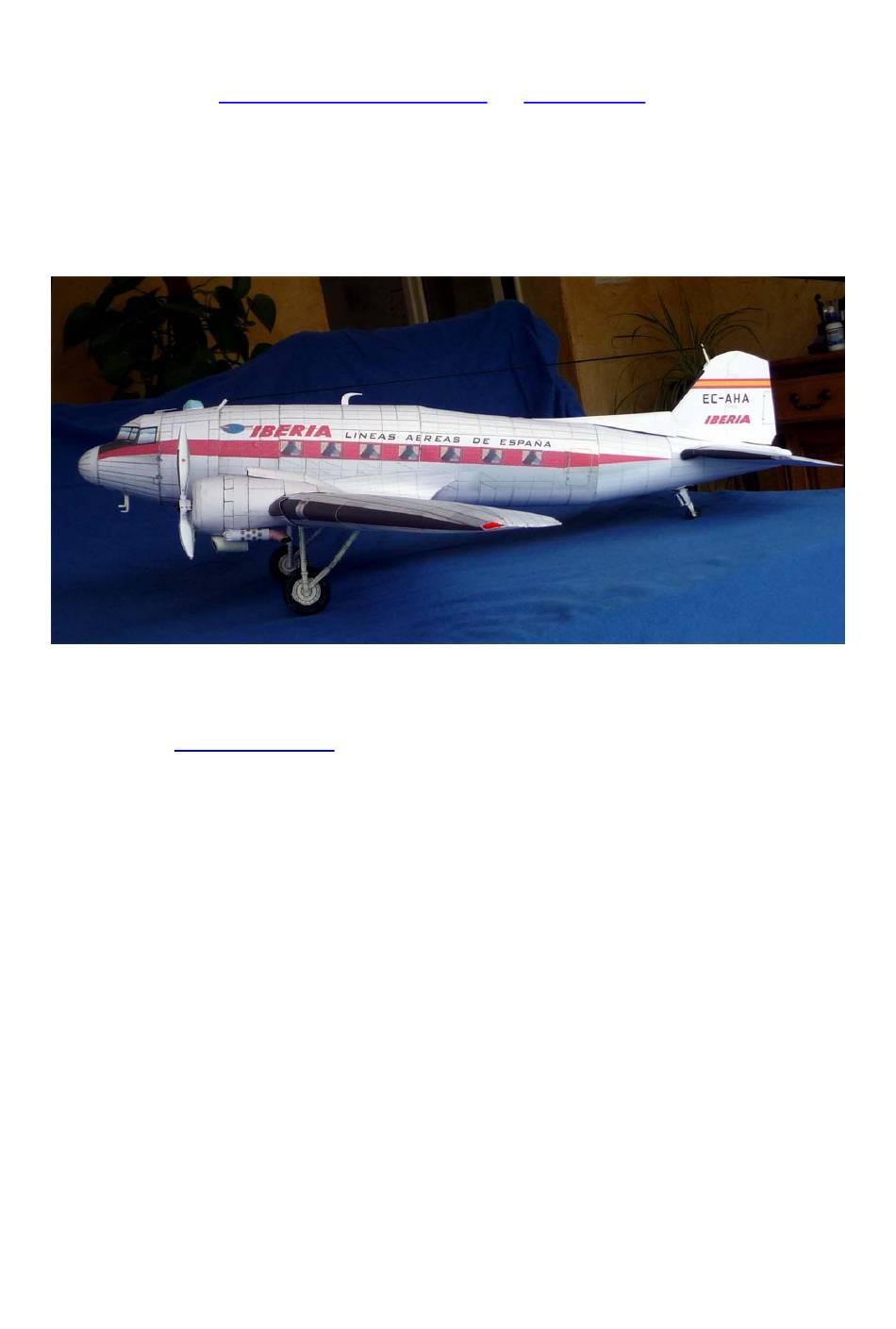

Alan Rose DC-3 (Iberia Aereas Lineas)
Adapted to full airplane, and scale of 1:30 , with several adaptations; mainly the
excellent landing gear and the motors (C-47 "Sky Train" Fly Model), as well as my
main wheels and wing support structure.
Read these instructions in combination with Alan's instructions, which are more in-
depth.
Paper recommended : 160g/m2.
Green areas, or areas marked with a scissors, must be cut out, but only when
mentioned in the instructions.
When part numbers are marked with an asterisk, make the part 2-3 times thick with
card.
and
www.zealot.com
DC-3 / C-47
1
[Resources]
Advertisement
Table of Contents
Related Manuals for Bob's Card Models DC-3
Summary of Contents for Bob's Card Models DC-3
- Page 1 RVP, sold via England to Iberia who were still using it in 1973 to link Malaga to Melila. Info from Danish Dakota Association and Spanish enthusiasts. Alan Rose DC-3 (Iberia Aereas Lineas) Adapted to full airplane, and scale of 1:30 , with several adaptations; mainly the excellent landing gear and the motors (C-47 “Sky Train”...
- Page 2 Wing 1 Construct the totality of the main wing spar using parts 1,2,3,8(x2),9,10,17,18. NB: After gluing parts 2 and 3 to 1, lay on a flat surface, then glue on parts 9 resp. 17 so that the tips of 9 resp. 17 are 1cm above the horizontal, thus procuring the correct wing angle of 4-5°...
- Page 3 for position and angle). Tippex white! 19 Glue Fuselage to Wing, and add Flashing 59L and 59R, as well as part 59A. Landing Gear 20 Roll/glue the rear wheel strip 60a. 21 Assemble/glue the 2 main wheels, by gluing together the 4 pairs of the discs 1-26, then gluing each pair together.
- Page 4 Motors 22 Close/glue 70b & then insert/glue 70a. Glue on cone 70h. 23 Close/glue 70c, join to 70d 24 Glue 70c/70d to inside of 70b. 25 Cut out the green areas marked X. 26 Glue Top and Bottom tabs on 70d, and then assemble 70e and 70f, then glue onto top tab to 70d.
