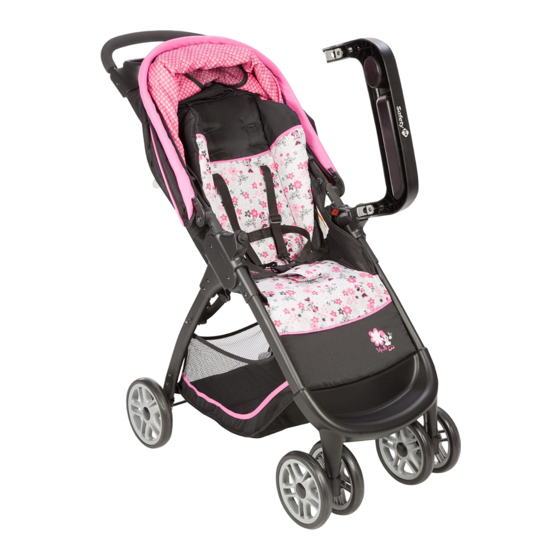

Disney Amble Quad Travel System
Sistema de viaje "Disney Amble Quad"
Models/Modelos TR335, TR342, TR343, TR351, TR356
User Guide/ Guía del usuario
RELEASE TO UNLOCK
SOLTAR PARA ABRIR
1
SQUEEZE TO RELEASE
APRETAR PARA SOLTAR
3
Based on the "Winnie the Pooh" works by A.A. Milne and E.H. Shepard.
Basado en las obras "Winnie the Pooh" de A.A. Milne y E.H. Shepard.
Discover the magic on DisneyBaby.com Descubre la magia en DisneyBaby.com
Made in CHINA. Hecho en CHINA. Styles and colors may vary. Los estilos y los colores pueden variar.
Distributed by (distribuido por) Dorel Juvenile Group, Inc., 2525 State St. Columbus, IN 47201-7494
Dorel Juvenile Canada, 873 Hodge, St. Laurent, QC H4N 2B1 12/15/14 4358-6654B

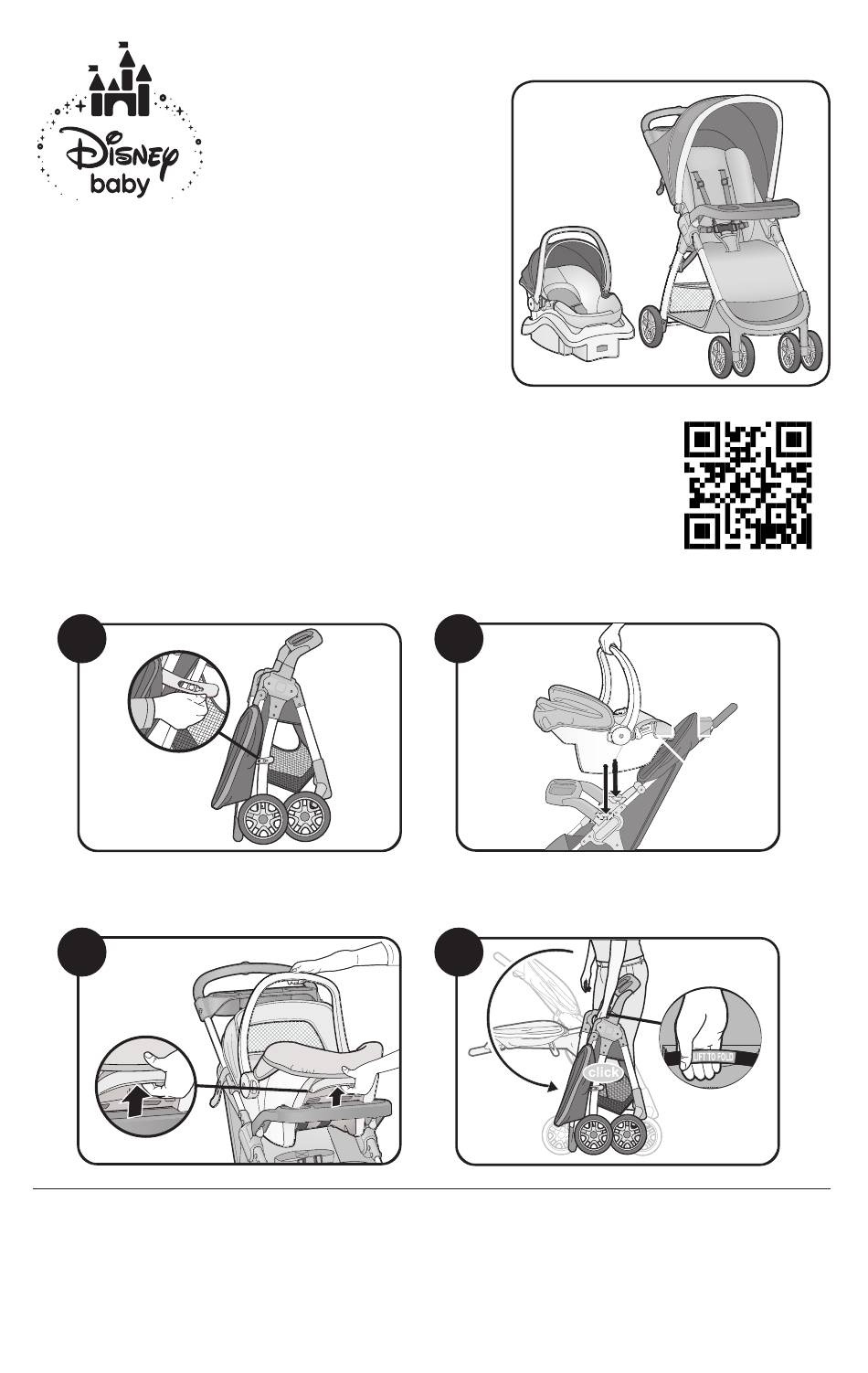

Quick Start Guide
Instrucciones rápidas
©2014 Dorel Juvenile. www.djgusa.com (800) 544-1108
LOWER INTO POSITION
BAJAR A SU LUGAR
2
LIFT TO FOLD
LEVANTAR PARA PLEGAR
4
©Disney.
SEE VIDEO
VER VIDEO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dorel Juvenile Disney Amble Quad
Summary of Contents for Dorel Juvenile Disney Amble Quad
- Page 1 Made in CHINA. Hecho en CHINA. Styles and colors may vary. Los estilos y los colores pueden variar. Distributed by (distribuido por) Dorel Juvenile Group, Inc., 2525 State St. Columbus, IN 47201-7494 Dorel Juvenile Canada, 873 Hodge, St. Laurent, QC H4N 2B1 12/15/14 4358-6654B...
- Page 2 WARNING FOR THE SAFETY OF YOUR CHILD, PLEASE READ THE FOLLOWING WARNINGS AND ASSEMBLY INSTRUCTIONS AND KEEP FOR FUTURE REFERENCE. • Adult assembly required. CAUTION: Keep small parts away from children during assembly. • NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller.
- Page 3 ADVERTENCIA POR LA SEGURIDAD DE SU HIJO, POR FAVOR LEA LAS SIGUIENTES ADVERTENCIAS E INSTRUCCIONES DE ENSAMBLE, Y GUÁRDELAS PARA CONSULTA FUTURA. • PRECAUCIÓN: El armado debe ser realizado por un adulto. Durante el armado, mantenga las piezas pequeñas fuera del alcance de los niños. •...
- Page 4 Parts / Lista de piezas Parent’s tray Charola para los padres Child’s tray Charola para el niño 2 Front wheels assemblies 2 Ensamble de ruedas frontales Rear axle Eje trasero 2 Rear wheels 2 Ruedas traseras 4 Washers 4 Arandelas 2 Cotter pins 2 Pasadores de chaveta 2 Hubcaps...
-
Page 5: Unfold Stroller
Assembly / Armado 1. Unfold Stroller Unlatch stroller lock (Figure 1). Lift handlebar (Figure 1a). Stroller will click when completely opened and locked. 1. Abra la carriola Destrabe el seguro de la carriola (Figura 1). Levante el manubrio (Figura 1a). Cuando la carriola esté... - Page 6 Assembly / Armado NOTE: Hardware for rear wheel assembly is located on axle. Helpful Hint: For ease of removal and assembly of cotter pin use needle nose pliers. 3. Install Rear Wheels Remove cotter pin and one washer from axle leaving one washer on the axle (Figure 3).
-
Page 7: To Adjust Seat Position
To Use / Para Uso Tip: Child tray can be opened and closed without removing. 1. To Use Child’s Tray To open: Squeeze button (Figure 1) and rotate tray all the way over (Figure 1a). To remove completely, squeeze both buttons and pull tray off posts. -
Page 8: Restraint System
To Use / Para Uso WARNING • NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when in stroller. • AVOID SERIOUS INJURY from falling or sliding out. ALWAYS use seat belt. Check frequently to make sure it is secure. •... -
Page 9: To Fold Stroller
To Use / Para Uso WARNING • For proper installation of the restraint system, make sure both anchors lay flat against the back board. • NEVER use stroller without BOTH restraint and crotch straps. ADVERTENCIA • Para la instalación correcta del sistema de correas, asegúrese de que ambos anclajes queden planos contra la tablilla del respaldo. - Page 10 To Use / Para Uso To Install Infant Car Seat / Para instalar el autoasiento de bebé WARNING To avoid serious injury: • This stroller is compatible with the following infant car seat model numbers: IC178, IC229, IC210, IC220, IC219, IC226, IC181, IC228, IC211, IC217, IC218, IC224, IC244, IC234, IC230, IC231, IC206, IC207, IC208, IC233, 22056, IC201, IC203, IC205, IC240 Model numbers can be found on the label on the side of the infant car seat.
- Page 11 To Use / Para Uso continued / continuación Una vez instalado correctamente, el When properly installed, car seat will come to rest on child tray and stroller frame autoasiento descansará sobre charola para el (Figure 7c). niño y el armazón de la carriola (Figura 7c). Tire del autoasiento hacia arriba para Pull up on car seat to make sure it is asegurarse de que esté...
- Page 12 (1) year from the date of purchase. Should the product contain defects in material or workmanship Dorel Juvenile Group, Inc., will repair or replace the product, at our option, free of charge. Purchaser will be responsible for all costs associated with packaging and shipping the product to Dorel Juvenile Group Consumer Relations Department at the address noted on front page and all other freight or insurance costs associated with the return.
