Page 3: General Overview

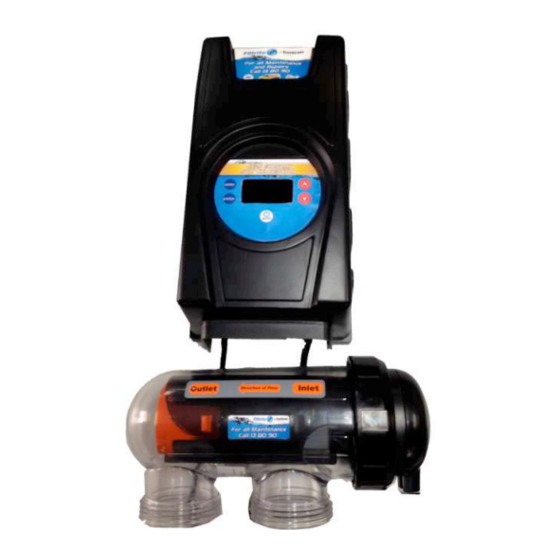

Your Filtrite by Hurlcon chlorinator works by converting some of the salt (sodium chloride) in your pool into chlorine which starts to destroy algae and bacteria and sanitises your pool. As part of the process, the chlorine is converted back into salt and hence salt is not consumed.
Page 4: Cell Installation
CELL INSTALLATION The chlorinator cell must be located last in the pipe work just prior to the return to the pool. If valves are installed between the Chlorinator and the pool outlet, it is essential that they cannot deadhead the pump. If the pressure in the cell exceeds 250kPa and/or the water temperature exceeds 40 degrees C, the cell may fail.
Page 5: Pool Preparation
Once the cell is located, connect the black multi-core cable to the cell. The blue wire must be connected to the blue terminal. The cable is designed to come from below the cell. Make sure wing nuts are correctly tightened to ensure good contact.
Page 6: Chlorine Output
CHLORINE OUTPUT To adjust the chlorine output: Use Increase/Decrease arrows for setting the chlorine output level of the chlorinator. The chlorinator output can be set from levels 1 through to 8. Chlorine Output display shows the level set USER OPERATION The user mode buttons enable you to select Pool or Spa mode and to manually control the Chlorinator/Pump.
Page 7: Chlorine Output Level
SETTING THE RIGHT CHLORINE OUTPUT AND FILTRATION TIME Your CE25 Chlorinator must be run every day to ensure that your pool is correctly sanitised. As the sun dissipates chlorine, running times are higher in the summer compared to the winter. It is recommend that you initially run you chlorinator at maximum output Summer You should set your Chlorinator to operate for 8 to 10 hours per day.
Page 8: Chlorinator Maintenance And Troubleshooting
If the low salt light is still on, then you should get your pool water tested. If the Salinity is above 6,000ppm then you may need to have your Chlorinator checked. Warning: Never add salt directly to the skimmer box. This practice should be avoided as it allows very high concentrations of salt to be passed through your filtration and other pool equipment.
Page 9 Maintenance of your Chlorinator Maintenance Schedule: You new product incorporates moving parts and withstands high velocity water with chemicals in it. Some of these parts will wear in the normal course of use and require regular checks and maintenance. Performing these checks and maintenance will identify parts that have worn and require repair/replacement before further serious damage is sustained.
Page 10: Troubleshooting
TROUBLESHOOTING Your CE25 Chlorinator has diagnostic and safety features to make it easy to maintain your system. The table below summarises potential faults and their causes. Fault Indication Potential Cause Remedy No Flow Pump turned off/disconnected or valves Ensure valves/pump on closed Blue wire disconnected from cell Connect Blue sense wire to cell...
Page 11: Warranty
AstralPool Australia Pty Ltd (ABN 97 007 284 504) ("AstralPool") provides the following warranty in relation to the Filtrite by Hurlcon CE25 Series Salt Chlorinator ("Product"). Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
Page 12 Exclusions The warranty will not apply where: the customer is in breach of the Terms and Conditions of Sale; the Product was used for a purpose other than one it was intended for; the Product was repaired, modified or altered by any person other than AstralPool; the Product has not been installed, maintained and/or operated in complete compliance with the installation and operating instructions and any instructions by AstralPool;...
