Mini Gadgets OmniXAirFreshener User Manual

Omnix air freshener hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual

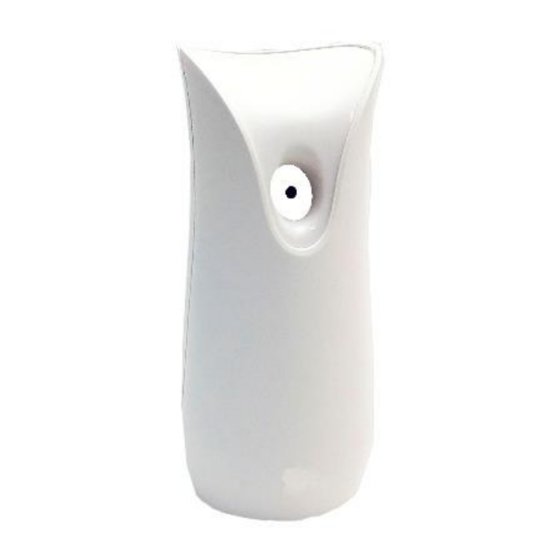

OmniX Air Freshener Hidden
Camera
SKU: OmniXAirFreshener
1
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the OmniXAirFreshener and is the answer not in the manual?

Questions and answers

Related Manuals for Mini Gadgets OmniXAirFreshener

Summary of Contents for Mini Gadgets OmniXAirFreshener

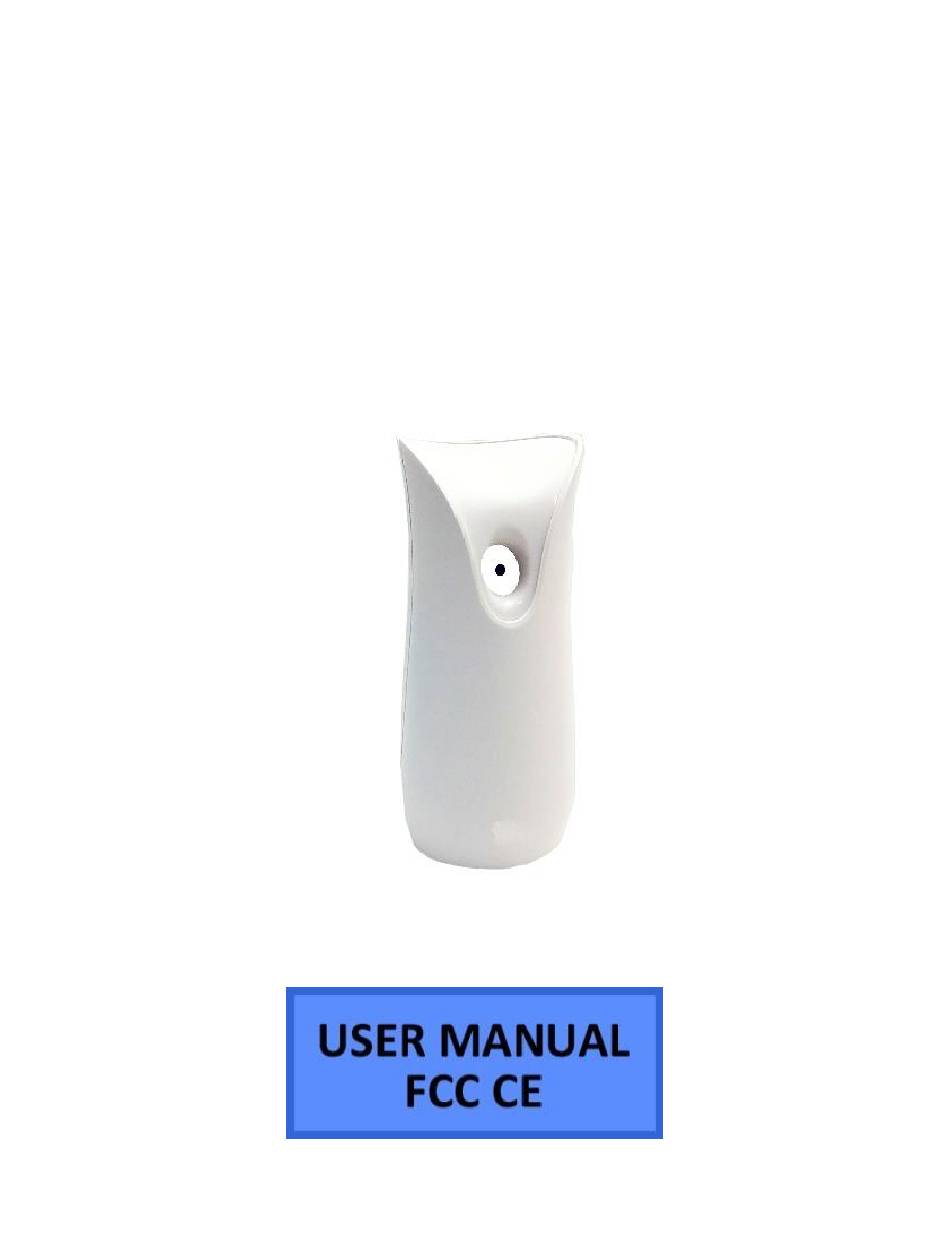

  • Page 1 OmniX Air Freshener Hidden Camera SKU: OmniXAirFreshener Version 1.0...
  • Page 2 THANK YOU FOR PURCHASING THE OMNIXAIRFRESHENER HIDDEN CAMERA Please read this manual before operating the camera and keep it handy. Your purchase should include:  1 x OmniXAirFreshener  1 x Manual  1 x A/V Cable  1 x Remote ...
  • Page 3 GET FAMILIAR WITH YOUR OMNIXAIRFRESHENER HIDDEN CAMERA Version 1.0...
  • Page 4 Version 1.0...

  • Page 5: Operating The Camera

    OPERATING THE CAMERA HOW TO TURN ON THE CAMERA 1. Point the remote at the device and press the power button on the remote. The Green light will blink once and then the Red light will blink 3 more times and turn off (if motion is detected immediately).
  • Page 6 HOW TO RECORD VIDEO 1. When the camera is in Standby Mode, press the “Video Button.” (The Indicator LED will flash two times.) 2. Once the Green Indicator LED turns off, the camera is now recording video. HOW TO STOP RECORDING VIDEO 1.
  • Page 7 HOW TO RECORD MOTION DETECTION 1. When the camera is in Standby Mode press the “Motion Detection Button.” 2. If motion is detected, the Red light will flash 2 times and turn off. 3. If there is no motion after 1 minute, the device will return to detection standby mode until motion is detected again.
  • Page 8 1. While the camera is recording motion detection press the “Motion Detection Button.” (The Green Indicator LED will turn on.) 2. The camera has stopped recording motion detection and is now in Standby Mode. HOW TO USE PIR SENSOR (If Applicable) Note: The “Motion Detection”...
  • Page 9 CHANGING YOUR DEVICE SETTINGS (INCLUDING THE DATE/TIME STAMP) Your OmniXAirFreshener comes with an A/V cable that is used to connect the device to a monitor/TV so that you can adjust various settings. 1. Connect your device to a monitor/TV using the provided A/V Cable.
  • Page 10 a. Resolution – Select from different resolutions b. Time Stamp – Use this option to enable or disable the date/time stamp on videos c. Loop Record – Choose whether you want the device to automatically overwrite the oldest file on the memory card if the memory becomes full.
  • Page 11 h. Setup -> Format – Use this to format your MicroSD card. All data on the disk will be permanently erased. i. Setup -> Language – Choose your language j. Setup -> TV Output – Select between NTSC or PAL for video output. We recommend you do not adjust this setting.
  • Page 12 p. Setup -> FW Upgrade – This is not active on this device q. Setup -> FW Version – Displays the firmware version of the device. Version 1.0...
  • Page 13 RETRIEVE THE FILES TO YOUR PC 1. Remove the MicroSD Card from the device and plug it into your computer using the supplied card reader. 2. Locate “Removable Disk” inside the (My) Computer folder.  AutoPlay Removable Disk > Open folder to view files Version 1.0...
  • Page 14 Or… Go to Start > Computer > Removable Disk 3. Open the Removable Disk drive. 4. Open the [folder name] folder. 5. Double click the file you want to view.  VLC Player is recommended for watching videos Version 1.0...

  • Page 15: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the power cable is securely plugged into a functioning electrical outlet or the battery is charged. THE DEVICE HAS CRASHED  Press the reset button one time while the device is on. DEVICE CONTINUALLY RECORDS IN MOTION MODE ...

  • Page 16: Specifications

    SPECIFICATIONS Video 1920x1080 Resolution Video Format .MP4 Frames per Up to 30 FPS Second Vision Angle 65° Battery Life Up to 30 days in PIR mode 20 Hours Continuous Recording Motion 8 meters for straight-line Detection & PIR distance Sensor Photo 2560x1920 Resolution...
  • Page 17 Recording Usage 10mins per 1GB USB Interface 2.0 USB Player Software VLC recommended Video H.264 Compression Version 1.0...
  • Page 18 Version 1.0...
  • Page 19 Version 1.0...
  • Page 20 QUALITY CONTROL CHECKLIST ☐ Remote ☐ _____GB MicroSD Card ☐ MicroSD Card Reader ☐ Wall Charger ☐ A/V Cable ☐ Manual ☐ OmniX Air Freshener QC Tech:____________________________________ Date: ______________________________ Version 1.0...
