Mini Gadgets BBSBirdHouse User Manual

Bush baby stealth bird house
Hide thumbs

Advertisement

Quick Links

Download this manual

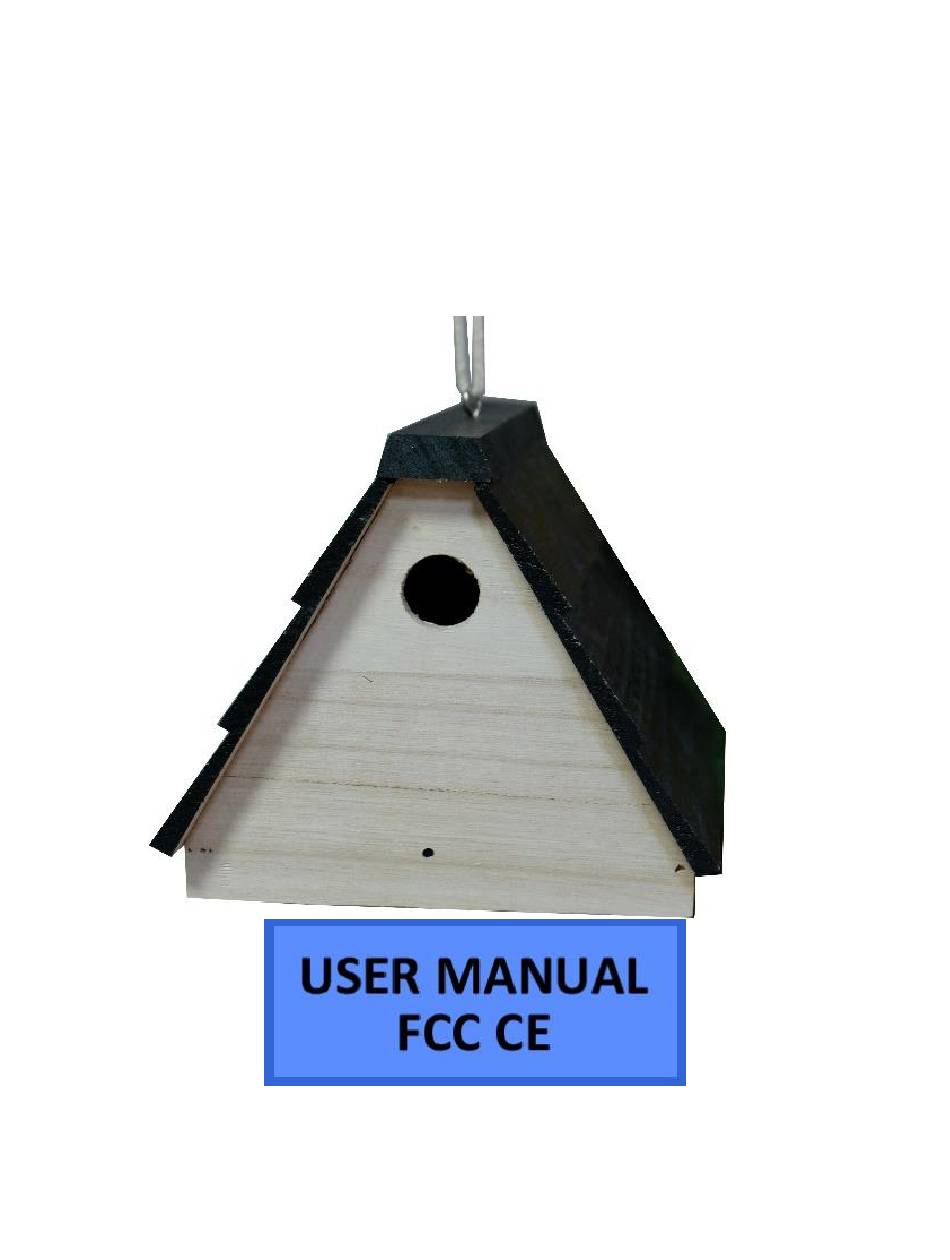

Bush Baby Stealth Bird
House Manual
SKU: BBSBirdHouse
1
Version 2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBSBirdHouse and is the answer not in the manual?

Questions and answers

Related Manuals for Mini Gadgets BBSBirdHouse

Summary of Contents for Mini Gadgets BBSBirdHouse

  • Page 1 Bush Baby Stealth Bird House Manual SKU: BBSBirdHouse Version 2.0...
  • Page 2 STEALTH BIRD HOUSE Read through this manual before you begin using your device and keep it handy. Your purchase should include: 1 x BBSBirdHouse 1 x Remote Control 1 x Removable Battery 1 x Charging Cable 1 x AC Adapter...
  • Page 3 GET FAMILIAR WITH THE BUSH BABY STEALTH BIRD HOUSE Version 2.0...
  • Page 4 Version 2.0...
  • Page 5 Version 2.0...
  • Page 6 BEFORE YOU START To preserve battery power, your device will come with the battery connector disconnected. Before attempting to use the device, be sure to connect the battery’s connector to the circuit board power lead. Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid damaging the product.
  • Page 7 2. Disconnect the battery connector that is connecting the battery to the circuit board (red piece connecting black and red wires). Be careful not to pull on the wires as that could damage them. 3. Connect the connector on the battery to the connector on the charging adapter (see page 4.
  • Page 8 will turn on. The device is now in Standby mode. HOW TO RECORD VIDEO ON THE BUSHBABY STEALTH BIRD HOUSE CAMERA 1. In standby mode, press the Video button on the remote control one time (see page 4). The indicator light on the back of the device will flash three times, and then turn off.
  • Page 9 HOW TO STOP RECORDING 1. To stop recording, you will need to press the same button you used to begin recording. a. If you pressed the Video button, press the Video button once more. b. If you pressed the Motion button, press the Motion button once more.
  • Page 10 To access the MicroSD Card Slot, you must open the Bird House from the bottom. 1. Gently push the MicroSD Card into the slot. The gold contacts on the card will be inserted first, and they should face the main circuit board. You will feel some spring resistance before the card clicks in to place.
  • Page 11 Visit www.mgidownloads.com/Software and download the “guiformat.zip” file. Extract the files and follow the instructions in the “64GB SD Card Formatting.pdf” document. IMPORTANT NOTICE: Ensure that the Bird House is off before inserting the MicroSD card. Otherwise potential corruption of the card file(s) may occur. RETRIEVE THE FILES TO YOUR PC 1.
  • Page 12 Or… Go to Start > Computer > Removable Disk Version 2.0...
  • Page 13 3. Open the Removable Disk drive. 4. Open the DCIM folder. 5. Open the folder featuring a sequence of numbers. 6. Double click the file you want to view.  VLC Player is recommended for watching videos. If you are having video playback issues, such as a completely black video recording or “squiggly lines”, we recommend you use VLC media player to play back the videos.
  • Page 14 menu. Next, go the location you want the save the file to. Right click your mouse, and then chose “Paste.” This will copy the file to your computer.  To delete a file, right click your mouse on the file name and choose “Delete” from the menu.
  • Page 15 3. Right click and “cut” the downloaded time file. 4. Locate “Removable Disk” inside the (My) Computer folder. a. Go to Start > Computer > Removable Disk 5. Open the Removable Disk drive. 6. Right click with your mouse and paste the downloaded time file.
  • Page 16 9. Click “Text Document”. 10. Rename “New Text Document” as “time”. The title must be in all lowercase letters! Before Step 8 Version 2.0...
  • Page 17 After Step 8 11. Open the text document. 12. Enter the date/time in the following format a. Example: 2016/08/08 15:00:00 13. Save the text document. 14. Remove the MicroSD card from your computer. Insert the MicroSD card into your device. Power on the device and begin a test recording to confirm date/time setting succeeded.

  • Page 18: Troubleshooting

    TROUBLESHOOTING THE DEVICE WON’T TURN ON  Charge the device for at least 6-8 hours before the first use.  Make all charging cables are securely connected when charging. THE DEVICE ISN’T CHARGING  Replace the battery or charging cable. ...

  • Page 19: Other Problems

     The SD card may be too small. o Insert SD card between 4GB – 128GB.  You may have a 64GB+ card and need to format it properly. Visit www.mgidownloads.com/Software and download the “guiformat.zip” file. Extract the files and follow the instructions in the “64GB SD Card Formatting.pdf”...

  • Page 20: Specifications

    SPECIFICATIONS Video Resolution 1920*1080 Video Format Frames per Second Vision Angle 75° Motion Detection Lux Rating 1LUX Water Resistant Battery Life 30 Hour Type of Memory External MicroSD Card Memory Capacity 4GB – 128GB USB Interface 2.0 USB Player Software VLC recommended Operating Systems Windows XP &...
  • Page 21 Version 2.0...
  • Page 22 Version 2.0...
  • Page 23 Version 2.0...
  • Page 24 QUALITY CONTROL CHECKLIST ☐ Remote ☐ Manual ☐ Removable Battery ☐ Charging Adapter with Indicator Lights ☐ Wall AC Adapter ☐ Charging Cable ☐ MicroSD Card ____GB ☐ MicroSD Card Reader ☐ Bush Baby STEALTH Bird House QC Tech: ____________________________________________ Date: ______________________________ Version 2.0...
