Model 14

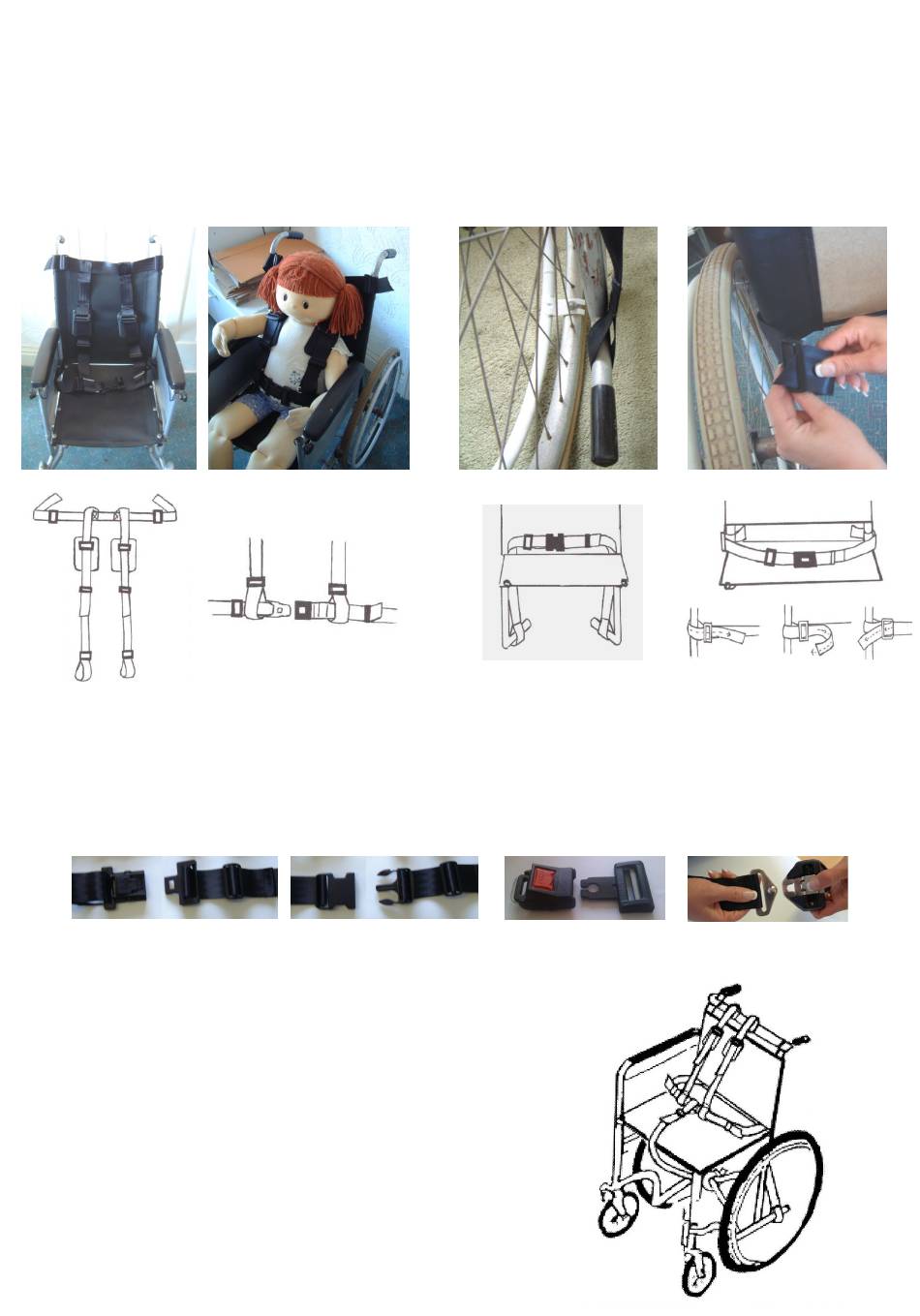

The Model 14 was designed to offer additional postural support to the wheelchair user.
Available in child and adult sizes. This model has the advantage of being sold in separate components.
Depending upon the individual requirements Model 14 can start from a simple lap belt and be
transformed into a full harness by adding shoulder straps and/or a groin strap as and when required.
Consequently the shoulder straps are unfixed to the lap belt and detachable (unlike the B78 harness below).
On a manual wheelchair the lap
On a Power Chair the lap belt
The Shoulder Straps 'slide-fix' to the tubular handles of
belt loops over the tipping levers
'slide-fixes' to the tubular framework.
the wheelchair & loops on to each side of buckle
The belt is available in either 'Loop-on' for manual Wheelchairs or 'Slide-fix' for Power Chairs.
Choice of buckles available.
Sea Sure Lever Buckle
Side Squeeze Buckle
Vehicle Press Release Buckle
Model B78
(An upgraded version of Model 14)
Full supportive body harness complete with
understrap which fixes to chassis cross-section.
The shoulder straps are sewn into fixed, position
on lap belt for extra stability.
Adjusts at each side of lap belt buckle for ease of use.
Fitted with Vehicle Buckle as standard.
One size only.
Two types available:
'Loop-on' for manual Wheelchairs
'Slide-fix' for Power Chairs.
Advertisement
Table of Contents
Summary of Contents for Crelling Harness 14
- Page 1 Available in child and adult sizes. This model has the advantage of being sold in separate components. Depending upon the individual requirements Model 14 can start from a simple lap belt and be transformed into a full harness by adding shoulder straps and/or a groin strap as and when required.
- Page 2 Model 14 & B78 Fitting Instructions Shoulder Strap 40mm Adjusters. To loosen or tighten the straps. The black plastic 3-bar ‘Sliplok’ slides hold the straps more securely into position. The shoulder straps ‘slide-fix’ onto the push handles & then pass down to loop onto the lap belt at either side of the central buckle.
