INSTRUCTION MANUAL
PROFESSIONAL HAIR CLIPPER
Thank you for choosing WELL. Please read carefully the following instructions and keep them
within reach.
Reorder No: CLIPP-HAIR-RAVEN-WL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLIPP-HAIR-RAVEN-WL and is the answer not in the manual?

Questions and answers

Related Manuals for Well CLIPP-HAIR-RAVEN-WL

Summary of Contents for Well CLIPP-HAIR-RAVEN-WL

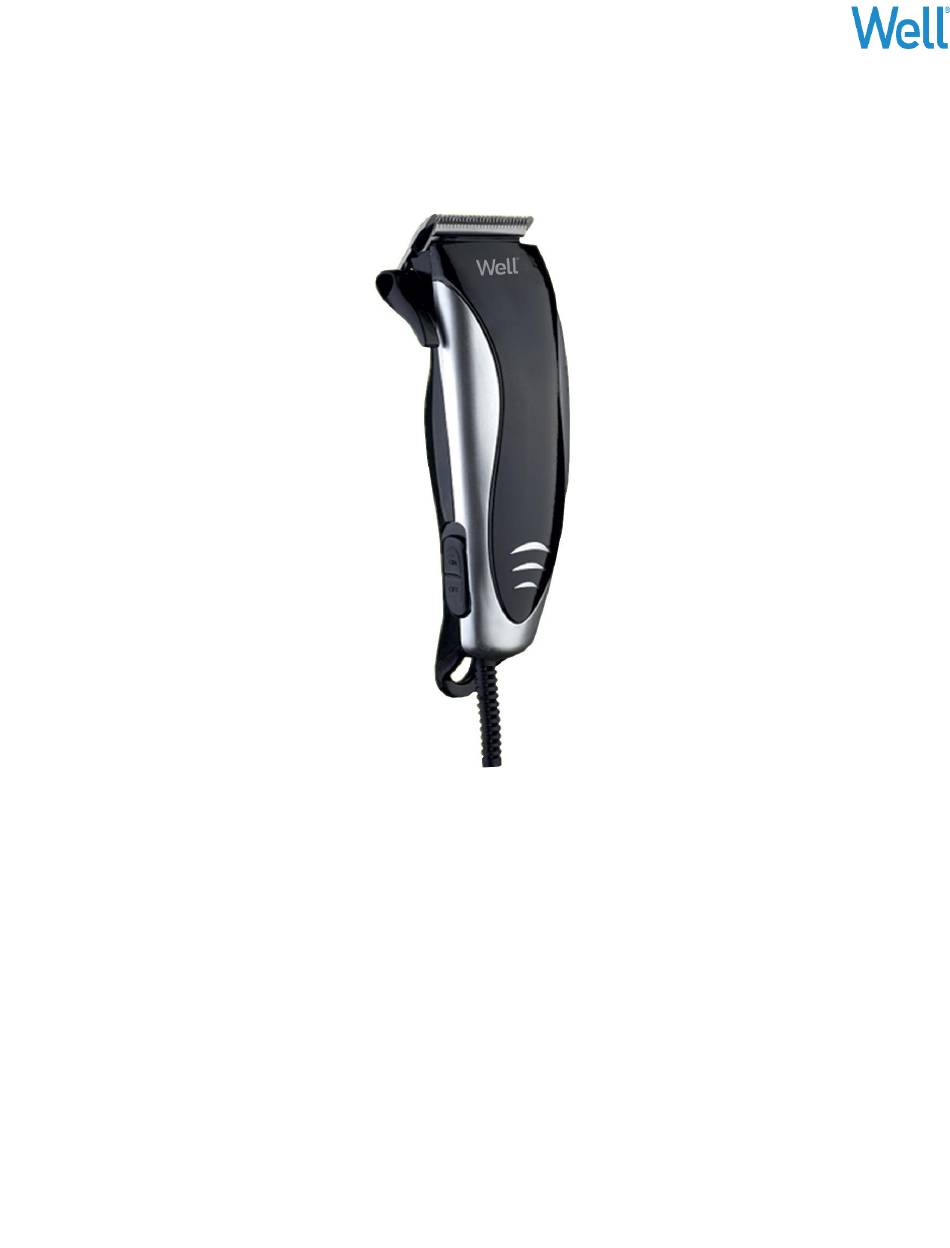

  • Page 1 INSTRUCTION MANUAL PROFESSIONAL HAIR CLIPPER Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: CLIPP-HAIR-RAVEN-WL...
  • Page 2 DESCRIPTION Blade lever Bottom blade Top blade On/Off switch ACCESSORIES 3 mm 6 mm 12 mm 9 mm Comb Brush Scissors...

  • Page 3: Blade Alignment

    BLADE ALIGNMENT • Your clippers were carefully examined to ensure that the blades were oiled and aligned before leaving our factory. • Blades must be realigned if they have been removed for cleaning or replacement. • To realign the blades, simply match the upper and bottom blades teeth up, point for point. (End of top blade teeth should be approximately 1.2mm back from bottom blade, compare your clipper blades with the sketch).

  • Page 4: Blade Lever

    BLADE LEVER • The lever is conveniently located near your thumb (if you’re right-handed) so it can easily be adjusted while the clipper is in your hand. • The lever adds versatility to your clipper by allowing you to gradually change the closeness of your cut without an attachment comb.

  • Page 5: Instructions For Hair Cutting

    • This appliance should never be left unattended when plugged in. • Close supervision is necessary when this appliance is used by, on, or near children of invalids. • Never operate this appliance if it has a damaged cord or plug, if it is not working properly. •...
  • Page 6 • Attachment Comb #4 leaves 12 mm (1/2 inch) hair length. Each comb attachment is marked accordingly on its outside middle surface. • To attach a comb, hold it with its teeth upward and slide it into and along the clipper blade until the front of the comb firmly seats against the clipper blade.
  • Page 7 STEP 3 – SIDE OF THE HEAD Change to one of the shorter combs 3 mm or 6 mm, trim sideburns, i.e. the hair directly in front of the ears. Then change to one of the longer combs, 9 mm or 12 mm, and continue to cut to the top to the head (diagram 3).
  • Page 8 STEP 5 - THE FINISHING TOUCH 1. Finally, use the taper lever without an attachment comp for close trimming around the base of the neck, the sides of the neck and the ears. 2. To produce a clean straight line at the sideburns, reverse the hair clipper by turning the reverse side uppermost (see diagram 7).

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS Input voltage: 230V 50Hz Nominal power: 10W Powerful AC motor with adjustable blade-control level Precision cutting blade Comb sets: 3mm/6mm/9mm/12mm Low noise Package content: Hair clipper, 4 comb sets, brush, oil, comb, scissor Waste electrical and electronic equipment are a special waste category, collection, storage, transport, treatment and recycling are important because they can avoid environmental pollution and are harmful to health.
