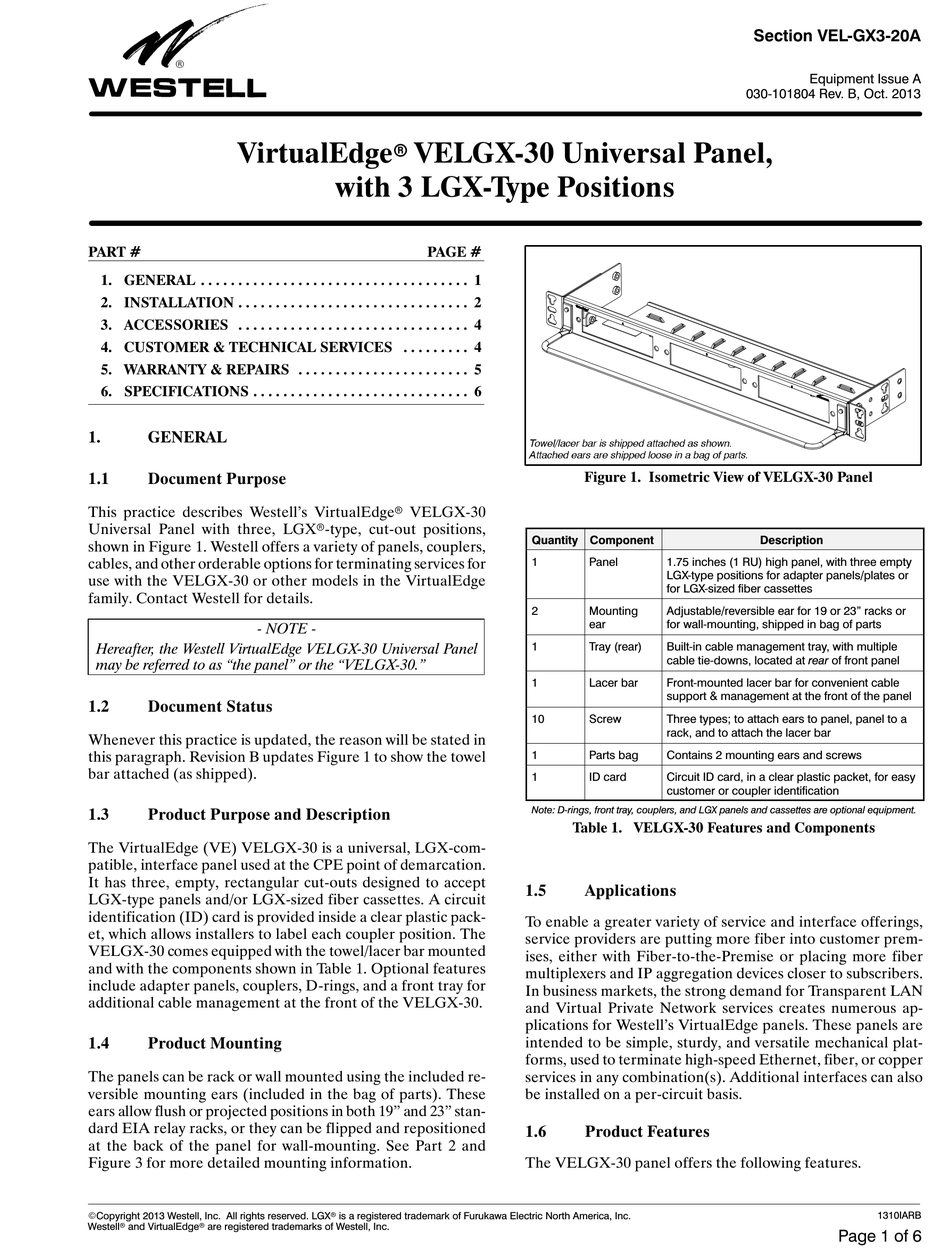

Westell VirtualEdge VELGX-30 Manual

R
VirtualEdge
PART #
1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. CUSTOMER & TECHNICAL SERVICES
5. WARRANTY & REPAIRS
6. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1. GENERAL
1.1 Document Purpose
This practice describes Westell's VirtualEdger VELGX‐30
Universal Panel with three, LGXr‐type, cut‐out positions,
shown in Figure 1. Westell offers a variety of panels, couplers,
cables, and other orderable options for terminating services for
use with the VELGX‐30 or other models in the VirtualEdge
family. Contact Westell for details.
‐ NOTE ‐
Hereafter, the Westell VirtualEdge VELGX‐30 Universal Panel
may be referred to as "the panel" or the "VELGX‐30."
1.2 Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph. Revision B updates Figure 1 to show the towel
bar attached (as shipped).
1.3 Product Purpose and Description
The VirtualEdge (VE) VELGX‐30 is a universal, LGX‐com­
patible, interface panel used at the CPE point of demarcation.
It has three, empty, rectangular cut‐outs designed to accept
LGX‐type panels and/or LGX‐sized fiber cassettes. A circuit
identification (ID) card is provided inside a clear plastic pack­
et, which allows installers to label each coupler position. The
VELGX‐30 comes equipped with the towel/lacer bar mounted
and with the components shown in Table 1. Optional features
include adapter panels, couplers, D‐rings, and a front tray for
additional cable management at the front of the VELGX‐30.
1.4 Product Mounting
The panels can be rack or wall mounted using the included re­
versible mounting ears (included in the bag of parts). These
ears allow flush or projected positions in both 19" and 23" stan­
dard EIA relay racks, or they can be flipped and repositioned
at the back of the panel for wall‐mounting. See Part 2 and
Figure 3 for more detailed mounting information.
ECopyright 2013 Westell, Inc. All rights reserved. LGXr is a registered trademark of Furukawa Electric North America, Inc.
Westellr and VirtualEdger are registered trademarks of Westell, Inc.
r
VELGX‐30 Universal Panel,
with 3 LGX‐Type Positions
PAGE #
1
2
4
. . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . 5
6
Towel/lacer bar is shipped attached as shown.
Attached ears are shipped loose in a bag of parts.

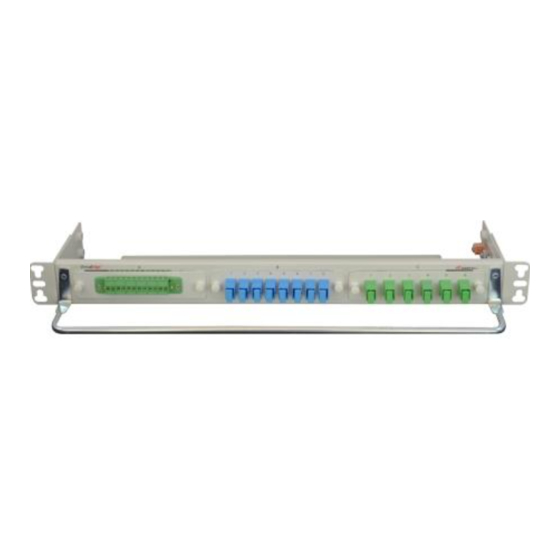

Figure 1. Isometric View of VELGX‐30 Panel
Quantity Component
1 Panel 1.75 inches (1 RU) high panel, with three empty
LGX‐type positions for adapter panels/plates or
for LGX‐sized fiber cassettes
2 Mounting Adjustable/reversible ear for 19 or 23" racks or
ear for wall‐mounting, shipped in bag of parts
1 Tray (rear) Built‐in cable management tray, with multiple
cable tie‐downs, located at rear of front panel
1 Lacer bar Front‐mounted lacer bar for convenient cable
support & management at the front of the panel
10 Screw Three types; to attach ears to panel, panel to a
rack, and to attach the lacer bar
1 Parts bag Contains 2 mounting ears and screws
1 ID card Circuit ID card, in a clear plastic packet, for easy
customer or coupler identification
Note: D‐rings, front tray, couplers, and LGX panels and cassettes are optional equipment.
Table 1. VELGX‐30 Features and Components
1.5 Applications
To enable a greater variety of service and interface offerings,
service providers are putting more fiber into customer prem­
ises, either with Fiber‐to‐the‐Premise or placing more fiber
multiplexers and IP aggregation devices closer to subscribers.
In business markets, the strong demand for Transparent LAN
and Virtual Private Network services creates numerous ap­
plications for Westell's VirtualEdge panels. These panels are
intended to be simple, sturdy, and versatile mechanical plat­
forms, used to terminate high‐speed Ethernet, fiber, or copper
services in any combination(s). Additional interfaces can also
be installed on a per‐circuit basis.
1.6 Product Features
The VELGX‐30 panel offers the following features.
Section VEL‐GX3‐20A
Equipment Issue A
030‐101804 Rev. B, Oct. 2013
Description
1310IARB
Page 1 of 6
