Summary of Contents for RHINO 34-873

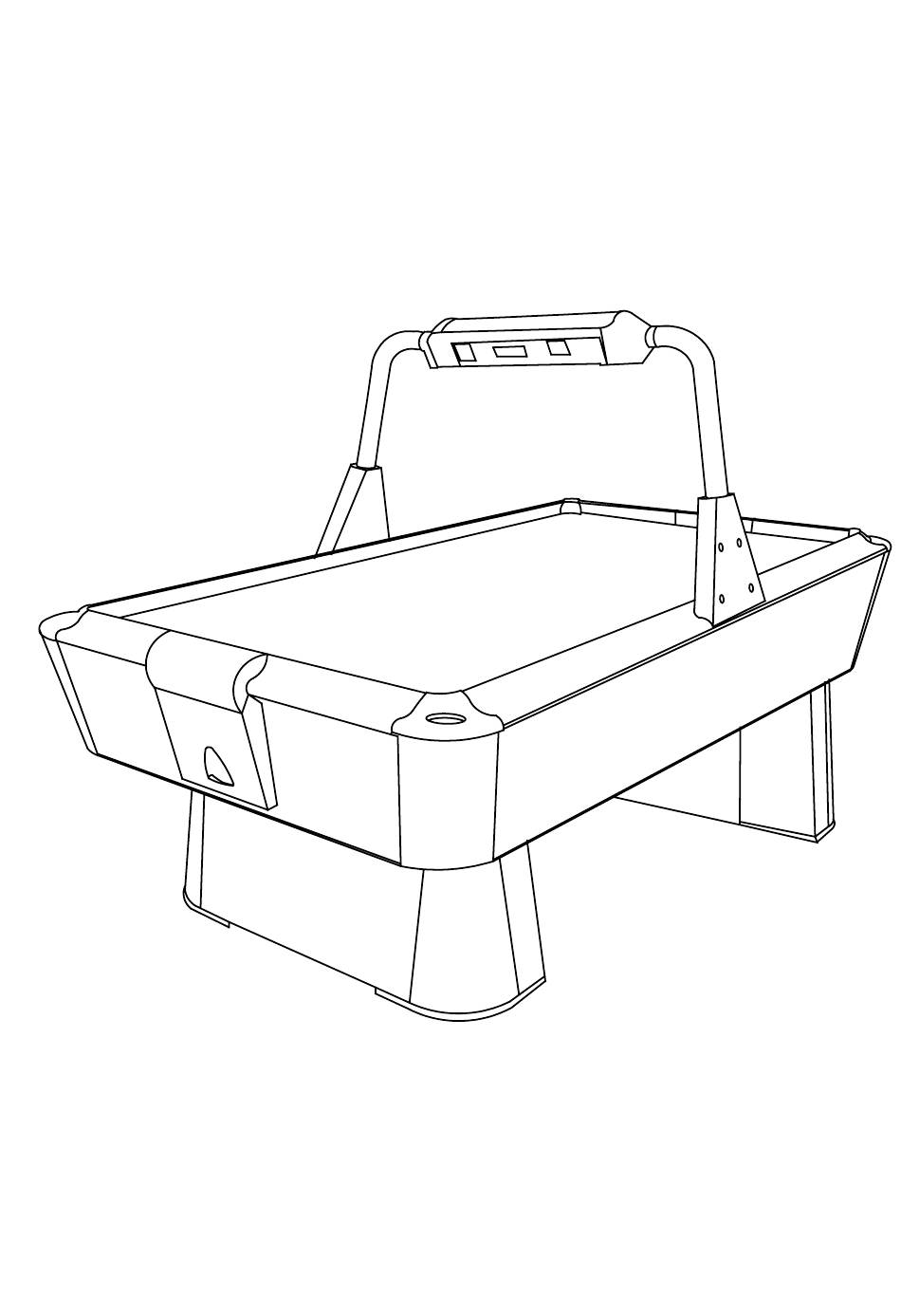

- Page 1 EL NUMBER 34-873 RHINO AIR HOCKEY INSTRUCTION MANUAL...
- Page 2 Parts List Leg End Panel- Leg End Panel- End Apron With Side Apron End Panel Apron Corner Inside Outside Opening 4 Pieces 2 Piece 2 Pieces 1 Pieces 1 Piece 2 Pieces Leg Support Leg Support Leg Side Panel Left Leg Panel Right Leg Panel Rounded Leg Panel Board-A...
- Page 3 Parts List (Pre-Installed) Hockey Puck Pusher 2mm Shim Puck Catcher Wire 4mm Allen Key 1mm Shim 4 Pieces 2 Pieces 4 Pieces 3 Pieces 1 Piece 3 Pieces Wrench 3mm Shim Adapter 3 Pieces 1 Piece 1 Piece...
- Page 4 STEP:1 • Attach one Goal Support Panel (#43) to each End Apron (#2) using two Screws (#25) per Goal Support Panel. • Attach four Plastic “U” Brackets (# 28) to both the Side Panel (#4) and (#3) using four Screws (#22) per U Bracket. •...
- Page 5 STEP:3 • Attatch two Rounded Leg Panels (#11) to one Leg End Panel - Outside (#5) using three Screws (#25) • Attatch Leg Support Board - A (#9) and the Leg Support Board - B (#10) to the Rounded Leg Panels (#11) using three Screws (#25). •...
- Page 6 STEP:5 • Attach one Left (#13) and Right (#14) Leg Base to each side of one leg assembly using two Screws (#24) and two Screws (#23). See Figure 5. • Repeat the same for the other leg assembly. • Carefully turn the the leg assembly over and place it in the location where you will play. See Figure 5A. FIGURE 5A STEP:6 •...
- Page 7 STEP:7 • Attach the Electronic Scorer Base (#31) to the Electronic Scorer Top (#32) using six Screws (#26) at each side. See Figure 7A. • Attach both Pole Bases - Inside (#34) to the side rails of the table using two Screws (#25) per Pole Base.See Figure 7B. •...
- Page 8 STEP:8 • Aattach the Control Box (#40) to the End Apron with opening (#3) with two Screws (#36). and Cover the screw holes on the pole Base-Owtside (#33) with 8pcs screw cap (#39). BLOWER Under side the ta ble Scorer Wire Adapter Home (Short Visitor (Long...
