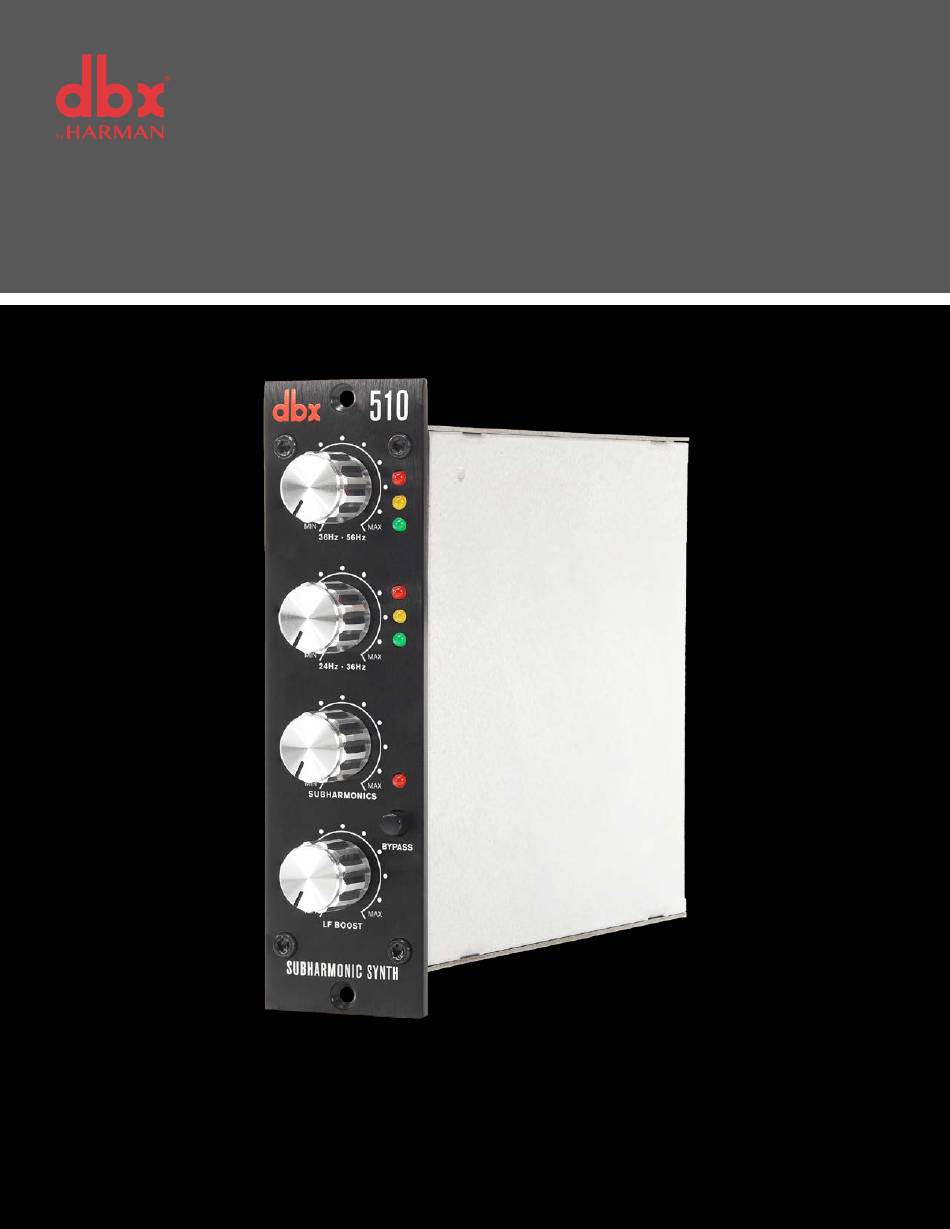

- Page 1 500 SERIES SUBHARMONIC SYNTHESIZER OWNER’S MANUAL...
- Page 2 Warranty 1. Please register your product online at www.dbxpro.com. Proof-of-purchase is considered to be the responsibility of the consumer. A copy of the original purchase receipt must be provided for any warranty service. 2. dbx warrants this product, when purchased new from an authorized U.S. dbx dealer and used solely within the U.S., to be free from defects in materials and workmanship under normal use and service.
-
Page 3: Table Of Contents
Table of Contents Overview �������������������������������������������������������������������������������� 2 Introduction ������������������������������������������������������������������������������������2 Features ������������������������������������������������������������������������������������������2 Installation ���������������������������������������������������������������������������� 3 The User Interface ��������������������������������������������������������������� 4 Using The 510 ����������������������������������������������������������������������� 5 Technical Information ��������������������������������������������������������� 6 Specifications ��������������������������������������������������������������������������������6 Recall Sheet �����������������������������������������������������������������������������������7... -
Page 4: Overview
Overview Introduction The 510 is a 500 series compliant subharmonic synthesiser that has been specifically optimized to enhance the low frequencies in audio material. The 510 was designed for use in a variety of professional audio applications, including nightclub and dance DJ mixing, theatre and film sound, music recording, sound design, live music performance, and broadcasting. The 510’s patented Modeled Waveform Synthesis™... -
Page 5: Installation
Installation FOR 500 SERIES CHASSIS MOUNT USE ONLY! To install the 510 into a 500 series chassis: Turn off the power to the 500 series chassis. Unpack the module and ensure the rear connector is free of debris. Align and slide the module into the 500 series chassis, ensuring the connectors on the back properly seat with the connectors in the chassis. -
Page 6: The User Interface

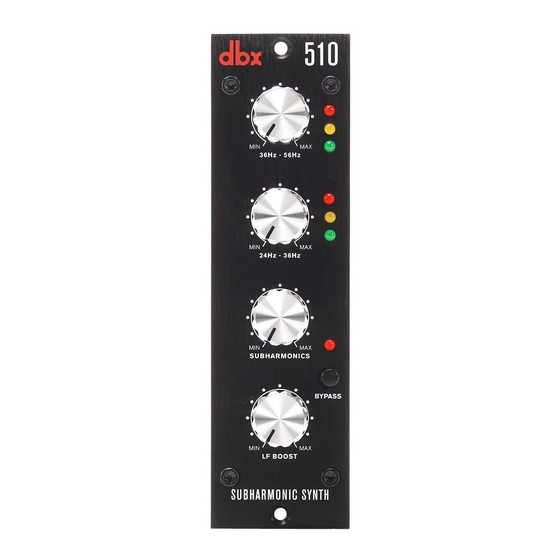

The User Interface 1. 36 Hz–56 Hz Control w/ Synthesis Level Indicator LEDs This control adjusts how much of the subharmonic synthesis effect is applied in the 36 Hz-56 Hz frequency band. The LEDs to the right of the control indicate the signal level of the effect within the band, with green indicating signal present, amber indicating the signal is approaching clipping, and red indicating clipping. -
Page 7: Using The 510
Using The 510 To set the 510, follow these steps: Start by setting the controls as shown below. Disengaged Ensure the signal has sufficient bass content to process. While monitoring the signal, raise the 36 Hz–56 Hz control until the desired amount of low-end enhancement is achieved within the frequency range. Raise the 24 Hz–36 Hz control until the desired amount of low-end enhancement and roll-off is achieved within the frequency range. -
Page 8: Technical Information
Technical Information Specifications INPUT Type: Electronically balanced/unbalanced, RF filtered Impedance: 20 kΩ balanced, 10 kΩ unbalanced Maximum Input Level: +22 dBu CMRR: >40 dB; typically >55 dB at 1 kHz OUTPUT Type: Electronically balanced/unbalanced, RF filtered Impedance: Balanced 30 Ω, unbalanced 15 Ω Maximum Output Level: +22 dBu PERFORMANCE... - Page 10 Phone: (801) 566-8800 Website: dbxpro�com Support: dbxpro�com/en-US/support dbx Professional Products is a registered trademark of Harman 510 Owner’s Manual Rev A © 2015 Harman All rights reserved...
