G&G RM-GG-950W User Manual

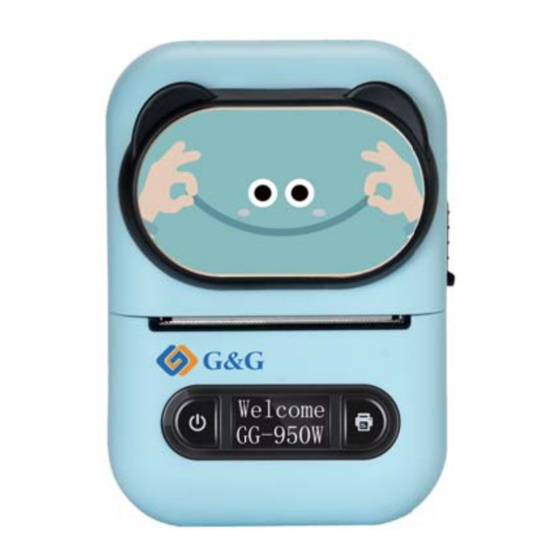

RM-GG-950W Portable Label Printer
RM-GG-950W RM GG 950W
USER'S GUIDE
Please read this carefully before using the printer and keep the manual in
a handy place for future reference.
Operating procedures of mobile APP software
4.Click the NEW label to set the 5.Click Text to create a new
6.Click Print after editing
label specification label content
7.Click Connect to turn on 8.Connect to the printer via
Bluetooth Bluetooth
Description of printer parts
Front View
Label Cover
Paper Cutter
Power Key/
Function Key
Rare View
Lateral View
USB/ Power interface
Confirm the packing list
User's guide, warranty card
One battery, which is
pre-installed in the printer
Preparation
Remarks
Fully charge the battery before using it for the first time. After the
battery is stored for a long time, it must be fully charged first, and the
battery will achieve the best results.
Prepare the printer for use, including open the label cover, charge the
battery and install the paper rolls.
9.Return to the print screen to
print
Description of LCD display
Wireless
Communication
Label exit slot
Wireless Communication
Display
After bluetooth pairing, the icon shows the connecting status
USB Mode
This icon indicates that the printer's USB is connected.
Setup Mode
This icon indicates that the printer has entered the Setup state.
FEED Key/
Setup Key
Lack Of Paper
This icon displays when the printer is out of paper or does not load the
paper roll properly. At the same time, the text description area shows:
No Paper Detected.
External Power Supply
This icon indicates whether the external power is inserted. When the
correct external power is input, the icon will be displayed. When the
external power is pulled out, the icon will disappear.
Power Indicator
This icon is used to indicate power. When charging, the icon flashes to
indicate charging status; When the battery is weak, please charge the
battery in time.
Text Description Area
This area displays the relevant text information.
RM-GG-950W Label Printer
USB cable
Thermal paper（One roll）
Battery
Thermal paper
External
Setup Mode/USB Lack Of Paper Power Indicator
Power Supply
Icon Area
Text Description Area
.
Scan the QR code to download the APP
IOS Android
Download and register the printing software APP
1.Search QLabel in the
2.Open and install the APP 3.Sign up for an account
App store
Caution
Do not take out the battery
during charging.
It can print properly while charging.
USB/Power interface
Charging: The battery indicator will flash.
End of charging: The battery indicator icon will show full power
flashing.
Install rolls
RM-GG-950W Label Printer uses the paper roll with a maximum diameter of
50mm and a maximum size of 57mm×50mm as the consumable.
Caution
First, make sure that the paper roll you
are using is a special paper roll for this
model supplied by G&G.
Make sure the paper roll is adjusted to
the proper width.
Cover the label cover after loading the
thermal paper.
Place the paper roll
as shown and Put the
print side face down.
Basic Function
Start your printer
Press the power key of the printer for 2 seconds,
and the printer will start up
Printer shut off
Press the power key of the printer
for 2 seconds when it's started up,
and the printer will shut off
Print
Press the FEED key:
Output a section of paper
Function Mode
Shutdown mode
Automatic shutdown can be set
when the printer is in standby state
Setting
Basic Settings
Enter the setting interface after starting the printer
Power Key: Language: Press the Feed key to set
English/ the language type of the
GG950W
Switch language
Simple Chinese: operation interface
(The most light concentration) 1-3
(Light concentration) 4-5
(Normal) 6-9
Power Key:
GG950W Printing color:
(Dark color) 10-14
Switch the printing color
(The darkest color) 15
Press the Feed key to set the
print definition
and stop
Print Key/Setup Key
