Motorola solutions BDN6717 Quick Start Manual

m
FLEXIBLE EAR RECEIVER
ACCESSORY
(for Two-Way Portable Radios Models
BDN6717, BDN6719, BDN6720)
Accessories
*68012009079*
68012009079-BA
MOTOROLA, MOTO, MOTOROLA SOLUTIONS and
the Stylized M logo are trademarks or registered
trademarks of Motorola Trademark Holdings, LLC and
are used under license. All other trademarks are the
property of their respective owners.
© 2013 and 2021 Motorola Solutions, Inc.
All rights reserved.
Printed in

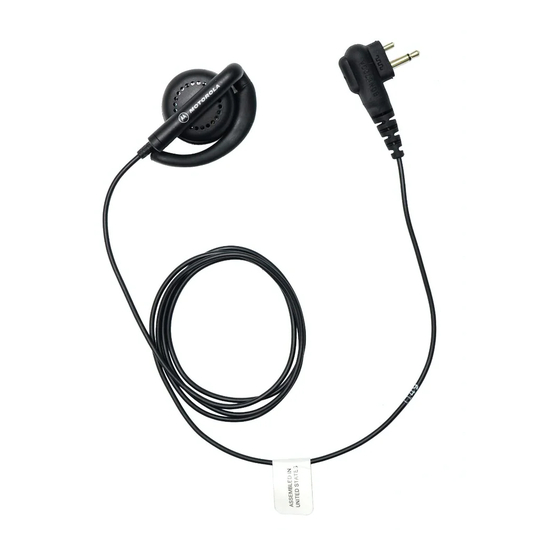

FLEXIBLE EAR RECEIVER
Model Number
BDN6717 Black earpiece with 2.5 mm (micro)
plug, includes 3.5 mm plug adapter
in package.
BDN6719 Black earpiece with 3.5 mm
threaded plug
BDN6720 Black earpiece with Radius GP300
and P110 style plug
NOTE: Due to the unique assembly configuration
of the Flexible Ear Receiver, all
components snap together. The standard
antenna must be installed on the radio for
proper operation of these accessories.
EARPIECE INSTALLATION
PROCEDURE
The flexible ear receiver is simple to install and
can be easily adjusted. Refer to the exploded
view (Figure 1) and proceed as follows:
1. To install the earpiece, rotate the rubberized
earloop (point 1) to position it over the ear.
Squeeze the earloop gently against the back of
the ear until it is firmly in place. Adjust the
speaker element (point 2) up or down to the
most secure position.
2. Turn the radio off. Plug the flexible ear receiver
plug into the accessory jack on the radio, into
the adapter jack, or into the remote speaker
Description
DESCRIPTION
The flexible ear receiver is designed to mute the
internal radio speaker and switch the receive
audio to the earpiece. This will allow the user to
privately monitor radio transmissions. Each
system configuration varies. The receiver may
plug directly into the radio accessory jack, into a
radio adapter, or into the accessory jack of the
remote speaker microphone, depending on the
particular radio.
ACOUSTIC SAFETY
Exposure to loud noises from any source for
extended periods of time may temporarily or
permanently affect your hearing. The louder the
radio's volume, the less time is required before
your hearing could be affected. Hearing damage
from loud noise is sometimes undetectable at first
and can have a cumulative effect.
To protect your hearing:
• Use the lowest volume necessary to do your
job.
• Turn up the volume only if you are in noisy
surroundings.
• Turn down the volume before connecting
headset or earpiece.
• Limit the amount of time you use headsets or
earpieces at high volume.
• When using the radio without a headset or
earpiece, do not place the radio's speaker
directly against your ear.
microphone earpiece jack, depending upon the
application. Turn the radio on. All radio
transmissions should now be heard through
the ear receiver.
4) Elbow
Earloop
Rotation
Left Ear
Position
1) Earloop
Figure 1: Exploded view of earpiece
3. To rotate the earloop from right to left ear or
vice versa, hold the speaker arm in one hand
(point 3) and the earloop (point 1) in the other
hand. Rotate the earloop elbow (point 4) 180 °
in a clockwise motion. Next, rotate the actual
earloop (point 1) 180 ° in a clockwise motion.
Reinstall the earpiece as described in point 1
and 2.
Elbow
Rotation
3) Speaker Arm
Right Ear
Position
2) Speaker
Speaker
Movement
