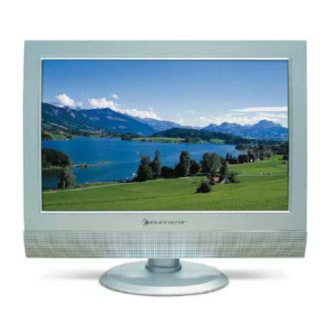

22" LCD Television

Advertisement

   Related Manuals for Element FLX-2210

   Summary of Contents for Element FLX-2210

  • Page 1

    FLX-2210 22” LCD Television...

  • Page 2

    As a consumer, you are responsible for ensuring that this product is disposed of properly. To fi nd out how to properly dispose of this product, please go to www.Element Electronics.com and click on “Company“ or call the customer service number for your country listed in the instruction manual.

  • Page 3: Federal Communications Commission Statement

    3. Connect the equipment into an outlet on a circuit which is different from what the receiver is connected to. 4. Consult the dealer or an experienced radio/TV technician for help. Changes or modifi cations not expressly approved by the manufacturer responsible for compliance could void the user authority to operate the equipment.

  • Page 4: Warnings And Precautions

    Warnings and Precautions Warnings and Precautions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference.

  • Page 5

    ▪ Use and handle the power cord with care. Do not place any heavy objects on the AC power cord. ▪ Do not pull the AC power cord. Do not handle the AC power cord with a wet hand. ▪ Do not touch the power cord and antenna cable during lightning. ▪...

  • Page 6: Antenna Safety Instructions

    Warnings and Precautions Outdoor Antenna Safety Instructions If an outdoor antenna is connected, follow the precautions below: ▪ An outdoor antenna should not be located in any area where it could come in contact with overhead power lines, or any other electric light or power circuits. ▪...

  • Page 7: Table Of Contents

    Your LCD TV ... 10 Your Remote Control ... 12 Chapter 2 Installing the LCD TV Connecting a TV Cable or an Antenna ... 14 Connecting an A/V Device with Composite Connector ... 19 Connecting an A/V Device with S-Video Connector ... 20 Connecting an A/V Device with Component(YPbPr) Connector...

  • Page 8: Chapter 1 Introducing The Lcd Tv

    ▪ 1 set of Audio(L/R) output terminals for composite C-VIDEO/S-VIDEO ▪ 1 COAXIAL output terminal ▪ 1 Headphone terminal The built-in TV tuner to receive HD ATSC ▪ This function allows the reception of HD broadcasting without the addition of a set top box.

  • Page 9: Package Contents

    Power Cord User’s Manual These items are all you need to set up and operate the LCD TV in its basic confi guration. Make sure all of the above contents are included in the package. If you are missing any items, please contact the Element Electronics customer service department.

  • Page 10: Setting Up Your Lcd Tv

    Cover an even stable surface with a soft cloth. Place the LCD TV unit face- down on the cloth. Fit the stand onto the bottom of the LCD TV unit as shown: Then push until stand into the LCD TV’s stand socket.

  • Page 11

    Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal (refer to page 15-18). Connect the AC power cord at the back of the TV and connect the power cord to wall outlet. Insert the 2 batteries supplied in remote control.

  • Page 12: Your Lcd Tv

    Press once to display the OSD (on screen display), press again to turn the OSD off. INPUT Chooses from different input signal sources. Turns the LCD TV on and into standby mode. Front View Left Side View HEADPHONE Connects to the external...

  • Page 13

    Connects to the audio jack on the digital/standard 5.1 audio system. VHF/UHF IN Connects RF input from VHF/UHF antenna or cable to receive high/standard defi nition television. Chapter 1 Introducing the LCD TV HDMI IN COAXIAL VIDEO IN S-VIDEO IN...

  • Page 14: Your Remote Control

    CAPTION SLEEP P.SIZE MUTE VOL. INPUT GUIDE EXIT INFO MENU Turns the LCD TV on and off. Cycles through the multi-channels TV sound(MTS) options: SAP/MONO/ STEREO Selects sound effect options: Surround/ S.MODE Live/Dance/Techno/Classic/Soft/Rock/ Pop/Off. Selects picture mode: Vivid/Hi-Bright/ P.MODE Cinema/Sport/User Cycles through Wide mode settings : P.SIZE...

  • Page 15

    EXIT INFO MENU Eff ective range: The remote can control the LCD TV from up to 5m away, if pointed directly at the receiver. Chapter 2 Installing the LCD TV Pressing INPUT display the source list, INPUT use ▲▼ to select the video equipment...

  • Page 16: Chapter 2 Installing The Lcd Tv

    Connecting a TV Cable or an Antenna Antenna Connection The antenna requirements for good color TV reception are more important than those for a black & white TV reception. For this reason, a good quality outdoor antenna is strongly recommended.

  • Page 17

    A: Shows how to use a VHF/UHF combination outdoor antenna. B: Shows how to use a separate VHF and/or UHF outdoor antenna. A. Combination VHF/UHF antenna B. Separate VHF and/or UHF antennas Chapter 2 Installing the LCD TV VHF/UHF Antenna 300/75-ohm adapter...

  • Page 18

    Use of this TV for other than private viewing of programs broadcasted on UHF, VHF or transmitted by cable companies for the use of the general public may require authorization from the broadcast/cable company, and/ or program owner.

  • Page 19

    Use a supplied antenna cable to connect the TV signal to the LCD TV’s TV CABLE terminal. VHF/UHF IN Connect the AC power cord at the back of the TV and connect the power cord to wall outlet. Press the button on the remote to turn on the LCD TV.

  • Page 20

    Chapter 2 Installing the LCD TV Press the button on the remote to turn on the LCD TV. Press the button on the remote to display the Input List. Use the ▲▼ buttons to select Input TV and press the OK button.

  • Page 21: Connecting An A/v Device With Composite Connector

    LCD TV. To view the A/V device’s with component input, select VIDEO1. Not all A/V devices have the ability to connect to a TV. Please check your A/V devices user guide for compatibility. Chapter 2 Installing the LCD TV...

  • Page 22: Connecting An A/v Device With S-video Connector

    TV’s audio inputs. Use a S-Video cable to connect output jack to the LCD TV’s S-Video IN input jack. Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment. Press the button on the remote to turn on the LCD TV.

  • Page 23: Connecting An A/v Device With Component(ypbpr) Connector

    AUDIO Cable COMPONENT Cable Not all A/V device have the ability to connect to a TV. Please check your A/V device user guide for compatibility. Use a component cable to connect the external A/V device’s component output jacks to the LCD TV’s YPbPr IN input jacks.

  • Page 24: Connecting An Av Equipment With Hdmi Connector

    AUDIO IN AUDIO IN HDMI Cable Use a HDMI cable to connect the AV equipment’s HDMI output jack to the LCD TV’s HDMI IN jacks. Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

  • Page 25: Connecting An Av Equipment With Dvi Connector

    AUDIO IN AUDIO IN AUDIO Cable HDMI-to-DVI Cable Use a HDMI-to-DVI cable to connect the AV equipment’s DVI output jack to the LCD TV’s HDMI IN jacks. Use an audio cable to connect the AUDIO jacks. Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

  • Page 26: Connecting A Pc

    AUDIO Cable VGA Cable Use a D-SUB cable to connect the PC’s D-SUB output jack to the LCD TV’s VGA input jack. Use an audio cable to connect the PC’s audio output jacks to LCD TV’s. Connect all AC power sources, before turning on the power switch of the LCD TV or other connected equipment.

  • Page 27: Connecting An Audio Receiver Or A Dolby Digital 5.1 Sound System

    For better sound quality, you may want to use a Home Theater/Stereo System. NOTE: If you have a Home Theater/Stereo System that you would like to use with your new Element Electronics TV, we recommend that you do NOT use your TV’s audio output for this connection. For the best sound quality, our product testing has shown that you should connect your Home Theater/ Stereo System directly to your A/V device.

  • Page 28: Chapter 3 Using The Features

    Chapter 3 Using the LCD TV Chapter 3 USING THE FEATURES Wide Screen Viewing Wide Screen function allows viewing of 4:3/16:9 images in wide screen mode, cycling through the following wide screen settings. Press the P.SIZE button repeatedly to select the screen format you want.

  • Page 29: Using The Program Guide

    With the LCD TV connected to a television programming source, press the INPUT button on the remote control and use the ▲▼ buttons to select TV and press the OK button. Press the GUIDE button on the remote control, the Program Guide will appear on the...

  • Page 30: Operating The Menu

    Picture Mode Vivid Contrast Brightness Color Temperature Noise Reduction Medium Video Select Exit ▪ If the signal source is TV, the AUDIO MENU appears as: Bass Treble Balance Sound Eff ect Surround Stereo SPDIF Type Dolby Digital Audio Language...

  • Page 31

    Select Exit SETUP MENU: Allows you to set up a variety of features: Language, Closed Caption, factory reset, Parental Control sleep timer. ▪ If the signal source is TV/VIDEO/S-VIDEO/YPbPr, the SETUP MENU appears as: OSD Language English Time Setup Closed Caption...

  • Page 32: Customizing The Video Settings

    Chapter 3 Using the LCD TV Customizing the VIDEO Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the VIDEO.

  • Page 33

    Controls the width of the picture based on the VGA mode ▪ Phase Controls the signal phase, which can improve focus clarity and image stability based on the VGA mode Chapter 3 Using the LCD TV User Select Back Select...

  • Page 34: Customizing The Audio Settings

    Allows selection of an audio-enhancement technique from among the Sound Eff ect following options: Surround/Live/Dance/Techno/Classic/Soft/Rock/ POP/Off Allows you to listen to high-fi delity stereo sound while watching TV ▪ Stereo: Use separate audio tracks for left and right speakers, if available ▪ SAP:...

  • Page 35

    Select for surround sound (for stereo programs only) ▪ OFF: Select OFF to turn off the external audio system Allows to select the audio language: English/Spanish/French. Audio Language Allows to select to turn on or off the TV speakers. Speaker Chapter 3 Using the LCD TV...

  • Page 36: Customizing The Tv Settings

    Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the TV. Use the ▲▼buttons to highlight an individual TV option, use the ◄► buttons changes the setting, and press the MENU exits the menu.

  • Page 37

    Press the ▼ button to select the desired channel, andpress the OK button repeatedly to select show ( ) or hide( ) Allows selection of regional TV systems of USA: Eastern Time/ Time Zone Indiana/Central time/Mountain Time/Arizona/Pacifi c Time/Alaska/ Hawaii...

  • Page 38: Customizing The Setup Settings

    Chapter 3 Using the LCD TV Customizing the SETUP Settings Press the button to turn the LCD TV on. Press the MENU button on the remote control to display the Main menu, and use the ◄► buttons to select the SETUP.

  • Page 39

    Window Color Window Opacity Cloaed Caption Style The Parental Control can be set up to the TV to block Channel, Parental Video Source and to change password. Use the ▼ button to select the Parental, and press the OK to...

  • Page 40

    Chapter 3 Using the LCD TV Channel Block Input Block Change Password Allows adjustment of the display’s gamma correction, which fi ne Gamma tunes both brightness and red/green/blue ratios: On/Off/Middle. Press the OK button to restore factory settings Reset Default Allows to block digital channels.

  • Page 41: Using The Program Block Settings

    Program Block menu. U.S.TV Ratings U.S. Movie Ratings Canadian English Ratings Canadian French Ratings Block MPAA Unrated Block TV Unrated Parental Block Select Back Chapter 3 Using the LCD TV Program Block Channel Block Input Block Change Password Parental Enter Select Back...

  • Page 42

    ▪ NO: Allows all movies that are broadcast without a MPAA rating ▪ YES: Block TV None Rating Block all movies that are broadcast without a TV rating. ▪ NO: Allows all movies that are broadcast without a TV rating.

  • Page 43

    U.S. TV Ratings The U.S.TV Rating has 2 rating methods: Content-Based Rating and Age-Based Rating. The U.S.TV Rating includes the following options: TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA Allowed Rating Blocked Rating U.S. TV Ratings Select Back AGE-BASED RATING DESCRIPTION...

  • Page 44

    Chapter 3 Using the LCD TV Canadian English Ratings Canadian Englsh Ratings includes the following options: Allowed Rating Blocked Rating Canadian English Ratings Select Back RATING DESCRIPTION All children Children 8 years and older General programming Parental guidance Viewers 14 and older Adult programming ▲...

  • Page 45

    U.S. Movie Ratings The U.S. Movie Ratings is used for original movies rated by the Motion Picture Association of America(MPAA) as broadcasted on cable TV and not edited for television. U.S. Movie Ratings includes the following options: PG-13 NC-17 Allowed Rating Blocked Rating U.S.

  • Page 46: Specifi Cations

    AC100~240V, 50/60HZ, 1.2A AC100~240V, 50/60HZ, 1.2A Power Consumption 50 W, standby < 5 W Dimension 15.2 w x 13.6 h x 5.2 d inch WEIGHT 7.1 LB MODEL FLX-2210 LCD Panel Panel Size 22” TFT LCD Brightness Contrast Ratio 700:1 Max. Resolution...
