Seraphim SRP 6PB-DG Installation Manual

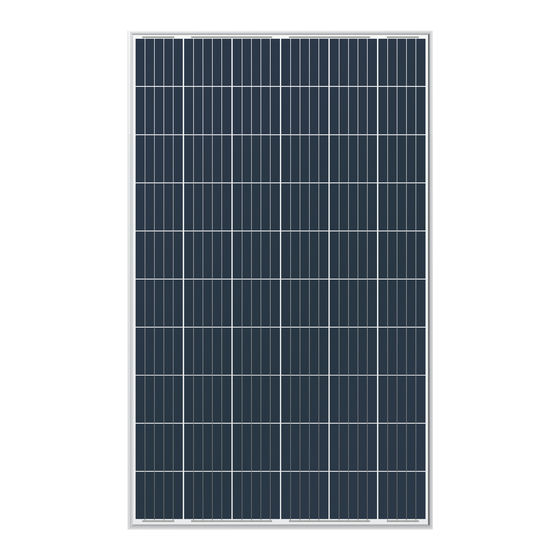

Photovoltaic module
Hide thumbs
Also See for SRP 6PB-DG:
- Installation manual (59 pages) ,
- Installation manual (9 pages) ,
- Manual (24 pages)
Related Manuals for Seraphim SRP 6PB-DG
Summary of Contents for Seraphim SRP 6PB-DG
- Page 1 1V1.0 SERAPHIM DG AND BG PHOTOVOLTAIC MODULE JIANGSU SERAPHIM PHOTOVOLTAIC SYSTEM CO. LTD. ADDRESS: No.10, TongshunRD, Henglin Town, Wujin District, Changzhou, China TELEPHONE: +86-519-69699879 MAILBOX: info@seraphim-energy.com...
- Page 2 Thanks for choosing Seraphim Photovoltaic Modules (hereafter referred to as “PV Module”), This Guide is to give information on how to apply Seraphim PV NEC for the USA and CEC for Canada).
- Page 3 • Only use insulated tools that are qualified for working on electrical installations. Check the serial No. in the barcode with the packing list when unpacking. Provide PV module serial No. when you need support from SERAPHIM on particular PV • Follow the safety regulations for all other system components, including wires modules.
- Page 4 INSTALLATION GUIDE FOR SERAPHIM INSTALLATION GUIDE FOR SERAPHIM DUAL GLASS PHOTOVOLTAIC MODULE DUAL GLASS PHOTOVOLTAIC MODULE The frameless dual glass module is designed for clamp installation. It need the 【1】 • Module can be installed in both landscape and portrait modes clamps with rubber strips to fix on the bracket.
- Page 5 INSTALLA TION GUIDE FO R SERAPHIM INSTALLATION GUIDE FOR SERAPHIM DUAL GLASS PHOTOVOLTAIC MODULE DUAL GLASS PHOTOVOLTAIC MODULE Loads Clamp Length Installation Drawing The dual glass module with frame is designed for clamp installation . It needs the clamps, bolts, nuts and washers to fix on the bracket(as shown in figure 5 and figure 6).
- Page 6 INSTALLATION GUIDE FOR SERAPHIM INSTALLATION GUIDE FOR SERAPHIM DUAL GLASS PHOTOVOLTAIC MODULE DUAL GLASS PHOTOVOLTAIC MODULE Clamp Length Loads Installation Drawing ≥ + 5400 Type 1 - 2400 ≥5 + 5400 Type 2 - 2400 The dual glass module with frame is also designed for screw installation . It needs the screws, bolts, nuts and washers to fix on the bracket(as shown in fig7).
- Page 7 INSTALLATION GUIDE FOR SERAPHIM INSTALLATION GUIDE FOR SERAPHIM DUAL GLASS PHOTOVOLTAIC MODULE DUAL GLASS PHOTOVOLTAIC MODULE Loads(Pa) Installation Site Screw Number Installation Drawing Inner four holes + 5400 Outer four holes - 2400 Figure 7 M8 Screw installation In order to ensure that the modules can withstand a downward force of up to...
-
Page 8: Installation
The parameters may be updated time to time, accurate parameters please be taken into consideration when calculate the Voc of the PV string . check on our website: http://www.seraphim-energy.com or email to our techni The PV modules connected in parallel shall have similar Voltage. The Isc tempera- cal support team: technic@seraphim-energy.com. -
Page 9: Inspection Before Use
INSTALLATION GUIDE FOR SERAPHIM INSTALLATION GUIDE FOR SERAPHIM DUAL GLASS PHOTOVOLTAIC MODULE DUAL GLASS PHOTOVOLTAIC MODULE ATTACHMENT 1 INSTRUCTIONS FOR USE OF CONVERSION CABLES Conversion cables are required to meet any of the following conditions: 1. When the DC side input terminal of the inverter or combiner box is original MC4. - Page 10 INSTALLATION GUIDE FOR SERAPHIM DUAL GLASS PHOTOVOLTAIC MODULE The schematic diagram is as follows: Precautions: 1. Make sure that the polarity of the string after connection matches the polarity between the inverter or combiner box. 2. When using, install and connect strictly according to the schematic diagram, and do not reverse operation.
