Summary of Contents for Syncronorm SyncroADC

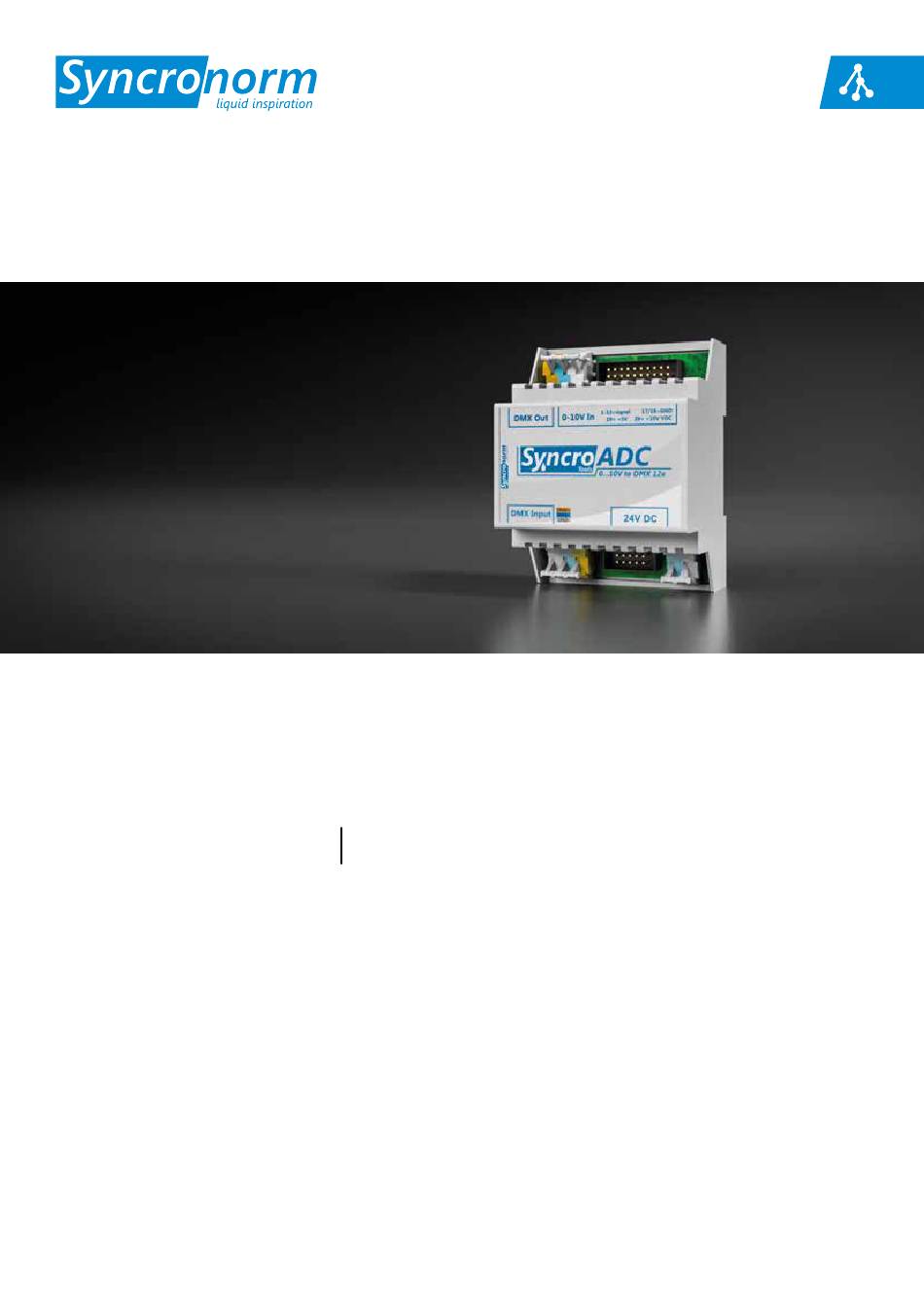

- Page 1 SyncroADC Operating Manual www.syncronorm.com #liquidinspiration info@syncronorm.com...
- Page 2 & hardware solutions fitting to your dedicated project. From show-design, training-programs, instant support & consulting to continuously soft- & hardware development, the team at Syncronorm is eager to realize your visions. Syncronorm provide the most established & renowned products for the entertainment- &...
- Page 3 The SyncroADC Multiplexer converts analog control signals (0...10V DC) into digital DMX control signals. The SyncroADC accepts 12 analog Inputs. It is ideally suited to integrate operating Panels or analog inputs into the Syncronorm Depence Network Structure. The unit may be configured for linear Mode, to switching mode or to 1...10V Input sensitivity.
- Page 4 Preface This document is a guideline for controlling the hardware of Syncronorm‘s fountain control systems. The information contained in this manual will give you a sufficient understanding of this product, helping you to use the unit correctly and effectively. Adhere to all instructions contained in this manual, when installing and operating this unit.
-
Page 5: Safety Instructions
This unit requires the SyncroTools DMX address board (SN-STADRB) (not included). Intended Use The Syncronorm DMX Multiplexer 3112A-H will convert analog input voltages to digital DMX512 signals according to USITT DMX512/1990 (United States Institute for Theatre Technology, www.usitt.org) , ANSI E1-11 DMX512-A (www.ansi.org) or DIN56930-2 (www.din.de). -
Page 6: Save Operation
Syncronorm GmbH or personnel with suitable training. Dangers resulting from non-adherence to the Safety Information Please note that Syncronorm GmbH assumes no liability for damage, downtimes or malfunctions resul- ting from non-adherence to this installation and operating manual. By ignoring or not adhering to all of the safety information contained in this manual, you could endanger people, the environment and the system of this unit. - Page 7 Syncronorm GmbH have neither been tested nor approved by Syncronorm GmbH. For this reason, the installation and/or use of such products can, under certain circumstances, negatively affect the specifications for the device. This could also lead to restrictions of the active and/or passive safety of the device.
- Page 8 20 +10V DC stabilized out CN5 START ADDRESS 10-pin connector Connector to connact a start address board 3000P or 3003P for start address and device properties pro- gramming. Unit may be used with or without start address board attached. (C) 2021 Syncronorm GmbH...
-
Page 9: Important Notice
The multiplexer can be used for signal input voltages from 0..10V or 1...10V,respectively. (to change the input range see chapter „DIP SWITCHES“). If inputs are required to comply with unpowered 1-10V driving gear, use an additional 1mA current source to supply the required bias current. (C) 2021 Syncronorm GmbH... -
Page 10: Settings & Setup
ON: Switch Mode, OFF<2,5V, ON>7,5V DIP-SWITCH 3 SWITCHING MODE OFF: input voltage 0...+10V DC ON: input voltage 1...+10V DC DIP-SWITCH 4 MERGE MODE OFF: Normal, DMX data merged HTP with analog data ON: Prevail, DMX data replaced with analog data (C) 2021 Syncronorm GmbH... - Page 11 • Connect the equipment to an outlet other than the receiver ‘s • Consult a dealer or an experienced radio/TV technician for assistance FCC Caution: Any change or modification to the product not expressly approved by SLH could void the user’s authority to operate the device. (C) 2021 Syncronorm GmbH...
-
Page 12: Guarantee Conditions
If services by Syncronorm GmbH are provided under the terms of this guarantee, this does not lead to extension or renewal of the guarantee period. Your legal rights as a purchaser, especially those ensuing from the warranty, persist.
