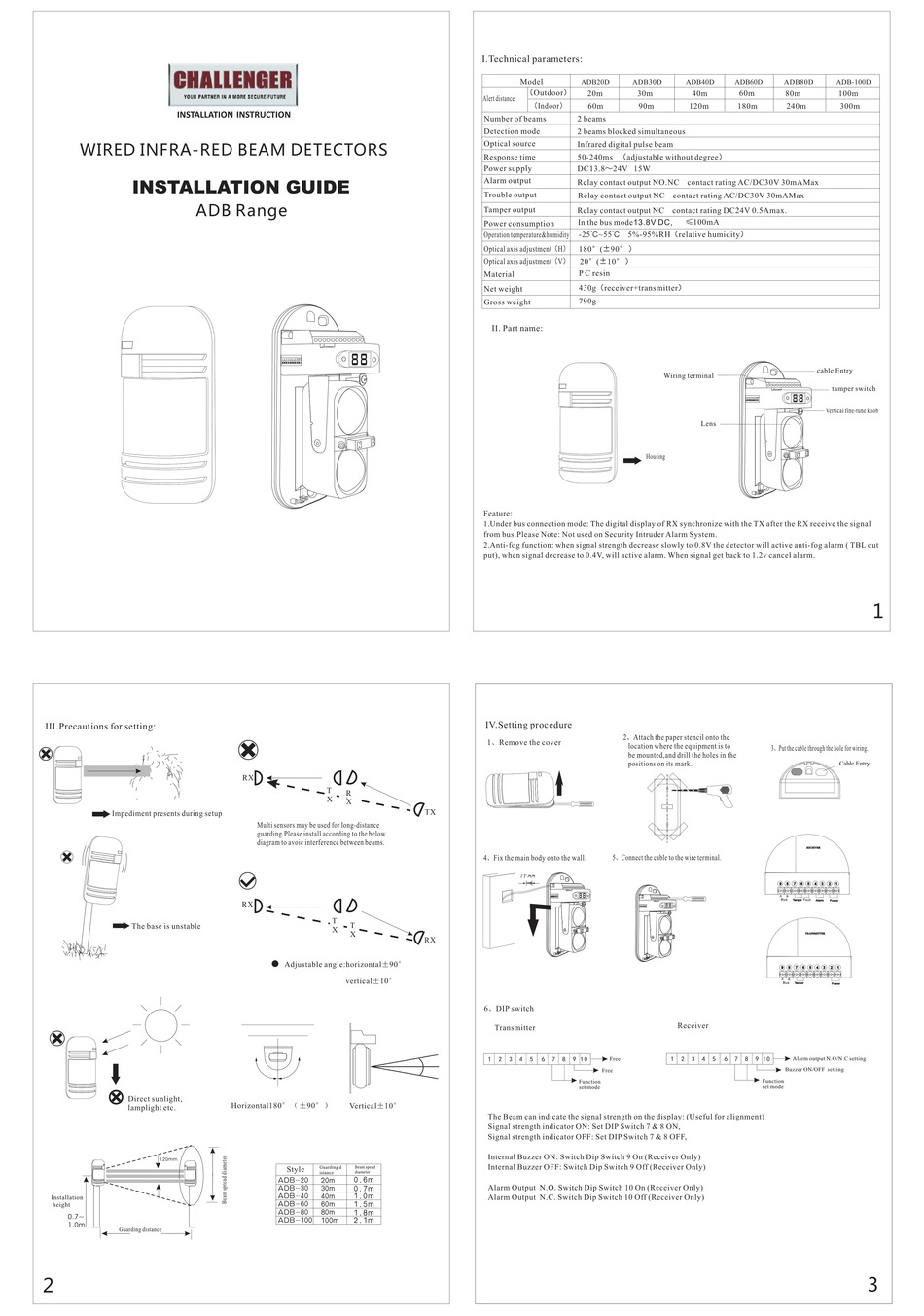

Challenger ADB Series Installation Manual

INSTALLATION INSTRUCTION
WIRED INFRA-RED BEAM DETECTORS
ADB Range
III.Precautions for setting:
Impediment presents during setup
The base is unstable
Direct sunlight,
lamplight etc.
Installation
height
Guarding distance
2
8 8
9 1 0
RX
T
R
X
X
Multi sensors may be used for long-distance
guarding.Please install according to the below
diagram to avoic interference between beams.
RX
T
T
X
X
Adjustable angle:horizontal±90°
vertical±10°
Horizontal180°（±90°） Vertical±10°
Guarding d Beam spead
Style
istance diameter
0.6m
ADB -20 20 m
ADB-30 30m 0.7m
ADB-40 1.0m
40m
ADB-60 60m 1.5m
ADB-80 80m 1.8m
ADB-100 100m 2.1m
I.Technical parameters:
Model
ADB2 D
（Outdoor）
20m
Alert distance
（Indoor）
60m
Number of beams 2 beams
Detection mode 2 beams blocked simultaneous
Optical source
Infrared digital pulse beam
50-240ms （adjustable without degree）
Response time
Power supply DC13.8～24V 15W
Alarm output
Relay contact output NO.NC contact rating AC/DC30V 30mAMax
Trouble output
Relay contact output NC contact rating AC/DC30V 30mAMax
Tamper output
Relay contact output NC contact rating DC24V 0.5Amax.
In the bus mode 13.8V DC,
Power consumption
Operation temperature&humidity -25℃~55℃ 5%-95%RH（relative humidity）
Optical axis adjustment（H） 180°(±90
Optical axis adjustment（V） 20°(±10
P C resin
Material
430g（receiver+transmitter）
Net weight
790g
Gross weight

II. Part name:

Feature:
1.Under bus connection mode: The digital display of RX synchronize with the TX after the RX receive the signal
from bus.Please Note: Not used on Security Intruder Alarm System.
2.Anti-fog function: when signal strength decrease slowly to 0.8V the detector will active anti-fog alarm ( TBL out
put), when signal decrease to 0.4V, will active alarm. When signal get back to 1.2v cancel alarm.
IV.Setting procedure
1、Remove the cover
TX
4、Fix the main body onto the wall.
15mm
8 8
9 1 0
RX
6、DIP switch
Transmitter
1 2 3 4 5 6 7 8 9 1 0
Function
set mode
The Beam can indicate the signal strength on the display: (Useful for alignment)
Signal strength indicator ON: Set DIP Switch 7 & 8 ON,
Signal strength indicator OFF: Set DIP Switch 7 & 8 OFF,
Internal Buzzer ON: Switch Dip Switch 9 On (Receiver Only)
Internal Buzzer OFF: Switch Dip Switch 9 Off (Receiver Only)
Alarm Output N.O. Switch Dip Switch 10 On (Receiver Only)
Alarm Output N.C. Switch Dip Switch 10 Off (Receiver Only)
0 ADB 30 D ADB 40 D ADB D 60
30m 40m 60m
90m 120m 180m
≤100mA
° ）
° ）
Wiring terminal
9 1 0
Lens
Housing
2、Attach the paper stencil onto the
location where the equipment is to
3、Put the cable through the hole for wiring.
be mounted,and drill the holes in the
positions on its mark.
5、Connect the cable to the wire terminal.
8 8
9 1 0
Receiver
1 2 3 4 5 6 7 8 9 1 0
Free
Free
Function
set mode
ADB 80 D ADB -100 D
80m 100m
240m 300m
cable Entry
tamper switch
8 8
Vertical fine-tune knob
1
Cable Entry
RECEIVER
9
9 8 7 6 5 4 3 2 1
A B
Bus
Tamper Fault Alarm
Power
TRANSMITTER
9 8 7 6 5 4 3 2 1
A B
Bus Tamper
Power
Alarm output N.O/N.C setting
Buzzer ON/OFF setting
3
