Summary of Contents for Redring VORTEX INSTANT I3VS

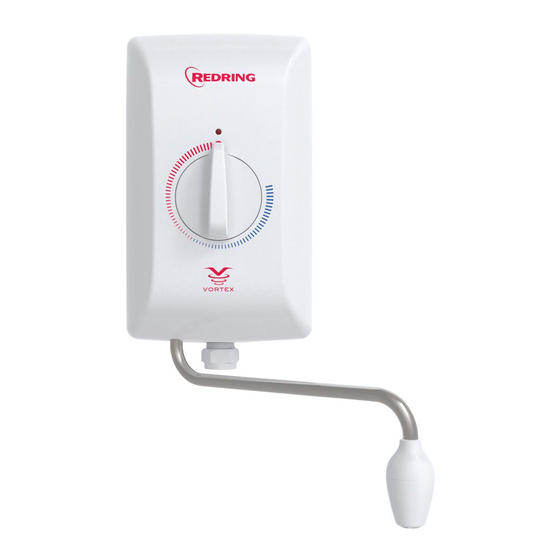

- Page 1 INSTANT I3VS MANUAL ELECTRIC HANDWASH Installation and User Guide IMPORTANT: This booklet should be left with the user after installation and demonstration.
- Page 2 THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE AND PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED.
- Page 3 1. Remove the three screws securing the handwash unit cover and remove the cover complete with the control knob. 2. Place the handwash unit on the wall and determine the entry position of the water inlet supply pipe. Ø15mm copper, chrome polished or stainless Plan your own installation carefully.
- Page 4 WARNING: THIS HANDWASH MUST BE EARTHED. The electrical installation must be in accordance with the current BS.7671 (IET Wiring Regulations) and ‘Part P’ of the Building Regulations and/or local regulations 1. The handwash unit is designed for a single phase AC electrical supply. 2.
- Page 6 4. Check that the water flows freely from the handwash within a few seconds. The water from the patented ‘Vortex’ sprayhead will be at full force and at a cool temperature. 5. Rotate the control knob slowly clockwise. This will gradually reduce the water flow with It is necessary to engage the control knob the water temperature remaining cool.
- Page 7 Make a note of those numbers here, and be sure to quote them if you call for advice. Manufacturer Redring Model Number: Product I3VS ....... .
- Page 8 For the service work to be undertaken free of charge, the work must only be undertaken by Redring Xpelair Group Limited, or our approved agents. f) Service under guarantee has no effect on the expiry date.
