- Page 1 MIA ROBOTIC POOL CLEANER HJ1005 USER MANUAL Subject to update by manufacturer without prior notice...
- Page 2 Important Precautions This model applies to swimming pool with flat floor. Do not power on the unit when it is outside of the water. Make sure the power cord is connected to a leakage protective device and appropriate earthed socket. Do not operate the cleaner when there is people in pool.
- Page 3 scratch to the pool surface. Install the brush before use to avoid possible dirt leaks. 3. Please press the buckle to make sure top cover is tightly assembled.
- Page 4 Contents Ⅰ. Introduction································································································P. 5 Ⅱ. Safety········································································································P. 5 Ⅲ. Specifications·····························································································P. 5 Ⅳ. Cleaner Structure························································································P. 6 Ⅴ. Operation Instructions·················································································P.7 Ⅵ. Trouble Shooting·························································································P. 13 Ⅶ. Packing List································································································P. 13 Ⅷ Warranty·····································································································P. 14...

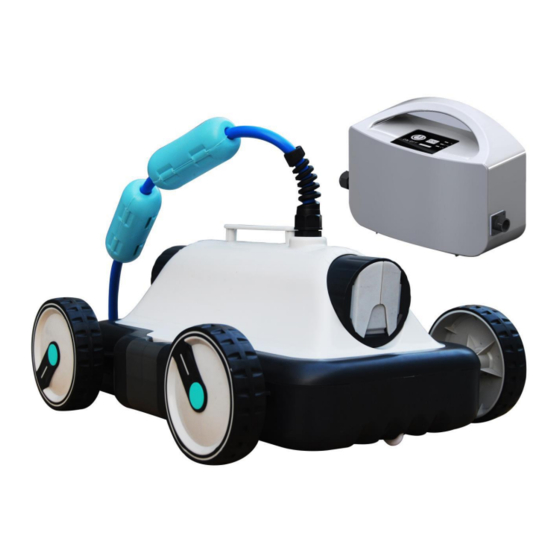

- Page 5 Ⅰ. Introduction: The automatic swimming pool floor cleaner MIA HJ1005 is a new type of highly efficient swimming pool cleaning equipment. Through its advanced computer controlled program, it can clean the pool floor automatically without draining pool water. At the same time, it filters the pool water and gets rid of suspended particles and sediments.
-
Page 6: Ⅳ. Cleaner Structure
Ⅳ. Cleaner Structure Top Cover Filter Tray Chassis Assembly the cleaner according to above structure... - Page 7 Ⅴ. Operation Instruction 5.1 Cable connection 5.1.1 Plug the cable line into the socket on the power supply unit (note: make sure to plug it in the correct direction and position), and fasten the nuts on both sides of the plug. Please plug or unplug the cable holding...
- Page 8 Chart 5-1. Buttons & indicator lights instructions Item Name Function Detail ON / OFF Power on or off Power on or off Stop after 1 hour working, Moving direction reverses every 16 seconds, suit for small swimming pool Stop after 1.5 hour working, Moving direction reverses every 25 CYCLE seconds, suit for medium swimming...
- Page 9 5.3.2 Recommended cycle and nozzle settings: Setting 1 (Default Setting), 0°/ 30°, for most pools. Nozzle Moving path Setting 2, 0°/ 20°Chose this angle in case cable twist occurs under Setting 1. Nozzle Moving path...
- Page 10 Setting 3, 0°/ 40° For a larger pool coverage. Nozzle Moving path Setting 4, 20°/ 20° , For round pool. Nozzle Moving path Note: Above are recommended settings, different setting may applies to specific pools.
- Page 11 5.4 Methods of puting the cleaner into pool Hold a proper position of the cable by one hand ( be sure that the cable from hand to cleaner will let the cleaner immerge into water but above the floor), hold the cleaner handle by the other hand to put the cleaner into water slowly.
- Page 12 5.6 Filter tray replacement Press buckle to disassemble Replace and press to assemble 5.6 Sweeping mode Under normal circumstances, nozzle towards obliquely upward so as to avoid blowing away sewage on the pool floor. For some specific pools, sweeping mode could be used for blowing up debris located in dead corner or fine particles so as to collect or filter them by main filter system of the pool.
-
Page 13: Ⅵ. Trouble Shooting
Ⅵ. Trouble Shooting Symptom Possible reason Corrective action Cable not fully released Unplug power line and release cable Nozzle in extra angle Adjust water outlet into proper angle Cable twists or coils Obstruction in pool Remove obstruction in pool Stuck on main drain outlet Turn off pool filter system of the pool Long time working... - Page 14 Ⅷ. Warranty This product has passed all quality control and safety tests, conducted by the technical department of the factory Warranty information: 1. Warranty period is 1 year and is settled in accordance with the terms established by Directive 1999/44/EC of 25 of May regarding guarantees on the sale of consumer goods as well as the local law in the Country of Purchase within the European Union.
