Tuindeco Platdak Oslo XL 42.7905 Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

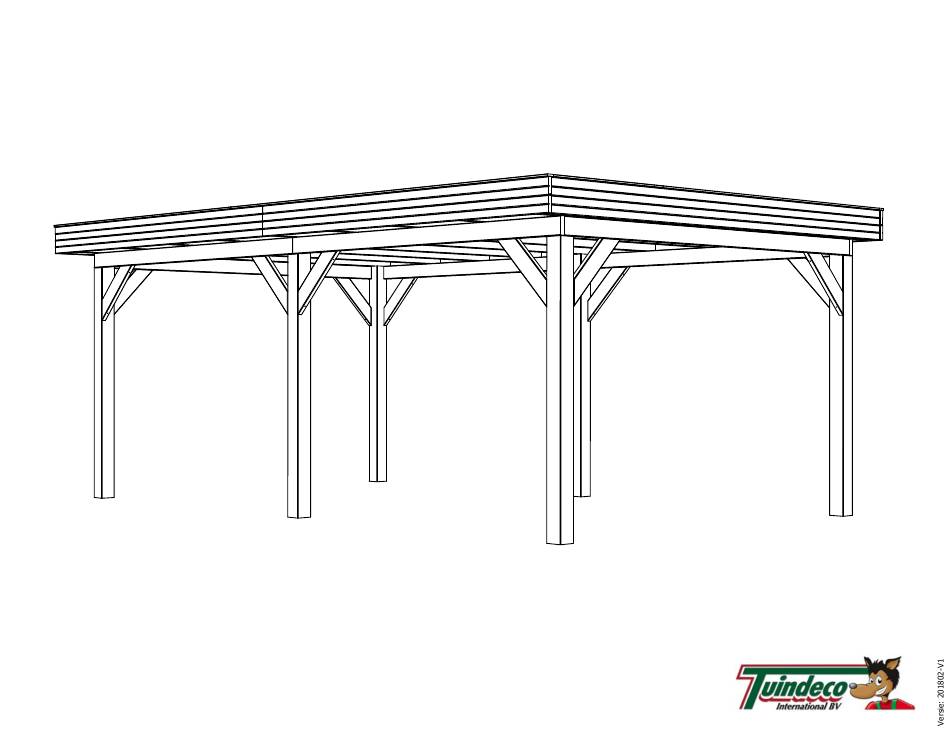

Montagehandleiding / Assembly instructions /
Montageanleitung / Les instructions d'installation
42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh)
pag. 1/14

Advertisement

loading
Need help?

Need help?

Do you have a question about the Platdak Oslo XL 42.7905 and is the answer not in the manual?

Questions and answers

Related Manuals for Tuindeco Platdak Oslo XL 42.7905

Summary of Contents for Tuindeco Platdak Oslo XL 42.7905

  • Page 1 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 1/14...
  • Page 2 A1=145x145x2445 (4x) T1=6x160 (48x) A2=145x145x2445 (2x) B1=45x145x3198 (4x) T2=6x100 (26x) B2=45x145x3680 (2x) S1=6x100 (30x) B3=45x145x750 (12x) S2=6x80 (122x) C1=45x160x4220 (6x) S3=6x60 (26x) C2=45x160x4220 (2x) S4=5x40 (600x) C3=45x160x4220 (1x) C4=45x160x150 (14x) Optie 2 / Option 2: SP1= 6 (1x) 18x165x4908 (27x) 18x165x1783 (27x) D1=18x165x3346 (54x) SP2= 20 (1x)
  • Page 3 Oslo XL 6800x4300 Oslo XL 6800x4300 + plus 1x uitbreidingsset/ enlargement/ ausbau/ ensemble d'extension 1265 Oslo XL 6800x4300 + plus 2x uitbreidingsset/ enlargement/ ausbau/ ensemble d'extension 1303 pag. 3/14...
  • Page 4 6x60 Beton/Concrete Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 4/14...
  • Page 5 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 5/14...
  • Page 6 T2 (TX30) T2 (TX30) DETAIL A SP1- 6 B2 (2x) 3680 B1 (4x) 3198 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 6/14...
  • Page 7 DETAIL B T1 (TX30) Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 7/14...
  • Page 8 4220 SP2- 20 S1 (TX30) SP1- 6 DETAIL D SP3- 3,5 DETAIL C 3898 2600 1300 C2 (2x) 4220 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 8/14...
  • Page 9 T1 (TX30) DETAIL E DETAIL F SP2- 20 SP1- 6 3130 3130 DETAIL E 3998 C3 (1x) 4220 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 9/14...
  • Page 10 C1 C1 T1 (TX30) C1 C1 DETAIL G SP2- 20 SP1- 6 DETAIL G 4048 C1 (6x) 4220 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 10/14...
  • Page 11 SP3- 3,5 S4 (TX25) DETAIL H Optie 2 / Option 2 DETAIL I Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 11/14...
  • Page 12 S2 (TX30) SP3- 3,5 DETAIL J S2 (TX30) DETAIL K Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 12/14...
  • Page 13 Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 13/14...
  • Page 14 S4 (TX25) Montagehandleiding / Assembly instructions / Montageanleitung / Les instructions d'installation 42.7905 - Platdak Oslo XL 6800x4300x2700 mm (bxdxh) pag. 14/14...
