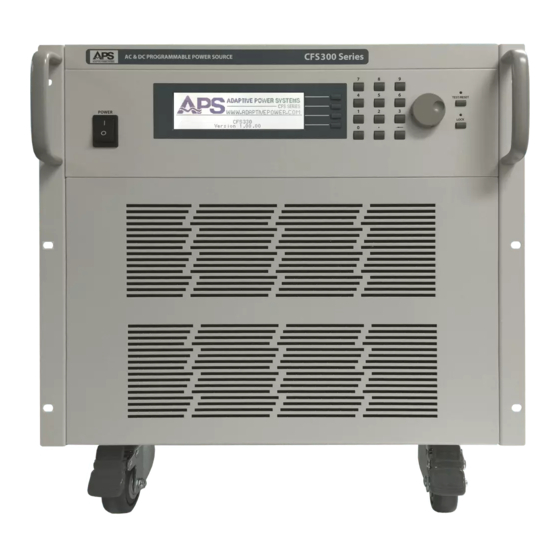

APS CFS300 Series Operation Manual

Programmable ac & dc power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Operation Manual
CFS300 Series – Rev 1.12
Programmable AC & DC Power
–
Copyright  2016, Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
P/N 160952-10
CFS300 Series
Supply
TM
ADAPTIVE Power Systems
Worldwide Supplier of Power Equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFS300 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for APS CFS300 Series

Summary of Contents for APS CFS300 Series

  • Page 1 CFS300 Series – Rev 1.12 P/N 160952-10 CFS300 Series Programmable AC & DC Power Supply – ADAPTIVE Power Systems Worldwide Supplier of Power Equipment Copyright  2016, Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.
  • Page 2 PAGE LEFT INTENTIONALLY LEFT BLANK FOR HARDCOPY VERSIONS OF THIS DOCUMENT  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 2 of 156...

  • Page 3: Table Of Contents

    AC Input Connections ..........................41 Grounding Requirements ........................41  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 3 of 156...
  • Page 4 Results Display Mode Settings ......................... 73  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 4 of 156...
  • Page 5 Parameter Setup Command and Query Syntax ................115  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 5 of 156...
  • Page 6 11 CE MARK Declaration of Conformity..................152 Index ............................. 153  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 6 of 156...
  • Page 7 Table 10-2: LAN Option Interface Command Wait Times .................. 142  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 7 of 156...
  • Page 8 Figure 11-1: DC Offset Measurement ......................... 145  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 8 of 156...

  • Page 9: Contact Information

    Fax: +86-21-5763-8240 Email: support@adaptivepower.com Web: http://www.adaptivepower.com  Entire Contents Copyright 2014 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 9 of 156...

  • Page 10: Front Matter

     Entire Contents Copyright 2014 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 10 of 156...
  • Page 11 Caution: Refer to this manual before using this Product. Caution, risk of electric shock  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 11 of 156...

  • Page 12: Safety Notices

    Do not operate the instrument in the presence of flammable gases or fumes.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 12 of 156...
  • Page 13  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 13 of 156...

  • Page 14: Product Overview

    Dual voltage ranges in both modes •  Entire Contents Copyright 2014 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 14 of 156...
  • Page 15 USB and RS232 remote control interfaces • Remote Interlock •  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 15 of 156...

  • Page 16: Operating Modes

    Voltage DC (Volts), Current DC (Amps) and True Power (Watt)  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 16 of 156...

  • Page 17: Voltage Programming

    MANUAL mode or as part of a program memory step in PROGRAM mode.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 17 of 156...

  • Page 18: Current Protection Modes

    OC Fold = OFF Disables voltage fold back mode  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 18 of 156...

  • Page 19: Voltage & Current Output Profiles

    (AC or DC), and voltage range (high (300Vac/420Vdc) or low (150Vac/210Vdc)).  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 19 of 156...

  • Page 20: Cfs330 Ac Mode, Single Phase Output Vi Curve

    Figure 4-2: CFS330 1 Phase Output-AC-VI_Curve-300V_Range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 20 of 156...

  • Page 21: Cfs330 Ac Mode, Three Phase Output Vi Curve

    Figure 4-4: CFS330 1 Phase Output-AC-VI_Curve-300V_Range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 21 of 156...

  • Page 22: Cfs330 Dc Mode Vi Curve

    Figure 4-5: CFS330-DC-VI_Curve-210V_Range Figure 4-6: CFS330-DC-VI_Curve-420V_Range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 22 of 156...

  • Page 23: Cfs360 Ac Mode, Single Phase Output Vi Curve

    Figure 4-8: CFS360 1 Phase Output AC-VI_Curve-300V_Range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 23 of 156...

  • Page 24: Cfs360 Ac Mode, Three Phase Output Vi Curve

    Figure 4-10: CFS360 3 Phase Output AC-VI_Curve-300V_Range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 24 of 156...

  • Page 25: Cfs360 Dc Mode Vi Curve

    Figure 4-11: CFS360-DC-VI_Curve-210V_Range Figure 4-12: CFS360-DC-VI_Curve-420V_Range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 25 of 156...

  • Page 26: Technical Specifications

    ± 0.03% Setting Range 0 - 359°  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 26 of 156...

  • Page 27: Dc Output

    ± ( 2.0% Setting + 0.2 A )  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 27 of 156...

  • Page 28: Metering - Ac Mode - Single Phase Mode

    See Three & Two Phase Mode  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 28 of 156...

  • Page 29: Metering - Ac Mode - Three & Two Phase Mode

    100 - 1300 VAR 200 - 2600 VAR  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 29 of 156...

  • Page 30: Metering - Dc Mode

    Amplifier Shutdown (A-SH) Test/Reset LED blinks.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 30 of 156...

  • Page 31: Ac Input

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 31 of 156...

  • Page 32: Ac Input Power Vs Ac Output Power - Model Cfs330

    Figure 5-2: AC Input Power vs AC Output Power – Model CFS360  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 32 of 156...

  • Page 33: System Parameters

    Cycles: 0 – 9999, 0 = Continuous  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 33 of 156...

  • Page 34: Interface And I/O

    10 - 55 Hz, 1 minute, 2 G XYZ Shock < 20 G  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 34 of 156...

  • Page 35: Safety & Regulatory

    Conformity” at the end of this manual.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 35 of 156...

  • Page 36: Unpacking And Installation

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 36 of 156...

  • Page 37: Unpacking

    To remove a CFS300, two persons MUST be used at all times.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 37 of 156...
  • Page 38 Place the unit on the intended staging surface, usually a bench or table.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 38 of 156...

  • Page 39: Ship Kits

    Figure 6-3: CFS330 Ship Kit Content  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 39 of 156...

  • Page 40: Cfs360 Ship Kit Contents

    Figure 6-4: CFS360 Ship Kit Content  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 40 of 156...

  • Page 41: Ac Input Connections

    Correct grounding of your electrical system infrastructure according to applicable national standards must be observed.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 41 of 156...

  • Page 42: Check Line Voltage

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 42 of 156...

  • Page 43: Cfs330 Ac Input Connections

    Ø 1.63 mm Surface Copper 2.08 mm  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 43 of 156...

  • Page 44: Cfs360 Ac Input Connections

    Figure 6-6: CFS360 AC Input Terminal Location  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 44 of 156...

  • Page 45: Available Cfs360 Ac Input Configurations

    Table 6-3: AC Input Shorting Bar Configurations  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 45 of 156...

  • Page 46: Recommend Ac Input Wire Gauges

    ・Please ensure that no liquid is allowed to penetrate this product.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 46 of 156...

  • Page 47: Powering Up

    Adaptive Power Systems or its authorized representative to arrange for service.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 47 of 156...

  • Page 48: Output Terminals

    Figure 6-8: CFS300 Series Output Terminals  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 48 of 156...

  • Page 49: Output Load Connection Configurations

    Table 6-7: CFS360 Output and Sense Wire Size Table  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 49 of 156...

  • Page 50: Voltage Sense Modes

    Figure 6-9: External Voltage Sense Terminal Block Location  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 50 of 156...

  • Page 51: Connecting A Uut

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 51 of 156...

  • Page 52: Rear Panel Controls And Connectors

    Table 6-8: CFS300 Series Rear Panel Callouts  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 52 of 156...

  • Page 53: Remote Output Interface

    Table 6-10: Remote Input DB9 Pins and Functions  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 53 of 156...

  • Page 54: Remote Memory Selection

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 54 of 156...

  • Page 55: Remote Control Programming Interfaces

    Handshaking Lines DTR (PIN 4,), DSR (PIN 6)  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 55 of 156...

  • Page 56: Usb Interface

    The 9-pin D- type subminiature connector labeled “RS232” is the same as covered in Section 6.16.1, "RS232 Serial Interface”.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 56 of 156...

  • Page 57: Gpib Interface (Special Order)

    Table 6-14: IEEE-488 Connector Pin Assignments  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 57 of 156...

  • Page 58: Control Commands

    When a string or command has been sent, it must be terminated by a Linefeed character (0x0A), for example ”TEST”+LF.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 58 of 156...

  • Page 59: Front Panel Operation

    To return to the top of the main menu, press “<top>” soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 59 of 156...
  • Page 60 To see the second group of soft keys which is the same as in PROGRAM mode, press the “<more>” soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 60 of 156...

  • Page 61: Front Panel Layout

    Table 7-1: Front Panel Controls and Indicators  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 61 of 156...

  • Page 62: Led Status Indications

    Note: If the front panel is locked (LOCK is set to ON), the shuttle knob is disabled.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 62 of 156...

  • Page 63: Setup Screen Readouts

    Table 7-3: Setup (Set) Screen Display Fields Description  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 63 of 156...

  • Page 64: Main Menu Soft Keys

    As sample of the two top level screens is shown below.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 64 of 156...

  • Page 65: Lower Level Menu Soft Keys

    Table 7-5: Available Soft Key Labels  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 65 of 156...

  • Page 66: Password Protection

    Assignment or Change” or disabled by setting it to zero (0).  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 66 of 156...

  • Page 67: Operating Mode - Selecting

    Figure 7-2: PROGRAM MODE LCD indicator  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 67 of 156...

  • Page 68: Figure 7-3: Manual Mode Lcd Indicator

    Figure 7-4: DC MODE LCD Indicator  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 68 of 156...

  • Page 69: Program Mode Operation

    Volt Sense • • Ext Trig.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 69 of 156...

  • Page 70: Auto Run Mode Selections

    The same screen can be selected using the “Next” soft key if needed.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 70 of 156...

  • Page 71: Single Step Modes

    0 to 9 with 0 being OFF and 9 being loudest.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 71 of 156...

  • Page 72: Lcd Contrast

    When the Enter soft key is pressed the “Power UP” Mode is accepted and you transition into the next system parameter.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 72 of 156...

  • Page 73: Loop Cycle Settings

    “Exit” soft key in order to proceed.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 73 of 156...

  • Page 74: Over Current Fold Mode Settings

    See Section 0, “  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 74 of 156...

  • Page 75: Memory Lock Mode Settings

    See Section 0, “  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 75 of 156...
  • Page 76 Mem Lock mode is accepted and you transition into the next system parameter.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 76 of 156...

  • Page 77: Voltage Sense Mode Settings

    Prev or Next soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 77 of 156...

  • Page 78: Function Settings (Output Phase Mode)

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 78 of 156...

  • Page 79: Program Mode - Using Memories And Steps

    ∨ soft key to scroll one line at a time. (Shuttle cannot be used to scroll). Once the  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 79 of 156...

  • Page 80: Assigning A Name To A Memory Location

    The numeric keypad may also be used to insert numbers 0 through 9 as part of the memory name.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 80 of 156...

  • Page 81: Selecting A Program Step

    After the 9th step you will return to step number 1.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 81 of 156...

  • Page 82: Program Step Parameters Available

    Available range is 0°-359° in 1° steps.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 82 of 156...
  • Page 83 When this level is exceeded, a failure will occur.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 83 of 156...

  • Page 84: Table 7-6: Program Mode Step Parameters Available

    Table 7-6: PROGRAM Mode Step Parameters Available  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 84 of 156...

  • Page 85: Editing Step Parameters

    "Next" soft keys to move to the previous or next parameter set screen.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 85 of 156...

  • Page 86: Program Mode - Step Parameter Details

    “Prev” or “Next” soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 86 of 156...

  • Page 87: Memory Cycles

    MANUAL mode. Available voltage settings are:  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 87 of 156...

  • Page 88: Frequency Programming

    “Prev” or “Next” soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 88 of 156...

  • Page 89: Measurement Limits Programming

    “Prev” or “Next” soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 89 of 156...

  • Page 90: Time Duration Programming

    Figure 7-5: Step Time Parameters Relationship  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 90 of 156...

  • Page 91: Transient Programming

    Duration of the voltage transient in msecs. Note that the range for this parameter is 0.5-999.9 msec.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 91 of 156...

  • Page 92: Table 7-8: Programmed Voltage Drop Example Settings

    Table 7-8: Programmed Voltage Drop Example Settings  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 92 of 156...

  • Page 93: Figure 7-6: Programmed Voltage Transient Example Waveform

    Figure 7-6: Programmed Voltage Transient Example Waveform  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 93 of 156...

  • Page 94: User Prompt Programming

    “Prev” or “Next” soft key.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 94 of 156...

  • Page 95: Step Cycle Programming

    “Enter” soft key. To cancel the editing of the step mode press the “Esc”  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 95 of 156...

  • Page 96: Reviewing Test Results

    Press the Exit soft key to move back to the set screen  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 96 of 156...

  • Page 97: Program Mode Execution

    The reverse  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 97 of 156...

  • Page 98: Cycle Display Mode

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 98 of 156...

  • Page 99: Triggering A Voltage Transient

    After the transient, program execution will continue normally.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 99 of 156...

  • Page 100: End Of Test Status

    When done, press the “Exit” soft key to return to the regular setup screen.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 100 of 156...

  • Page 101: Manual Ac Mode Operation

    Section 6.12, “PROGRAM Mode - Step Parameter Details”.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 101 of 156...

  • Page 102: Manual Ac Mode Execution

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 102 of 156...
  • Page 103 “Trig.” soft key will cause the Voltage surge or drop to be executed. A beep will sound when pressed.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 103 of 156...

  • Page 104: Manual Dc Mode Operation

    Section 6.12, “PROGRAM Mode - Step Parameter Details”.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 104 of 156...

  • Page 105: Manual Dc Mode Execution

    DC mode system screen.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 105 of 156...

  • Page 106: Remote Control Programming

    IDE used (i.e. LabView, Visual C# etc).  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 106 of 156...

  • Page 107: Syntax Notation Convention

    <> - Parameter Value: Indicates a numeric value.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 107 of 156...

  • Page 108: Test Control Command And Query Syntax

    Table 8-1: Test Control Command and Query Summary  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 108 of 156...
  • Page 109 Queries the reactive power value being displayed while a test is in process.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 109 of 156...
  • Page 110 Generates an external trigger pulse based on SYNC event setting.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 110 of 156...

  • Page 111: Split Phase Mode Commands

    Read the selected total (L1-L2) meter values while a test is in process. RDL1N XX?  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 111 of 156...
  • Page 112 Read the total (L1-L2) results once a test has completed.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 112 of 156...

  • Page 113: Three Phase Mode Commands

    AC Program mode and AC Manual mode.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 113 of 156...

  • Page 114: Measurement Commands - 3 Phase

    TDE-VA? Testing VA meter See Note3-1  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 114 of 156...

  • Page 115: Parameter Setup Command And Query Syntax

    Return Apparent Power Low Limit See Section 5 for range  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 115 of 156...

  • Page 116: Table 8-2: Parameter Setup Command And Query Summary

    Table 8-2: Parameter Setup Command and Query Summary  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 116 of 156...

  • Page 117: System Command And Query Syntax

    0=OFF, 1=START, 2=EVENT SSI? Returns SYNC mode setting  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 117 of 156...

  • Page 118: Ieee488.2 Common Commands

    BIT 5, 20H,(32) Standard Event (ESB)  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 118 of 156...

  • Page 119: Idn

    TRUE.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 119 of 156...

  • Page 120: Esr

    The query version of this command returns the power-on status clear setting. Returns 0 or  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 120 of 156...

  • Page 121: Usb Driver Installation

    (actual revision number may be higher than shown here) CDM21216_Setup  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 121 of 156...
  • Page 122 6. Follow the on-screen prompts shown below to complete the driver installation.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 122 of 156...
  • Page 123 Read and accept user license by checking the “I accept this agreement” radio button at the bottom.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 123 of 156...
  • Page 124 11. Select the relevant COM port and set Bit per second (baud rate) to the same setting the as the power source.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 124 of 156...
  • Page 125 12. You should now be able to communicate with the power source through the COM port number assigned.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 125 of 156...

  • Page 126: Lan Interface Configuration

    The MAC Address of the Power source LAN option card can be found in the LAN Setup screen. Refer to Section 10.4.6, “MAC Address”.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 126 of 156 PN 160952-10...
  • Page 127 Dynamic Host Configuration Protocol (DHCP) server.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 127 of 156...

  • Page 128: Lan Option Setup Menu

    IP Address from the server upon power up as covered in paragraph  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 128 of 156...

  • Page 129: Manual Ip Address Setting

    Gateway IP manually.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 129 of 156...

  • Page 130: Subnet Mask Setting

    Device Name does not start with a letter, the following error message will be displayed:  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 130 of 156...

  • Page 131: Mac Address

    Your IT administrator may be asking the end user for this information.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 131 of 156...

  • Page 132: Establishing Lan Connection Using Ni Max Explorer

    “Devices and Interfaces” as shown below.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 132 of 156...
  • Page 133 This will bring up a dialog box that may be used to set up a VISA TCP connection to the power source.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 133 of 156 PN 160952-10...
  • Page 134 11 or LXI device detection protocols. Select the “Manual Entry of Raw Socket as indicated below.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 134 of 156 PN 160952-10...
  • Page 135 The LAN socket port number for the CFS Series is fixed to 10001 and must be entered under Port Number.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 135 of 156 PN 160952-10...
  • Page 136 “CFS300 AC”  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 136 of 156...
  • Page 137 Use this resource file in your program source code or IDE.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 137 of 156...
  • Page 138 To test the VISA connection, open the VISA test panel as shown below.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 138 of 156...
  • Page 139 In the Template tab change Attribute to: VI_ATTR_TERMCHAR and click on “execute”.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 139 of 156...
  • Page 140  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 140 of 156...

  • Page 141: Lan Interface Specific Commands And Queries

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 141 of 156...

  • Page 142: Ethernet Setting Commands Wait Times

    Table 10-2: LAN Option Interface Command Wait Times  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 142 of 156...

  • Page 143: Calibration

    3. Set the DVM to measure DCV.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 143 of 156...
  • Page 144 TEST/RESET button.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 144 of 156 PN 160952-10...

  • Page 145: Figure 11-1: Dc Offset Measurement

    7. Adjust VR3 on the ANGAC300 board so that the DVM measures “0” volts +\- 20mV.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 145 of 156...
  • Page 146 This completes the verification process.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 146 of 156 PN 160952-10...

  • Page 147: Software Calibration Procedure

    12 Ohm, 9Adc & 4 Ohm, 28Adc  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 147 of 156...

  • Page 148: Software Calibration Procedure

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 148 of 156...

  • Page 149: Voltage: 300.0V Calibration

    Current xx.xA. If you press the Esc soft key you will be returned to the calibration mode screen  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 149 of 156 PN 160952-10...

  • Page 150: High & Low Current Range Calibration

     Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 150 of 156...

  • Page 151: Exiting Calibration Mode

    On/Off switch so the unit returns to normal operation mode.  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 151 of 156...

  • Page 152: Ce Mark Declaration Of Conformity

    Mark of Compliance, LVD  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 152 of 156 PN 160952-10...

  • Page 153: Index

    LAN Configuration ............126  Entire Contents Copyright 2016 by Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS. APS CFS300 Series Power Source Operation Manual Page 153 of 156 PN 160952-10...
  • Page 156 ADAPTIVE Power Systems Worldwide Supplier of Power Equipment Copyright  2016, Adaptive Power Systems, Inc. (APS) • All Rights Reserved • No reproduction without written authorization from APS.

Table of Contents
