Anchor Navi-Trac Assembly Instructions

7701 Highway 41 N.
Evansville, Indiana 47725
6
5
14
A

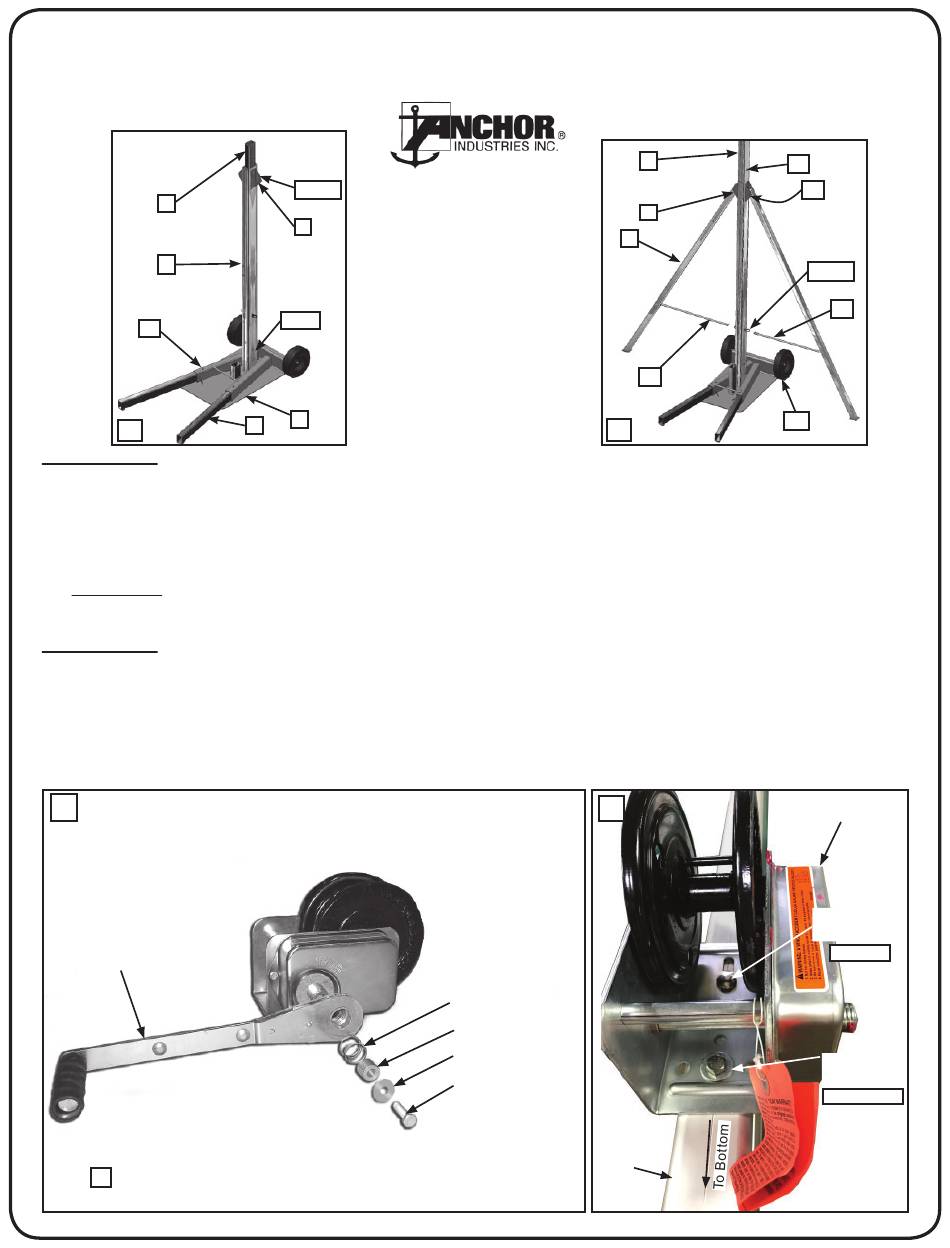

See Image "A"
1. Attach the lower end (2-hole pattern) of the Bottom Post (#5) to the rear most splice stub of the Base Weldment (#1) using Hex
Hd Cap Screw & Nut (#9 & 10). The single, centered channel of the post should face forward.
2. Insert the Leg Inserts (#2) and pin with (#14).
3. The Turf Wheels (#21) have been pre-installed.
4. One at a time, remove the bolts & nuts (#10 & 16) holding the splice at the top of the Bottom Post (#5) install the Hinges for
Brace (#8) on each side of the bottom post. Secure the hinges by replacing the same hardware (10 & 16).
See Image "B"
5. Install the Brace Weldments (#4) to the Brace Hinges (#8) on both sides of the bottom post (use tension lock pin #15) at the
brace hinge (#8).
6. Lean the Frame Lift over, as needed, to slide the Top Post (#7) onto the Splice of the bottom post and secure (tension lock pin
#15).
7. To limit the spread of the Brace Weldments, install Eyes (#12 & 13) into the bottom post and attach the snap with web (#18)
between the brace and the bottom post.
C
Handle

Winch Assembly

24
EC5557
Assembly Instructions
Navi-Trac Tent Jack
10,16
8
9,10
1
2
For warnings, maintenance and
replacement parts, refer to the
Dutton-Lainson booklet that is
shipped with this winch (the B1500)
4
B
D
Spring
Shaft Extension
Washer
Bolt
Bottom
Post
Phone: 812-867-2421
Fax: 812-867-1429
Web: www.anchorinc.com
7
Loose
15
15
8
12,13
11
21
Winch Assembly
Carriage Bolt
(under wheel)
18
29 & 26
Hex Bolt w/
washer
25, 30 & 26
NTTJ 919
