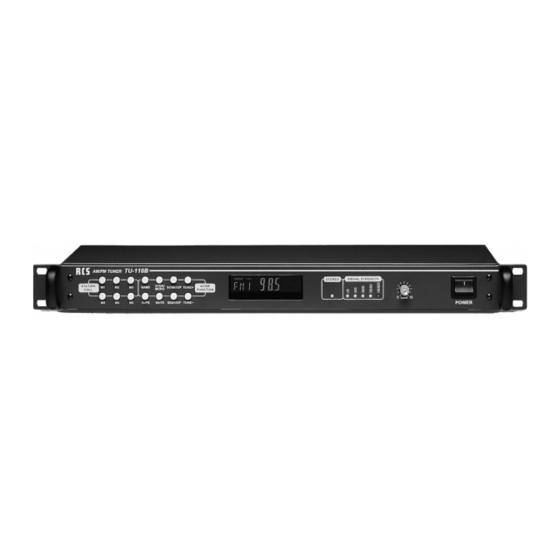

- Page 1 TU-110B 19˝-TUNER - ENGLISH OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG - DEUTSCH...
-
Page 2: Safety Instruction
19˝-TUNER TU-110B CAUTION / ACHTUNG Caution: to reduCe the risk of eleCtriC shoCk do not remove Cover (or BaCk) no user-serviCeaBle parts inside refer ser- viCiing to qualified personnel. aChtung: Zur vermeidung von stromsChlägen gehäuseaB- deCkung oder rüCkseite niCht entfernen. keine vom Benut- Zer Wartenden teile im inneren. -
Page 3: Block Diagram / Blockschaltbild
TU-110B CONTENT CONTENTS / INHALT TU-110B GENERAL REFERENCES / Allgemeine HinWeiSe ......... . - Page 4 FEATURES TU-110B DESCRIPTION BESCHREIBUNG The TU-110B FM-AM tuner is incorporated in a stable 19˝ Der FM-AM Radiotuner TU-110B ist in einem stabilen housing which is 1 RU high. The stations are indicated on a 19˝-Gehäuse mit 1 HE eingebaut. Die Anzeige der Sender backlit digital display. erfolgt auf einem hintergrundbeleuchteten Digitaldisplay.
-
Page 5: Band Button
TU-110B FRONT PANELS FRONT PANEL 1. M1 – M6 BUTTONS Directly access the preprogrammed station within the se- lected frequency band. It performs preset memory read/write function. • WRITE Operation One of the M1 ~ M6 button is pressed for more than 2 seconds, current frequency is stored to corresponding memory area. • R EAD Operation One of the M1 ~ M6 button is pressed for less than 2 seconds, read the corresponding preset memory. • W hen write operation, it performs 0,5 sec. mute opera- tion. -
Page 6: Front Panel
FRONT PANEL TU-110B 3. A/PS BUTTON (AME/PSCAN) Preset memory scan auto score memory button. • W hen A/PS button is pressed for less than 1 sec. it performs preset memory scan function. • W hen A/PS button is pressed for more than 1 sec. it performs auto store memory function. 1) Preset memory scan function descriptions R eading preset memory in regular frequency for 5 se- conds each. -
Page 7: Tune"+" Button
TU-110B FRONT PANEL 6. SCAN/UP BUTTON When SCAN/UP button is pressed, the frequency is scan up by one channel step with station detection. If a va- lid signal has detected, the current frequency is blinked each 500 m sec. within 5 seconds. If this case, SCAN/UP button is pressed, SCAN func- tion is released and the current frequency in maintained. When SCAN/UP button is not pressed with in blinking the frequency moves up by one channel step with station de- tection. 7. SEEK/UP BUTTON When any of SEEK/UP button is pressed, the frquency moves up by one channel step with station detection. -
Page 8: Rear Panel Controls
REAR PANEL TU-110B REAR PANEL CONTROLS 1. AC INLET SOCKET This is AC power cord socket. Please connect the power cord after main power switch „off“. 2. AC FUSE HOLDER This is AC fuse holder I MPORTANT NOTICE: When fuse is blown out, it should be replaced with the same type fuse like following table, if it continuous to blown out, stop replacing fuse and re- fer servicing to qualified person. -
Page 9: Antenna Terminals
8. ANTENNA TERMINALS FM: You can connect a 75ohm coaxial cable antenna to this terminal. AM: You can connect the AM loop antenna to this termi- nal. GND: Used as a grounding terminal for AM reception to protect the unit in a thunder storm and to reduce back- ground noise. TU-110B BLOCK DIAGRAM / BLOCKSCHALTBILD TU-110B... - Page 10 CONNECTION OF ANTENNAS TU-110B CONNECTION OF ANTENNAS AND VERBINDUNG zUM ANTENNEN- GROUND CABLE UND ERDUNGSKABEL 1. FM RECEIVNG ANTENNA (Fig.1-1) 1. FM EMPFANGSANTENNE (Fig.1-1) Der Empfang des FM-Funks kann in Tälern oder in der The electric wave of FM broadcasting is weakening in valleys, around buildings and in iron-reinforced buildings Umgebung von Häusern mit eingelassenen Metallge-...
-
Page 11: System Connections
TU-110B SYSTEM CONNECTIONS SYSTEM CONNECTIONS / SYSTEM ANSCHLUSSBEISPIEL RCS AUDIO-SYSTEMS... -
Page 12: Technical Data / Technische Daten
19˝-TUNER TECHNICAL DATA / TECHNISCHE DATEN TU-110B Tuning range / Empfangsbereich FM: 87.5 – 108 MHz AM: 522 – 1620 kHz Antenna Inputs / Antennen Eingänge FM: 75ohm coaxial cable AM: Loop antenna and lead antenna Usable Sensitivity / Nutzbare Empfindlichkeit FM: 2µV AM: 4.5µV Signal-to-noise ratio / Signal-Rauschabstand FM: 60 dB AM: 45 dB Memory Back-up / Speicherzeit 45 days (after AC Power Off) Power consumption / Leistungsaufnahme 7.3 W Power supply / Stromversorgung AC 120~230 V, 50 – 60 Hz...
